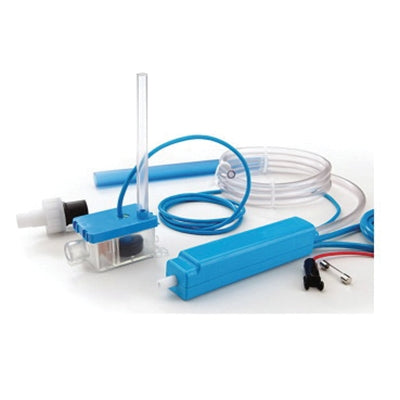

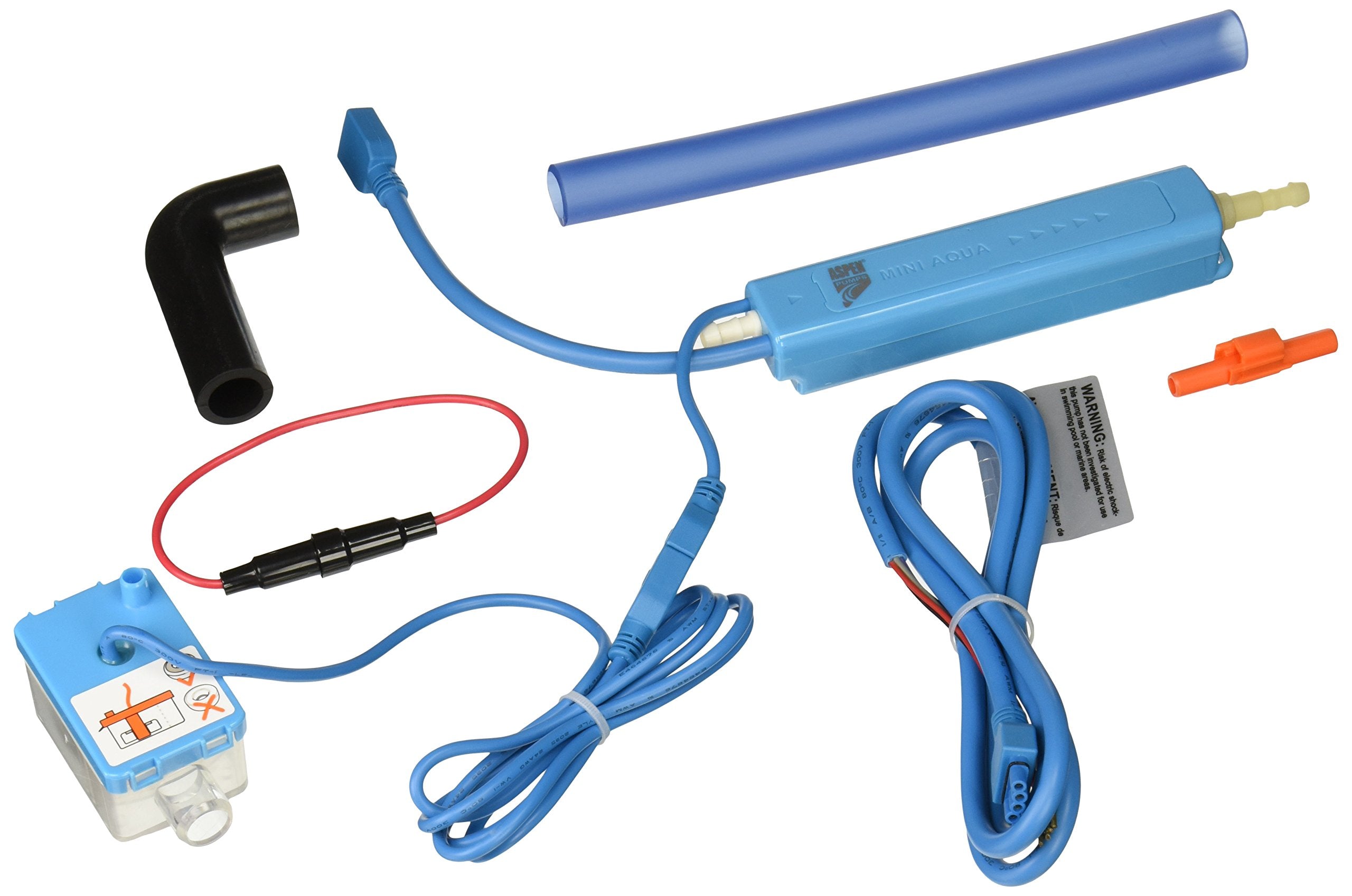

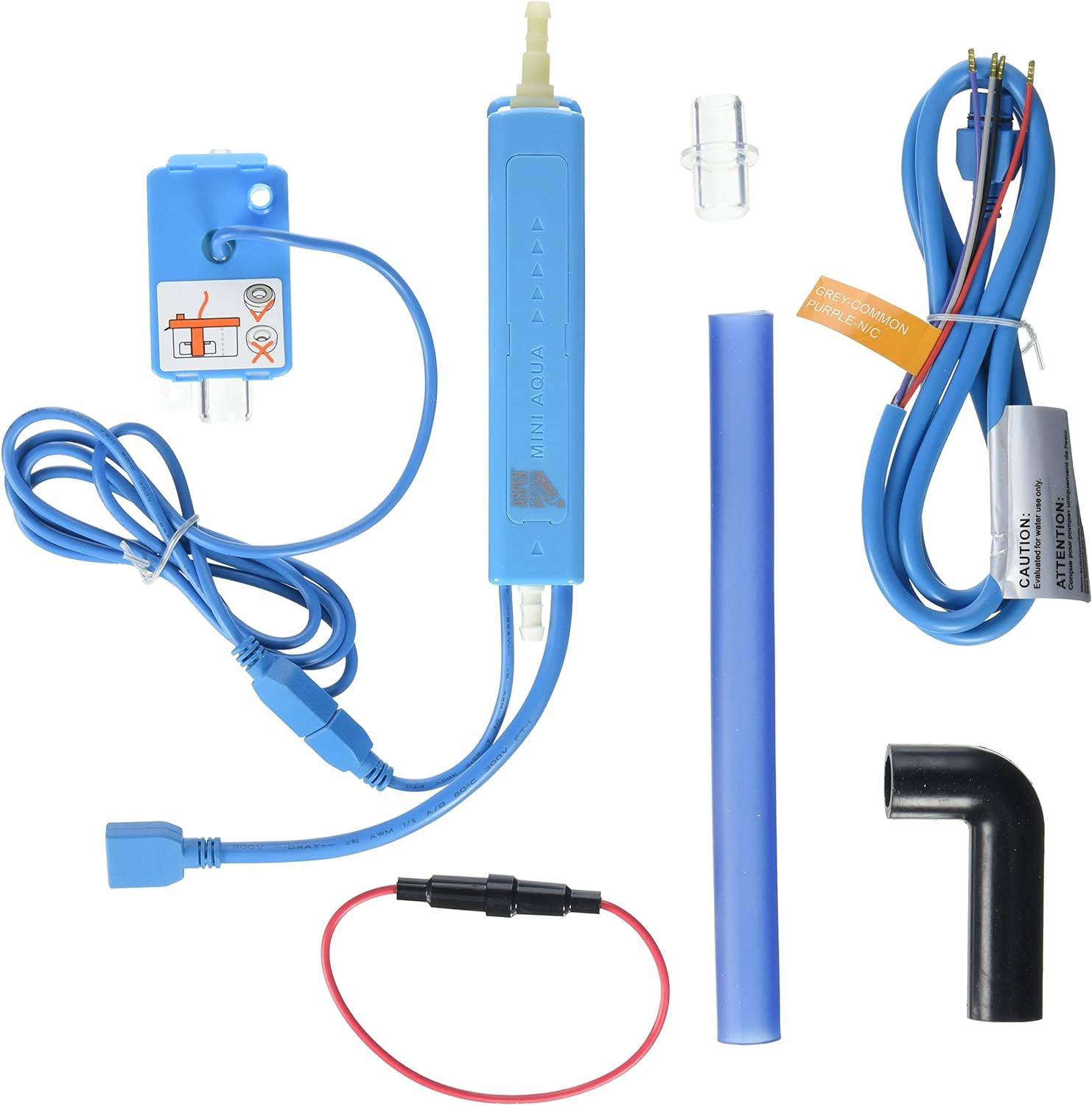

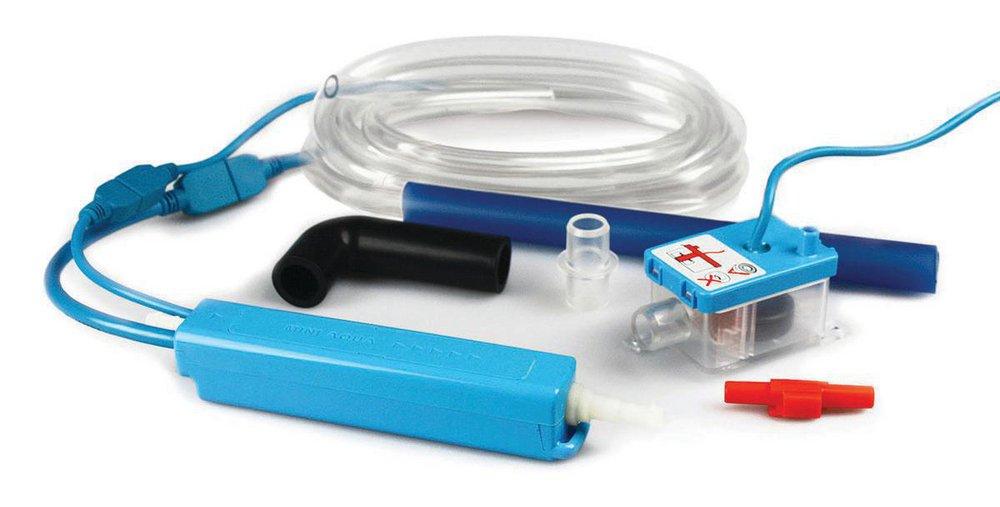

Rectorseal 83809 Aspen Mini Aqua Condensate Pump Kit 100-250V

Product Description

The Rectorseal 83809 Aspen Mini Aqua Condensate Pump Kit, designed for 100-250V systems, efficiently manages condensate in air conditioning systems.

• Ultra-slim profile for ease of installation in tight spaces.
• Self-priming, with a 3.3 ft maximum head and a flow rate of 3.2 gph.
• Features 3A NC dry contacts rated at 5A inductive at 230VAC.

Product Highlights

This compact pump kit is engineered to offer reliable performance with fully potted electronics to protect against moisture and dust, ensuring longevity and consistent operation. Ideal for both residential and commercial air conditioning systems, it supports installations in vertical applications thanks to its integral hanging loop and separate reservoir.

Product Information

Standard Information

• Voltage: 100 to 250 VAC
• Power: 16 watts

Technical Specifications

• Flow Rate: 3.2 gallons per hour
• Sound Level: 24 dB
• Temperature Range: Up to 104 deg F
• Amperage: 0.2 A
• Dimensions: 6-1/2 in L x 1-1/8 in W x 1-1/8 in H
• Weight: 1.43 pounds
• Material: Plastic
• Certifications: cCSAus Certified
