Rectorseal 83024 Mini-split Drain Hose Adapter

Product Description

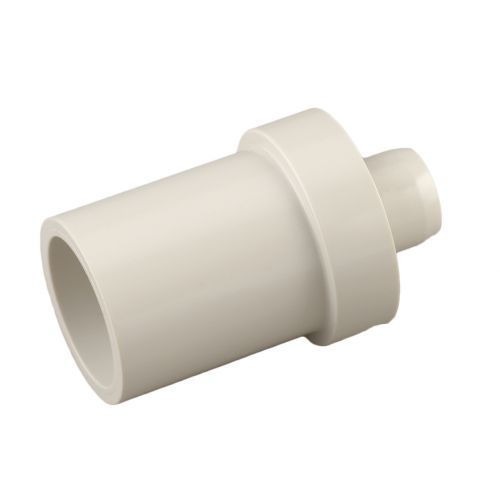

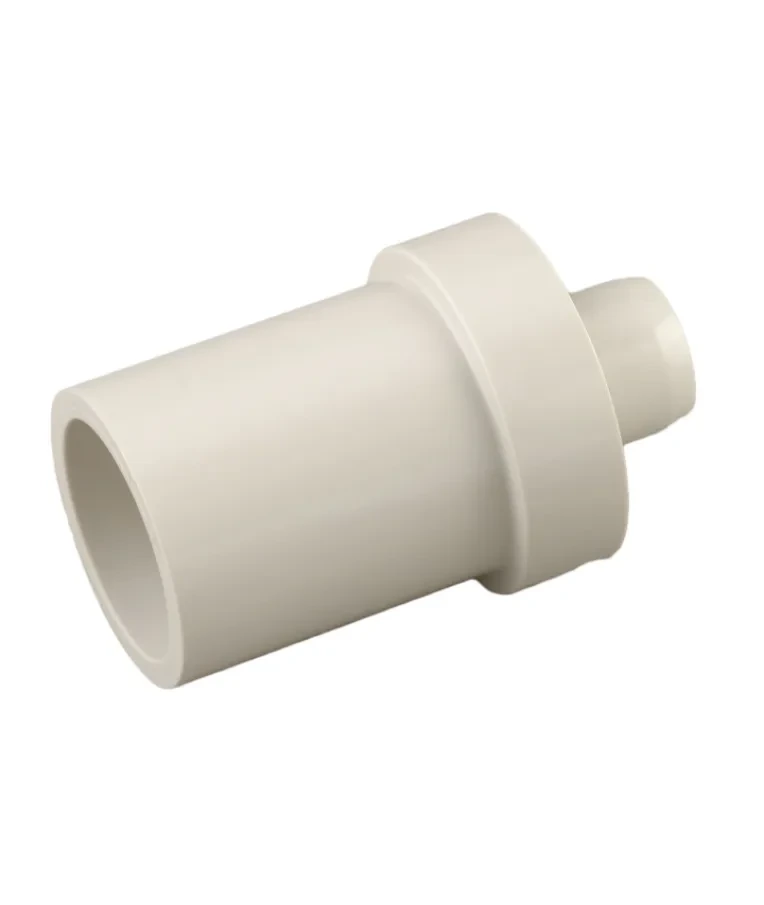

The RECTORSEAL 83024 is a mini-split condensate drain adapter designed to connect a 3/4-inch hose to a 3/4-inch PVC pipe in ductless mini-split systems. This fitting simplifies the condensate line transition from the flexible drain hose at the air handler to rigid PVC drain pipe. It is a compact, purpose-built adapter intended for installation by HVAC technicians during mini-split commissioning or service calls. The DSH-20NV designation identifies it within the RectorSeal drain fitting product line, and its straightforward barb-to-socket design keeps installation fast and leak-resistant.

This adapter is used in residential and light-commercial ductless mini-split installations where the indoor air handler produces condensate that must be routed to a drain. It fits into the condensate management portion of the refrigerant line set assembly, bridging the flexible 3/4-inch condensate hose common on mini-split indoor units to standard 3/4-inch schedule PVC drain pipe. It is well-suited for wall-mount, ceiling-cassette, and concealed-duct indoor unit installations.

Key Features

• Connects 3/4-inch condensate hose to 3/4-inch PVC pipe in a single fitting
• Designed specifically for ductless mini-split condensate drain applications
• Compact form factor fits within tight line-set chases and wall penetrations
• Compatible with standard schedule PVC drain pipe for straightforward integration
• Eliminates the need for field-fabricated adapters or reducers

Compatibility

Designed as an OEM-style condensate drain adapter for ductless mini-split systems using a 3/4-inch flexible drain hose and 3/4-inch PVC drain pipe.

Installation Notes

Installation is performed by a licensed HVAC technician as part of mini-split line set and drain line rough-in. Shut down and disconnect power to the indoor and outdoor units before working on the condensate drain assembly. Secure the hose connection with an appropriate clamp and solvent-weld or push-fit the PVC side per local plumbing code. Verify the completed drain line has adequate slope to allow free condensate flow and confirm there are no leaks before restoring power.

Technical Specifications

• Hose Connection Size: 3/4 inches
• PVC Pipe Connection Size: 3/4 inches
• Application: Mini-split condensate drain
• UPC: 4518301057730

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 83024
