Product Description

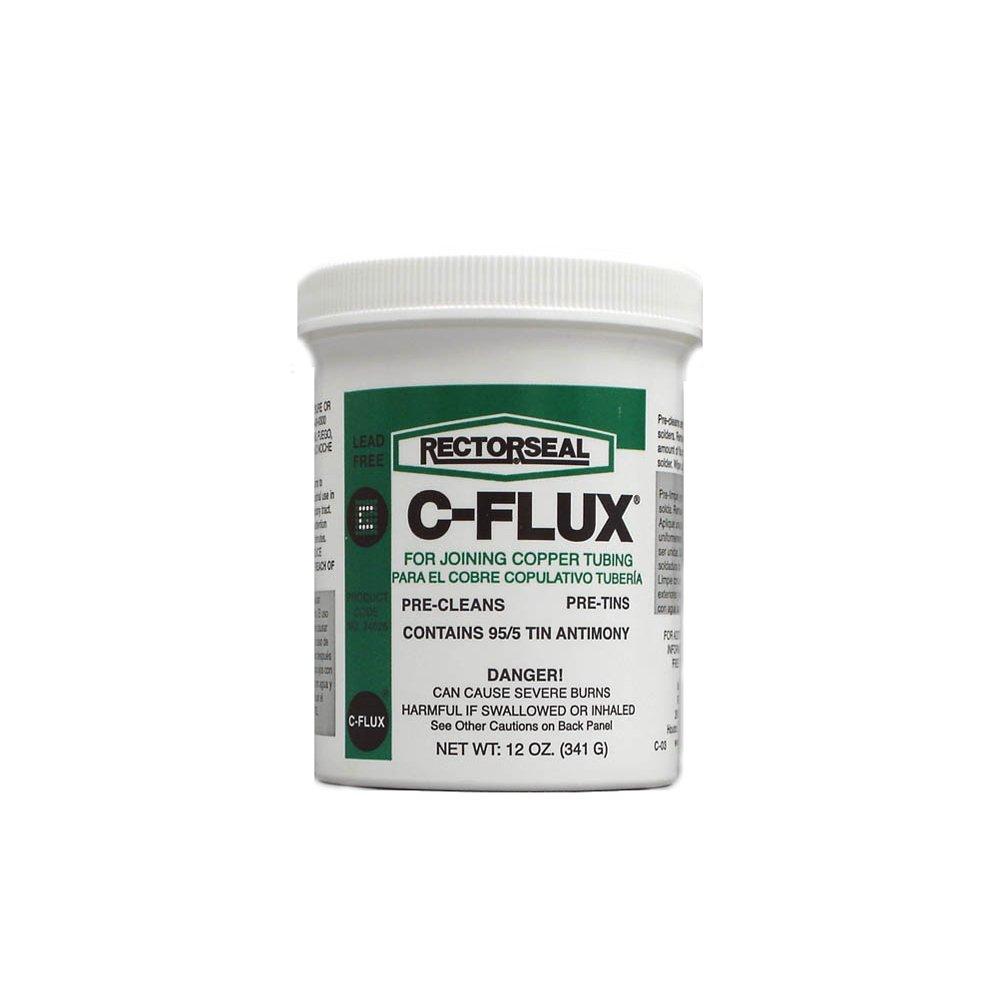

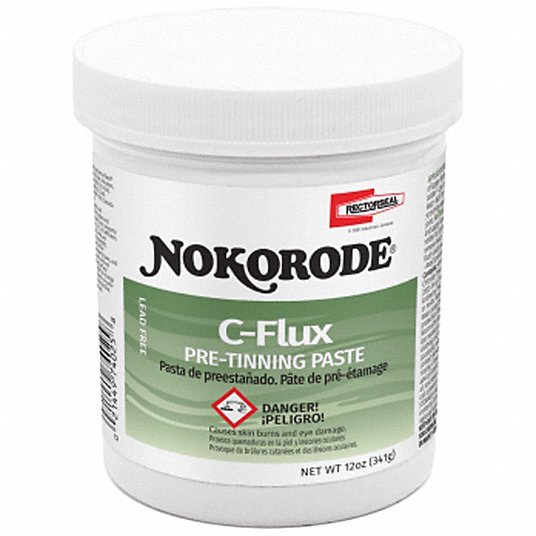

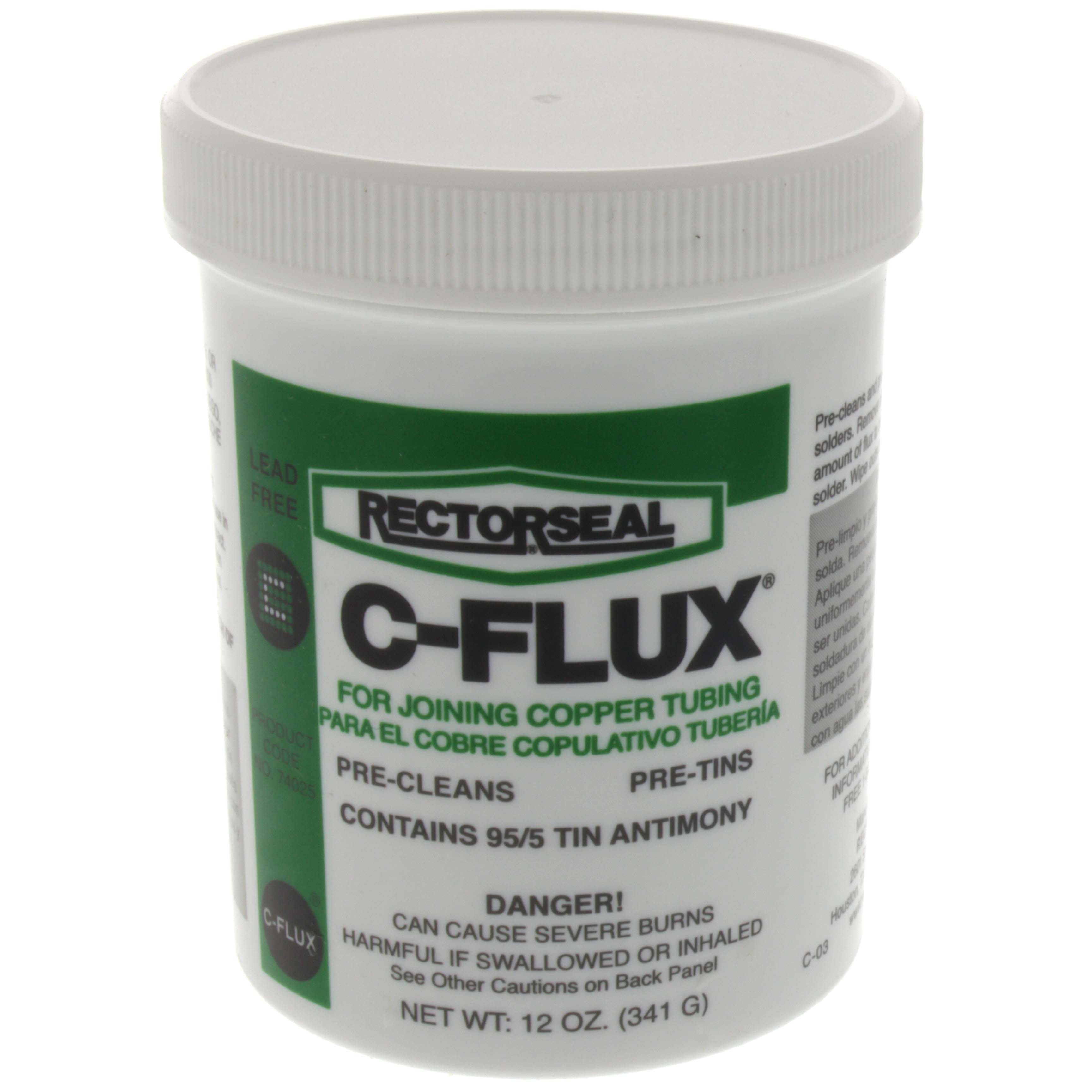

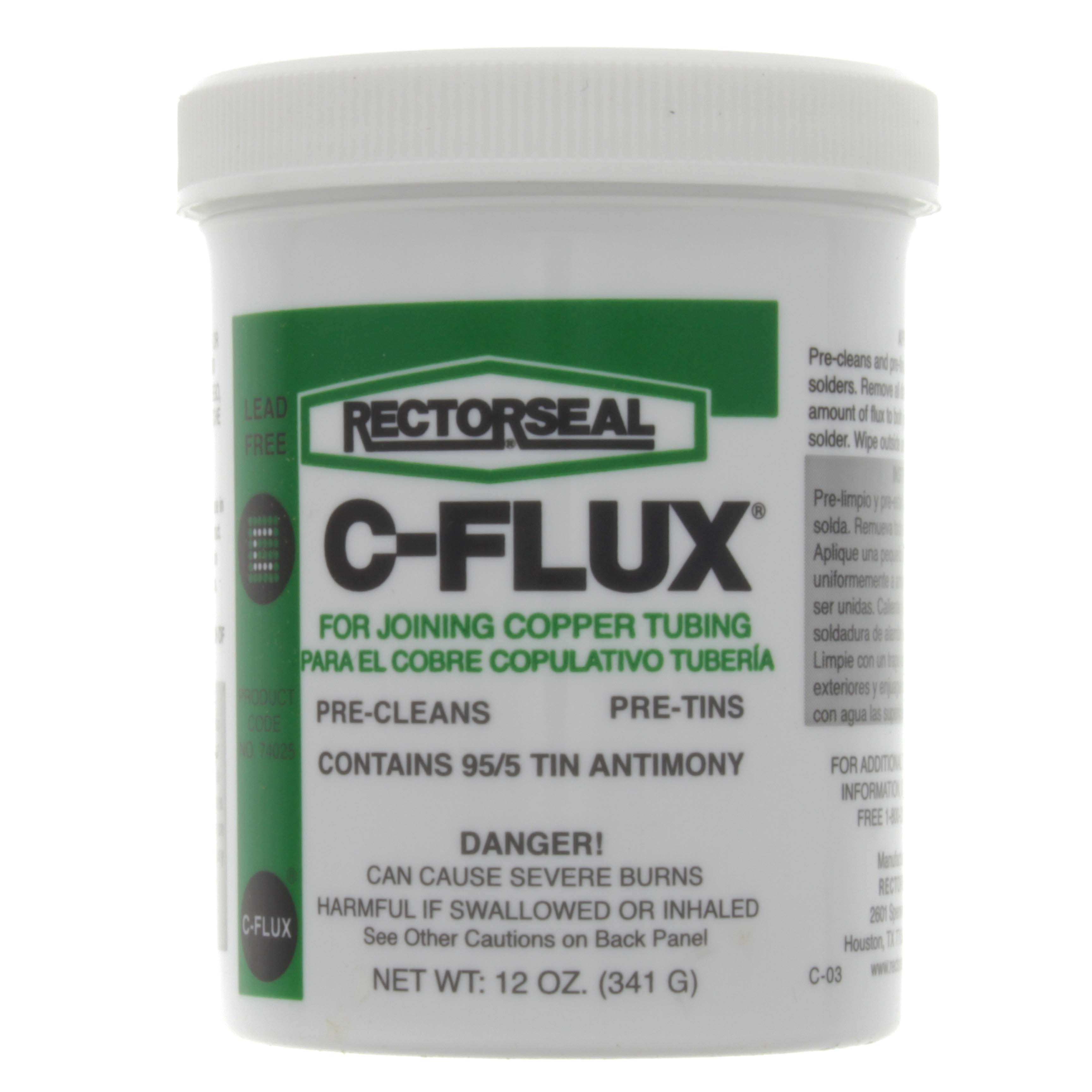

The RECTORSEAL 74025 12-Ounce C-Flux is designed for soldering and brazing applications. This soft soldering paste-type flux contains powdered solder, ensuring a leak-free joint. It cleans, fluxes, and pre-tins in one operation, saving time and money. Suitable for potable water systems and various solderable metals.
- Lead-free formula
- Suitable for copper, tin, zinc, nickel, and sheet lead
- Compliant with ANSI Z-87.1 and OSHA standards
Product Highlights
The RECTORSEAL C-Flux is a lead-free, soft soldering paste that cleans, fluxes, and pre-tins in one application.
Product Information
Standard Information
-
Brand: RECTORSEAL
-
Manufacturer Part Number: 74025
-
Country of Origin: United States
Technical Specifications
-
Color: Gray
-
Material: Plastic
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Unit^Instruction Guide
-
Type: Solders & Supplies > Fluxes
-
Specific Gravity: 1.59
-
Container: Jar
-
Capacity: 12 Ounce
-
Metal Used On: Copper, Tin, Zinc, Nickel, Sheet Lead
-
Compliant Specification: ANSI Z-87.1, OSHA
-
Application: Potable Water System
-
Lead-Free: True
-
Flash Point: Greater than 230 Deg F
-
Shelf Life: 1.00 YRS
-
Container Type: Jar
-
Form: Paste
-
VOC: 0 g/L
-
Usable Solder: 95/5, 60/40, 50/50, and 40/60 Solid Wire Solders
-
Usable Metals: Copper, Tin, Zinc, Nickel and Sheet Lead
-
Applicable Materials: Copper, Tin, Zinc, Nickel, Sheet Lead
-

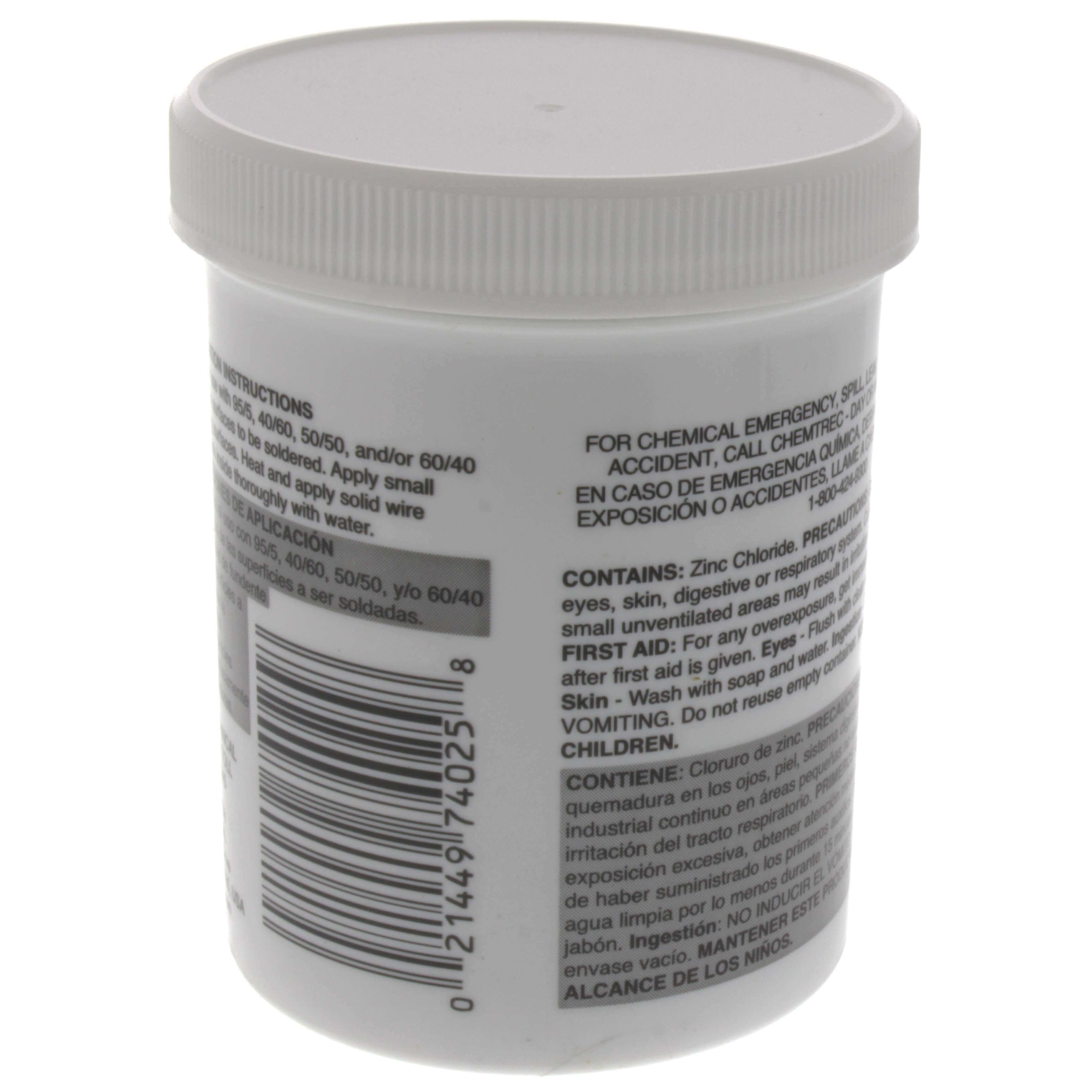

Composition: 20% Zinc Chloride, 1% Ammonium Chloride, Antimony, 10% Zinc Oxide, Tin
-
Flammability Rating: 1
-
Odor/Scent: Odorless
-
Container Size: 12 oz
-
Item Type: Fluxes
-
Volume [Features]: 12 oz.
-
Product Type [Features]: Solder/Flux Combo
-
Flux Type: Tinning
-
For Material Type: Copper; Nickel; Sheet Lead; Tin; Zinc
-
For Solder Type: Lead Free; Leaded; Tin/Lead
-
Maximum Active Temperature: 230 Degrees F
-
Maximum Brazing Temperature: 230 Degrees F
-
Item: Soldering Flux
-
Features: Cleans, Fluxes and Pretins the Joint Area At the Same Time, Contains Blend of Flux and Powdered Solder (95% Tin, 5% Antimony), Reduces Surface Tension in the Joint When Heated and Allows Solder to Flow Easily and Uniformly Into the Joint
-
Lead Content: Lead-Free
-
UNSPSC: 23171522
-
Condition: New
-
Brand: RECTORSEAL
-
Power Source: N/A
-
Voltage: N/A
-
Model: 74025
-
MPN: 74025
-
Item Width: 2.750
-
Item Length: 2.750
-
Item Height: 4.000
-
Item Diameter: N/A
-
California Prop 65 Warning: N
-
Weight: 0.8000
-
Length: 2.750
-
Width: 2.750
-
Depth: 2.750
-
Number of Batteries: N/A
-
Battery Size: N/A
-
Battery Included: No
-
Motor Type: N/A
-
Battery Capacity: N/A
-
Battery Life: N/A
-
Cable Length: N/A
-
Category: Welding & Soldering
-
Manufacturer Name: RectorSeal
-
Additional Information: Lead-Free; Material 95/5 Tin/Antimony; Size 3 Inch x 3 Inch x 3.5 Inch; Shelf Life 1 Year Minimum; Flash Point 230 Deg F; Shelf Life 1 Year
-
Recommended Use: 95/5, 60/40, 50/50, 40/60, All solderable metals (copper, tin, zinc, nickel and sheet lead)
-
Net Content: 12 oz
-
Overall Dimensions (L x W x H): 3 x 3 x 3.5
