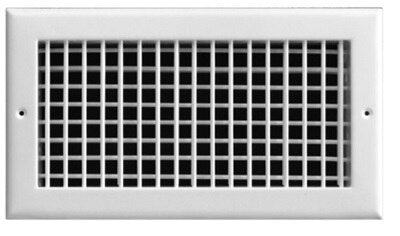

Rectorseal 220VO12X4 Supply Register 12x4 White Obd

Product Description

The RECTORSEAL 220VO12X4 is a double deflection supply register with an integrated opposed blade damper, designed for ceiling and sidewall HVAC installations where both directional airflow control and volume balancing are required. Constructed from stamped steel with a white powder-coat finish, the register features a dual-layer blade configuration that allows airflow direction adjustment in both the horizontal and vertical planes simultaneously. The opposed blade damper enables field balancing at the register face without additional hardware. This unit is installed by HVAC technicians during new construction, renovation, or system balancing work.

This register is suited for residential and light commercial HVAC systems that require combined directional and volume control at the supply outlet. The 12 by 4 inch face size fits standard rectangular duct openings commonly found in forced-air distribution systems. Ceiling and sidewall mounting configurations are both supported, making this register a practical fit for a variety of duct layout designs across multiple room types and building configurations.

Key Features

• Double deflection blade design controls airflow direction in both vertical and horizontal planes
• Built-in opposed blade damper allows field volume balancing without separate accessories
• Stamped steel construction for durability in residential and light commercial applications
• White powder-coat finish provides corrosion resistance and clean appearance
• Compatible with ceiling and sidewall installation orientations
• Fits standard 12 by 4 inch rectangular duct openings

Compatibility

Designed as an OEM-style replacement or new-installation supply register for residential and light commercial forced-air HVAC systems using standard 12 by 4 inch rectangular duct openings in ceiling or sidewall configurations.

Installation Notes

Installation is performed by a qualified HVAC technician. Shut down the air handling system before mounting or adjusting the register. Secure the register to the duct collar or wall opening according to local mechanical codes before restoring airflow. Adjust the deflection blades and opposed blade damper only after the system is balanced and operating at design conditions.

Technical Specifications

• Face Size: 12 x 4 inches
• Blade Configuration: Double deflection
• Damper Type: Opposed blade
• Material: Stamped steel
• Finish: White powder coat
• Mounting Location: Ceiling or sidewall

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 220VO12X4
