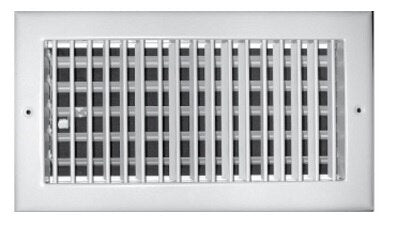

Rectorseal 210VM12X4 Ceiling Register 12x4 White

Product Description

The RECTORSEAL 210VM12X4 is a stamped steel supply register designed for ceiling and sidewall installations where directional airflow control in one plane is required. The vertical single deflection blade array allows field adjustment of air discharge angle, and the integrated multi-shutter damper provides on-site volume balancing without additional hardware. The face dimension measures 12 inches by 4 inches, sized to fit standard rectangular duct openings. A white powder-coat finish provides corrosion resistance suited to residential and light commercial interior environments. Licensed HVAC technicians and sheet metal contractors install this register as part of forced-air supply systems.

The 210VM12X4 is appropriate for residential and light commercial forced-air HVAC systems where a ceiling or sidewall supply outlet is needed with adjustable airflow direction and integrated damper control. The 12-inch by 4-inch face accommodates a corresponding rectangular duct collar. The multi-shutter damper allows balancing of airflow volume at the register face during system commissioning, making it suitable for installations where branch runs require individual flow adjustment without a separate volume damper.

Key Features

• Vertical single deflection blades allow airflow direction adjustment in one plane
• Built-in multi-shutter damper enables field-adjustable volume balancing at the register
• Stamped steel construction with white powder-coat finish for corrosion resistance
• 12-inch by 4-inch face dimension fits standard rectangular duct openings
• Suitable for ceiling or sidewall supply air applications

Compatibility

Designed as an OEM-style replacement or new-installation supply register for residential and light commercial forced-air HVAC systems requiring a 12-inch by 4-inch ceiling or sidewall outlet with single deflection and integrated damper.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal contractors. Power down the air handling unit at the disconnect before removing or installing register assemblies. Secure the register to the ceiling or wall surface according to local mechanical code requirements, ensuring the duct collar is fully seated before fastening. Do not paint over the damper actuator or blade pivot points, as doing so may restrict adjustment.

Technical Specifications

• Face Dimension: 12 inches x 4 inches
• Material: Stamped Steel
• Finish: White Powder Coat
• Blade Type: Vertical Single Deflection
• Damper Type: Multi-Shutter
• Installation Type: Ceiling or Sidewall
• Application: Supply Air

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 210VM12X4
