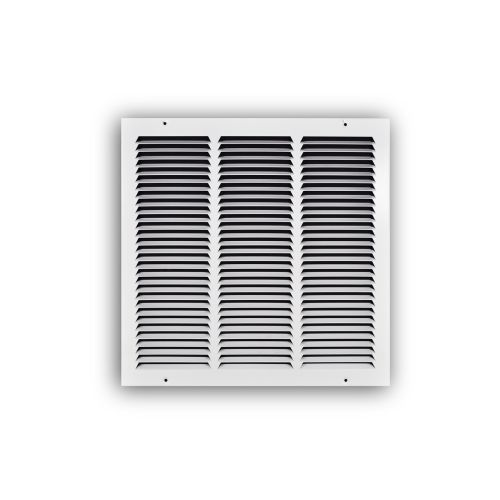

Rectorseal 17016X16 Grille, Return Air 16X16

Product Description

The RECTORSEAL 17016X16 Grille is a return air grille designed for residential ceiling or sidewall applications. Constructed from steel with a white powder-coated finish, this 16x16 grille features 1/2" blade spacing. It returns air to the furnace for filtering, cooling, or heating before recirculation.

• Steel construction
• 1/2" blade spacing
• Countersunk screw holes

Product Highlights

Durable steel construction with 1/2" blade spacing and a white powder-coated finish, suitable for sidewall or ceiling application.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 17016X16

Technical Specifications

• MPN: 17016X16
• Brand: RECTORSEAL
• Blade Spacing: 1/2 in
• Domestic/Import: Import
• Effective Area: 179 sq-in
• Finish: Powder Coated
• Flow Rate: 368 to 856 cfm
• Material: Steel
• Series: 170
• Size: 16 in W x 16 in H x 1/4 in THK
• Type: 1-Way
• Application: Ceiling/Sidewall
• Composition: Steel
• Curved Blade: N
• Deflection: 1-Way
• Filter Size: Not Applicable
• Market Type: Residential
• Insulated: NO
• Industry Type: Residential
• GRD Options: Spacing, - 1/2"
• GRD Material: Steel
• Face Style: Louvered, - Formed
• Airflow: Return
