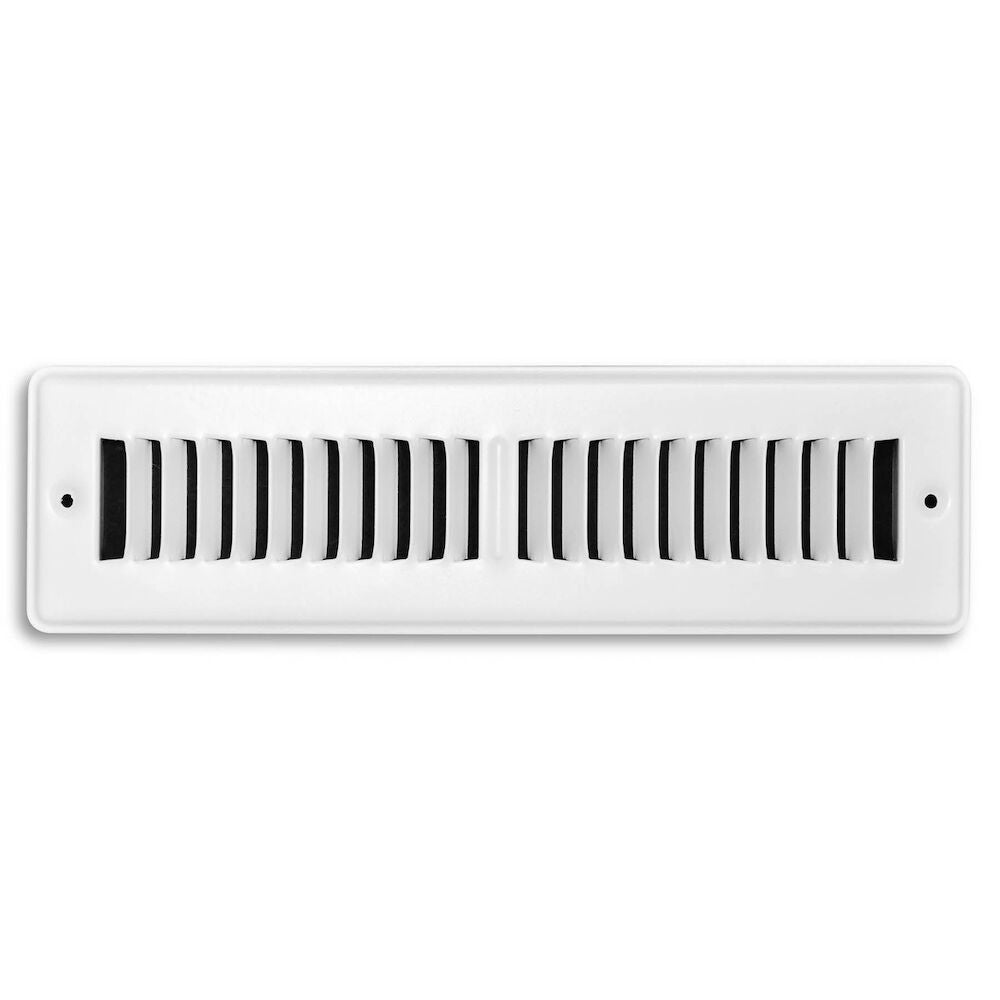

RECTORSEAL 150TSW02X12 Toe Space Grille

Product Description

The RECTORSEAL 150TSW02X12 is a two-way toe space grille made from steel. It features half-inch stamped louvers set at a thirty-five degree blade pitch. This grille is suitable for residential applications and aids in supply airflow.

• Steel construction
• Half-inch stamped louvers
• White powder coat finish

Product Highlights

This toe space grille is designed specifically for residential use, providing an efficient airflow solution.

Product Information

Standard Information

• Brand: RECTORSEAL
• MPN: 150TSW02X12

Technical Specifications

• Series: TRUaire
• Type: 2-Way
• Material: Steel
• Color: White
• Finish: White powder coat
• Size: 2 x 12 inches
• Overall Height: 3-3/4 inches
• Overall Width: 13-1/2 inches
• Weight: 0.6 lbs
• Market Type: Residential
• Application: Toe Space
• Airflow: Supply
• Blade Spacing: 1/2 inch
• Blade Pitch: 35 degrees
• Louver Type: Stamped
• Louver Thickness: 1/2 inch
• Free Area: 19 square inches
• Flow Rate: 50 to 225 cfm
• Average Face Velocity: 413 to 1653 fpm
• Horizontal Spread: 5 to 20.5 feet
• Vertical Throw: 3 to 12 feet
• Pressure Loss: 0.012 to 0.198 w.g.
• Insulated: No
