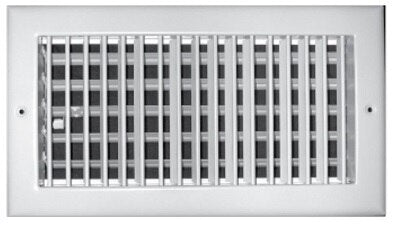

Rectorseal 110M8X4 Register Diffuser 8x4 in Vertical Blades

Product Description

The RECTORSEAL 110M8X4 is a bar-type supply air register-diffuser designed for ceiling or sidewall installation in residential and light commercial HVAC systems. It fits a rectangular duct opening of 8 inches by 4 inches and features a vertical bar face that provides directional airflow control across the supply air stream. The integrated multi-shutter opposed blade damper allows manual adjustment of airflow volume directly at the register face without accessing the ductwork. The unit is constructed from steel with a white painted finish, making it suitable for standard interior wall and ceiling applications where a clean, low-profile appearance is expected. Licensed HVAC technicians and experienced installers typically handle this component as part of a supply-side air distribution system.

This register-diffuser is used in supply air distribution systems connected to rectangular duct runs. It is appropriate for residential forced-air systems and light commercial applications where individual room airflow control is needed at the terminal point. The 8 by 4 inch duct opening size fits common residential trunk-and-branch duct configurations. The multi-shutter damper provides on-site volume control, reducing the need for separate balancing dampers in straightforward installations. It can be mounted in ceiling openings or sidewall framed openings depending on the system layout and design.

Key Features

• Bar-type vertical blade face for directional supply airflow control
• Integrated multi-shutter opposed blade damper for manual volume adjustment and partial shut-off
• Fits 8 inch by 4 inch rectangular duct opening
• Steel construction with white painted finish for standard interior use
• Suitable for both ceiling and sidewall mounting configurations
• Mounts with standard screws into framed wall or ceiling openings

Compatibility

Designed as an OEM-style replacement or new-installation supply register-diffuser for residential and light commercial forced-air HVAC systems using 8 by 4 inch rectangular duct openings.

Installation Notes

This register-diffuser is installed by licensed HVAC technicians or qualified installers as part of the supply air distribution system. Power down or disable the air handling unit before installing or replacing any register at the duct termination point. Secure the unit with appropriate mounting screws into a properly framed wall or ceiling opening sized for the 8 by 4 inch duct collar. Verify that the damper blades move freely and are set to the desired airflow position before returning the system to service.

Technical Specifications

• Duct Opening Size: 8 x 4 inches
• Blade Orientation: Vertical
• Damper Type: Multi-shutter opposed blade
• Material: Steel
• Finish: White painted
• Mounting Location: Ceiling or sidewall

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 110M8X4
