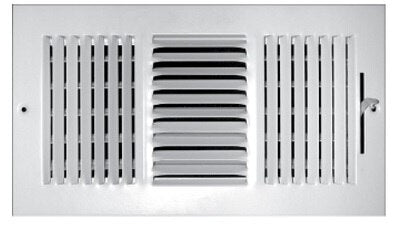

Rectorseal 103M14X6 3-way Register 14x6 White

Product Description

The RECTORSEAL 103M14X6 is a 3-way ceiling and sidewall supply register designed for residential and light commercial HVAC systems. Stamped from steel and finished in white powder coat, it distributes conditioned air in three directions from a single grille face. The 14-inch by 6-inch face size fits standard duct openings, and the integrated multi-shutter damper allows airflow volume to be adjusted directly at the register. Licensed HVAC technicians and skilled installers use this register as a finished supply-side component in forced-air ducted systems where directional air distribution and clean aesthetics are both required.

This register is suited for ceiling or sidewall installation in residential and light commercial forced-air HVAC supply applications. The 3-way airflow pattern makes it appropriate for corner or perimeter room placements where air needs to be distributed across a wider coverage area. The multi-shutter damper allows on-site balancing without additional balancing hardware at the grille location.

Key Features

• 3-way airflow configuration for wide-area air distribution from a single supply opening
• Integrated multi-shutter damper for adjustable airflow control at the grille
• Stamped steel construction for rigidity and long service life
• White powder coat finish for corrosion resistance in conditioned spaces
• 14-inch by 6-inch face size fits standard duct openings
• Suitable for both ceiling and sidewall installation positions

Compatibility

Designed as an OEM-style replacement or new-installation supply register for residential and light commercial forced-air ducted HVAC systems with standard 14-inch by 6-inch duct openings.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified installer. Power down the air handling system before removing an existing register or making duct connections. Confirm the duct rough opening matches the 14-inch by 6-inch nominal size before mounting. Secure the register to the ceiling or sidewall surface per local mechanical code requirements and adjust the multi-shutter damper after system startup for proper airflow balance.

Technical Specifications

• Face Size: 14 inches x 6 inches
• Airflow Configuration: 3-Way
• Damper Type: Multi-Shutter
• Material: Stamped Steel
• Finish: White Powder Coat
• Installation Position: Ceiling or Sidewall
• Application: HVAC Supply Air

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 103M14X6
