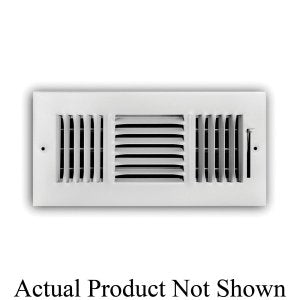

RECTORSEAL 103M14X06 3-Way Down Face Supply Register

Product Description

The RECTORSEAL 103M14X06 is a 3-way down face supply register suitable for sidewall or ceiling installation. Designed from durable steel, this register features a white powder-coated finish that enhances its durability and aesthetic appeal. The multi-shutter damper allows for precise airflow control, providing supply airflow at a deflection angle of 45 degrees with optimal blade spacing of half an inch.

• Three-way airflow pattern for effective air distribution.
• Constructed with a multi-shutter damper for adjustable airflow.
• 56 square inches of effective area supporting flow rates from 85 to 290 cfm.

Product Highlights

This register is designed to ensure efficient air distribution, making it ideal for various HVAC applications.

Product Information

Standard Information

• Type: Sidewall/Ceiling Supply Grilles & Registers
• Material: Steel

Technical Specifications

• Width: 14 inches
• Height: 6 inches
• Damper Type: Multi Shutter
• Blade Spacing: 1/2 inch
• Deflection Angle: 45 degrees
• Effective Area: 56 square inches
• Flow Rate: 85 to 290 cfm
• Overall Depth: 1-7/16 inches
