Rbi RBI-44-0056 Ignition Wire Straight Angled Boot

Product Description

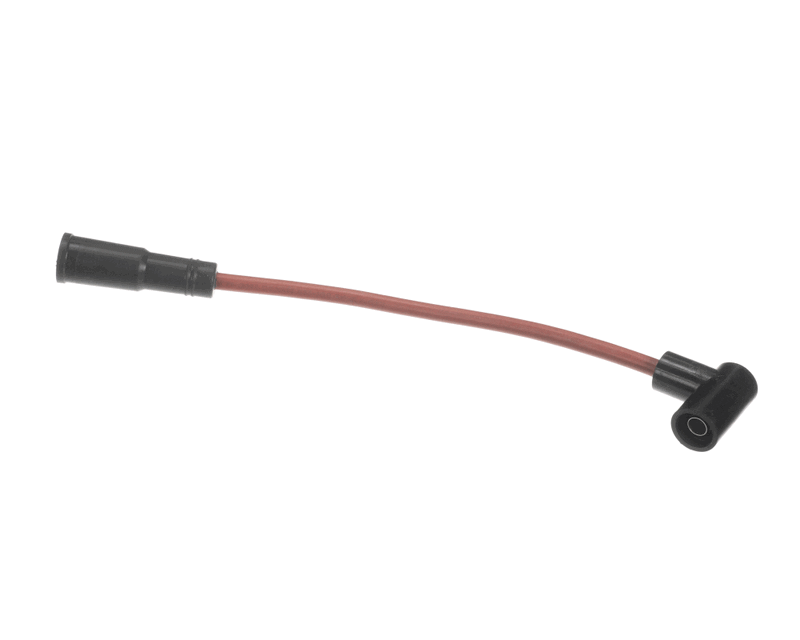

The RBI RBI-44-0056 is a genuine OEM ignition wire assembly designed for use in RBI heating appliances. It features one straight boot and one angled boot, allowing it to route cleanly to the igniter in applications where a straight connection on one end and an offset connection on the other are required. This wire delivers consistent spark transfer from the ignition control to the igniter electrode, supporting reliable burner startup. HVAC technicians install this part as a direct OEM-matched replacement when an ignition wire shows cracking, carbon tracking, or resistance failure during routine service.

This ignition wire is suited for residential and light commercial heating units where RBI equipment is installed. Compatible models listed by the manufacturer include the UDAP 30, TR 75/100, and UDAP 75. The angled boot design accommodates tight clearances common in unit heater and boiler configurations, making routing straightforward without stressing the wire jacket or boot seal.

Key Features

• Genuine OEM part built to RBI factory specifications for direct fitment
• One straight boot and one angled boot for flexible routing in confined spaces
• Designed to maintain consistent spark transfer to the igniter electrode
• Compact profile at 5.1 inches length supports installations with limited clearance
• OEM construction helps preserve appliance integrity over repeated ignition cycles

Compatibility

Compatible with RBI models UDAP 30, TR 75/100, and UDAP 75 as stated by the manufacturer. Verify the boot configuration and wire routing against the unit wiring diagram before installation.

Installation Notes

A licensed HVAC technician should perform this replacement. Shut off electrical power to the unit at the disconnect switch before removing the existing ignition wire. Inspect the igniter electrode and ignition control terminals for carbon buildup or corrosion before installing the new wire. Route the wire clear of sharp edges, hot surfaces, and moving components to prevent premature jacket wear.

Technical Specifications

• Boot Configuration: 1 Straight Boot, 1 Angled Boot
• Length: 5.1 inches
• Width: 4 inches
• Height: 0.95 inches

Standard Information

• Brand: RBI
• Manufacturer Part Number: RBI-44-0056
