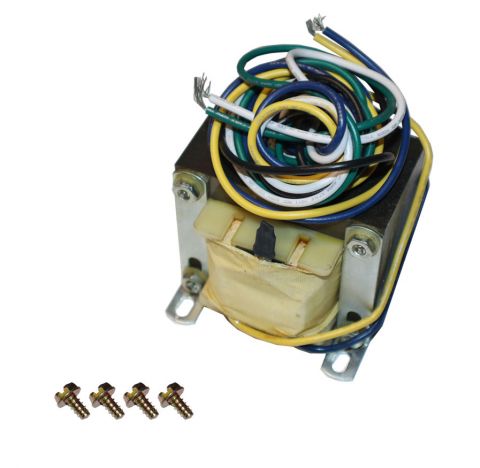

Raypak RAY-011762F Transformer 120V to 24V

Product Description

The RAYPAK RAY-011762F is a step-down transformer designed to reduce 120-volt line voltage to 24 volts for low-voltage control circuits. Transformers of this type power the control boards, thermostats, and safety switches that regulate burner operation, ignition sequencing, and zone control in pool and spa heating systems. This is a genuine OEM replacement part, supplied new in original factory packaging. Licensed pool and spa service technicians and HVAC mechanics are the primary installers of this component.

This transformer is suited for residential and light commercial pool heater applications where a reliable 120V to 24V step-down is required to maintain low-voltage control circuit integrity. It is a direct OEM replacement intended for RAYPAK pool and spa heater units that specify this part number. Installers replacing a failed or damaged transformer will find this a direct-fit solution for restoring proper control circuit function.

Key Features

• Genuine OEM RAYPAK replacement part for accurate fitment
• Steps down 120 volts to 24 volts for low-voltage control circuit operation
• Supplied new in original RAYPAK factory packaging
• Supports proper operation of control boards, thermostats, and safety switching circuits

Compatibility

Designed as an OEM-style replacement transformer for RAYPAK pool and spa heaters that utilize a 120V to 24V low-voltage control circuit. Consult the unit service manual and confirm the part number RAY-011762F before installation.

Installation Notes

Installation should be performed by a licensed pool and spa technician or qualified HVAC mechanic. Disconnect all power to the heater at the breaker before removing or installing the transformer. Verify input and output voltage ratings match the existing wiring schematic before energizing the unit. Follow applicable local electrical codes and the manufacturer service documentation throughout the replacement procedure.

Technical Specifications

• Input Voltage: 120 volts
• Output Voltage: 24 volts
• Product Type: Transformer
• Condition: Brand New

Standard Information

• Brand: RAYPAK
• Manufacturer Part Number: RAY-011762F
