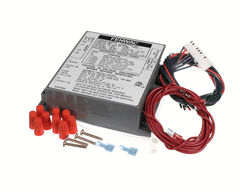

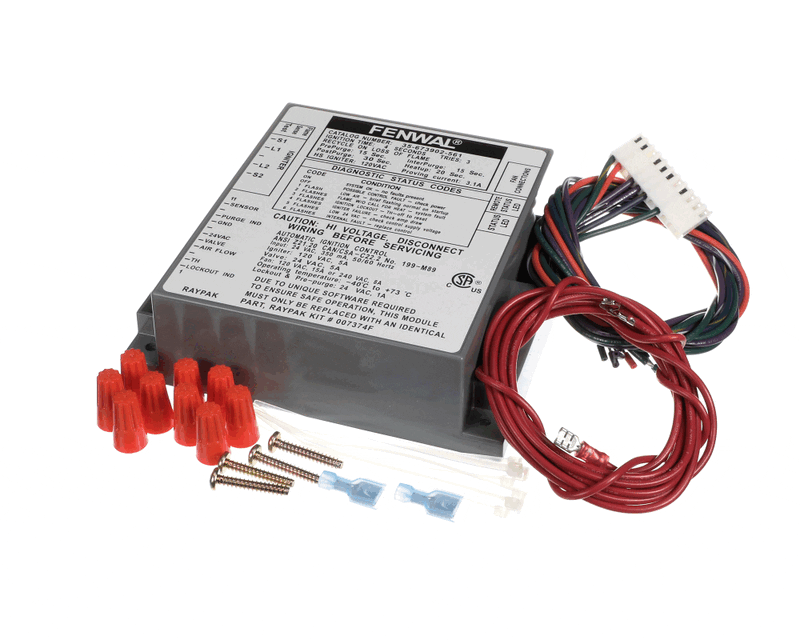

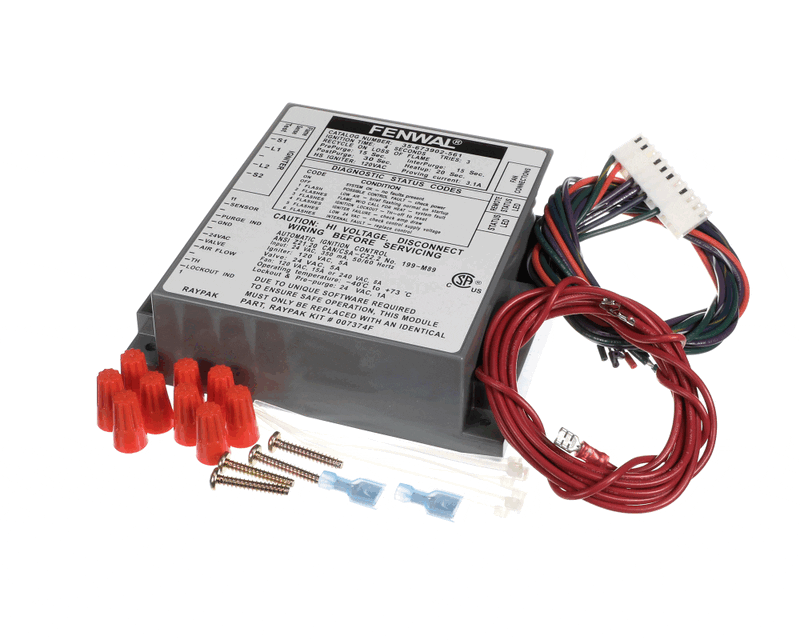

Raypak RAY-007374F Ignition Control 24V 350ma Automatic

Product Description

The RAYPAK RAY-007374F is an automatic ignition control module designed for gas-fired pool and spa heaters. It manages spark sequencing and flame supervision to ensure reliable ignition and safe burner operation. Rated at 24 volts AC and 350 milliamps (mA) with dual-frequency compatibility at 50/60Hz, this control module supports both domestic and international electrical configurations. At 0.955 pounds and a compact footprint of 7.55 inches by 7.45 inches by 3 inches, it is designed for direct OEM-style replacement. Licensed HVAC and pool equipment technicians are the primary installers of this component.

The RAY-007374F is used in residential and commercial pool and spa heating systems. It fits gas-fired heater units where reliable ignition timing is critical to fuel efficiency and consistent heat output. This part is confirmed to fit models H-1259B, H-1529B, and H-1799B. Additional compatible models may apply; consult the manufacturer fitment guide for a complete list. This component is suited for service and maintenance scenarios where the existing ignition control has failed or requires scheduled replacement.

Key Features

• Automatic ignition sequencing for reliable burner startup
• Rated 24 volts AC at 350mA draw
• Dual-frequency rated at 50/60Hz for broad electrical compatibility
• Compact module: 7.55 inches by 7.45 inches by 3 inches
• Genuine OEM replacement part for RAYPAK heater systems

Compatibility

Confirmed compatible with RAYPAK models H-1259B, H-1529B, and H-1799B. Additional compatible models may exist; refer to the manufacturer fitment documentation for the full compatibility list.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified pool equipment service professional. Shut off all power to the heater and close the gas supply valve before removing the existing control module. Follow applicable local codes and the manufacturer service documentation when wiring and mounting the replacement control. Do not restore power or gas until all connections are verified and the access panel is secured.

Technical Specifications

• Voltage: 24 volts AC
• Current: 350mA
• Frequency: 50/60Hz
• Control Type: Automatic
• Length: 7.55 inches
• Width: 7.45 inches
• Height: 3 inches
• Weight: 0.955 pounds

Standard Information

• Brand: RAYPAK
• Manufacturer Part Number: RAY-007374F
