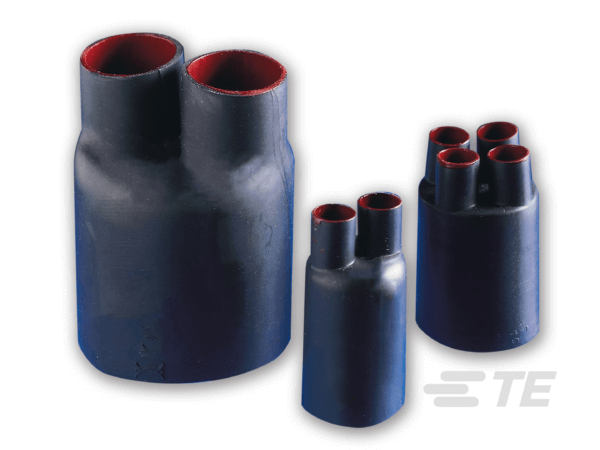

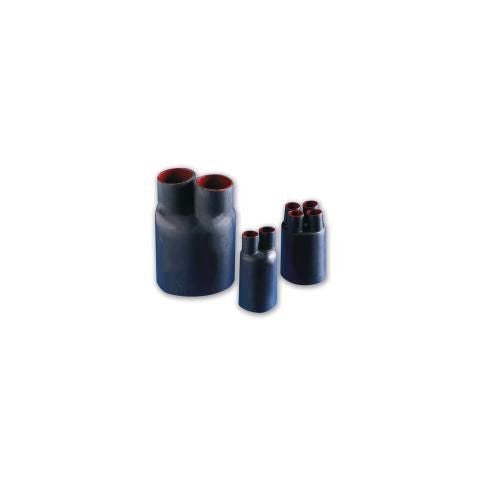

RAYCHEM CBR3-4A Breakout Boot

Product Description

The Raychem CBR3-4A breakout boot is ideal for sealing breakouts in multiconductor cables and conduits. This product is made from crosslinked polyolefin, which ensures both mechanical protection and strain relief. It has an adhesive coating that forms a watertight seal, allowing for a tight fit on conduits and cable jackets.

• Constructed from durable crosslinked polyolefin.
• Adhesive coating offers a watertight seal.
• Compatible with standard poly or elastomeric insulated multiconductor cables.

Product Highlights

This breakout boot is suitable for use in various environmental conditions and complies with ANSI C119.1 standards.

Product Information

Standard Information

• Material: Polyolefin
• Type: Heat Shrink Cable Breakout Boot

Technical Specifications

• Main Entry I.D.: 2.35 to 5.65 inches
• Leg Entry I.D.: 1.2 to 2.1 inches
• Suitable For Use With: Standard poly or elastomeric insulated/jacketed multiconductor cables; cables in metal or plastic conduits
• Military Color Code: Black
• Heat Shrink: Yes
• UL Listed: No
