Rational 8720.1560US Gas Combi Oven Installation Kit

Product Description

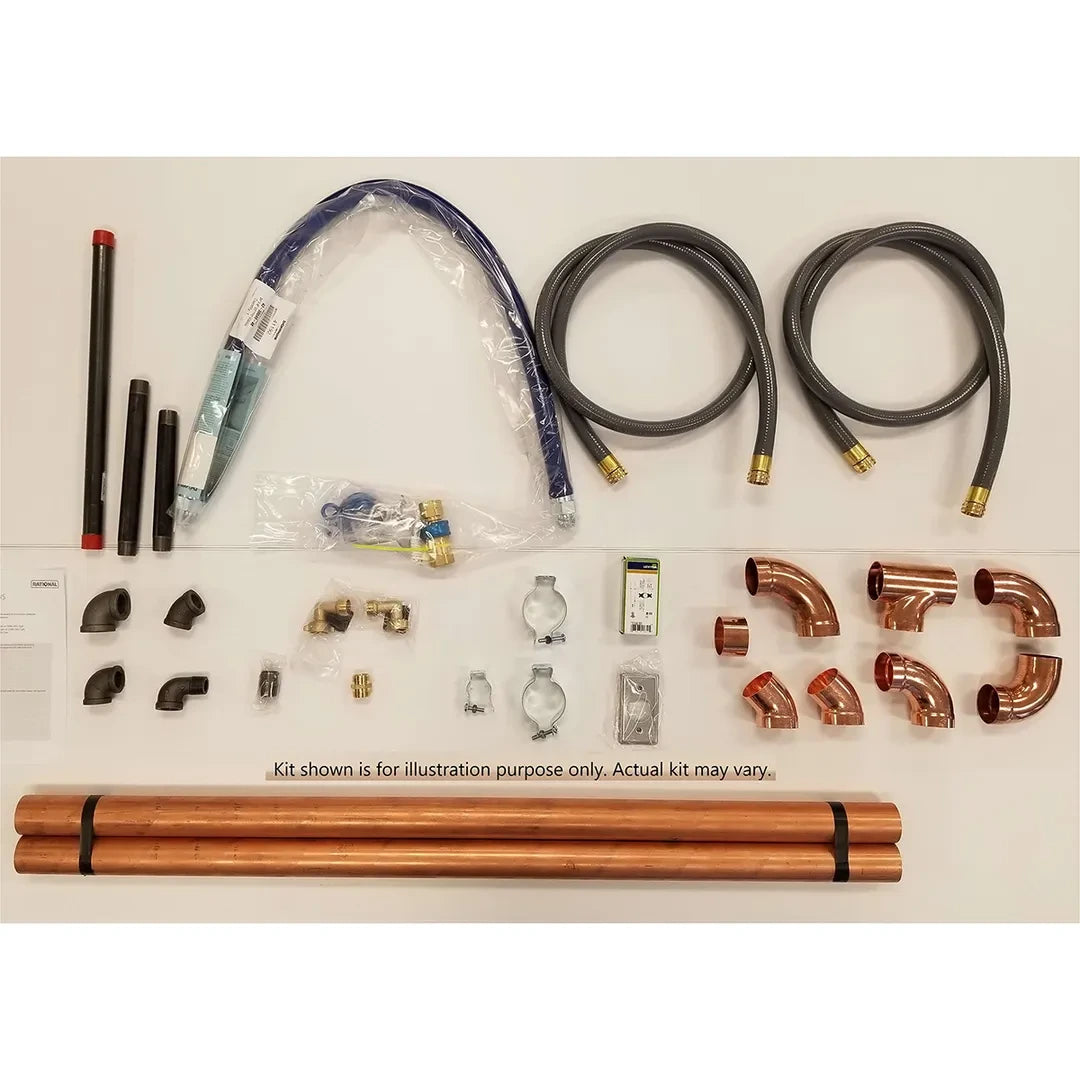

The RATIONAL 8720.1560US is a complete installation kit designed to connect RATIONAL gas combi ovens to gas, water, and electrical services at the job site. The kit bundles all essential connection materials into a single package, including gas connector hoses, black iron pipe fittings, copper drain pipe components, water connector hoses, and NEMA electrical receptacles and plugs. Having these components together eliminates sourcing delays and reduces pre-installation setup time. This kit is intended for installation by licensed plumbers, gas fitters, and electricians working on commercial kitchen equipment.

This installation kit is specifically designed for the 6-full-size, 6-half-size, and 10-half-size RATIONAL gas combi ovens. It covers gas supply, fresh water supply, drain, and electrical connection requirements for these oven configurations in a commercial kitchen environment. The included components are sized and rated for the connection specifications required by these RATIONAL combi oven models.

Key Features

• Gas connector hose is 48 inches long, 3/4 inches NPT, stainless steel braid with plastic coat exterior, and includes a brass push-to-connect quick disconnect coupling with cable strain relief for castered equipment
• Water connector hoses are 60 inches long, 5/8 inches ID, 3/4 inches female hose thread both ends, rubber coated, and NSF approved
• Black iron pipe fittings included in multiple sizes: 3/4 inches and 1 inches NPT elbows, street elbows, nipples, and pipe sections from 8 inches to 18 inches in length
• Copper drain pipe components included: 2 inches diameter pipe sections, 90-degree elbows, 45-degree elbows, T fitting, long sweep elbow, and coupling
• Electrical components include a NEMA 6-15R receptacle, NEMA 6-15R cover plate, NEMA 6-15P plug, and NEMA 5-15P plug
• All-in-one kit eliminates the need to source individual fittings and hoses separately

Compatibility

Designed for use with RATIONAL gas combi ovens in the 6-full-size, 6-half-size, and 10-half-size configurations, including iCombi models requiring these connection specifications.

Installation Notes

Installation must be performed by licensed tradespeople: a licensed gas fitter or plumber for gas and water connections and a licensed electrician for electrical connections. Shut off gas supply, water supply, and electrical power to the work area before beginning any connection work. Gas connections must comply with local codes and the applicable requirements of the IFGC or local authority having jurisdiction. Electrical connections must comply with NEC Article 422 for commercial kitchen appliances.
