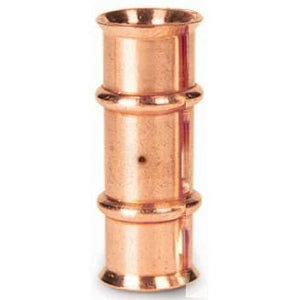

Rapid Locking System 3011181800111 Coupling 1-1/8 With Stop

Product Description

The RAPID LOCKING SYSTEM 3011181800111 coupling is designed to join copper tube in high-pressure HVAC and refrigeration systems. These fittings connect quickly using an RLS-approved press tool and jaws, replacing the time-consuming practice of manually brazing joints. RLS Press Fittings are fully registered and listed to UL207 for pressures up to 700 PSI.

• Safe: Elimination of the brazing process results in a safer work environment.
• Fast - Connections completed in 10 seconds
• Reliable - More consistent and dependable connections requiring less rework than the traditional brazing method.

Product Highlights

RLS press fittings provide higher-quality work completed by fewer people in less time, increasing profit per job.

Product Information

Standard Information

• Brand: RAPID LOCKING SYSTEM
• Manufacturer Part Number: 3011181800111
• Country of Origin: America

Technical Specifications

• Catalog Number: 3011181800111
• Connection Type: Pres x Pres
• Specifications Met: UL 207
• Size: 1-1/8 in
• Type: Coupling
• End Style: Press End
• Fitting/Connector Type: Coupling
• Material: Refrigerant Grade Copper
• Nominal Size: 1-1/8 In
• Pressure Rating: 700 Psi
• Temperature Rating: 250 deg
• Description: Coupling 1-1/8" RLS
• Country of Origin: UNITED STATES
