Ranco ETC-111000-000 Electric Temperature Control

Product Description

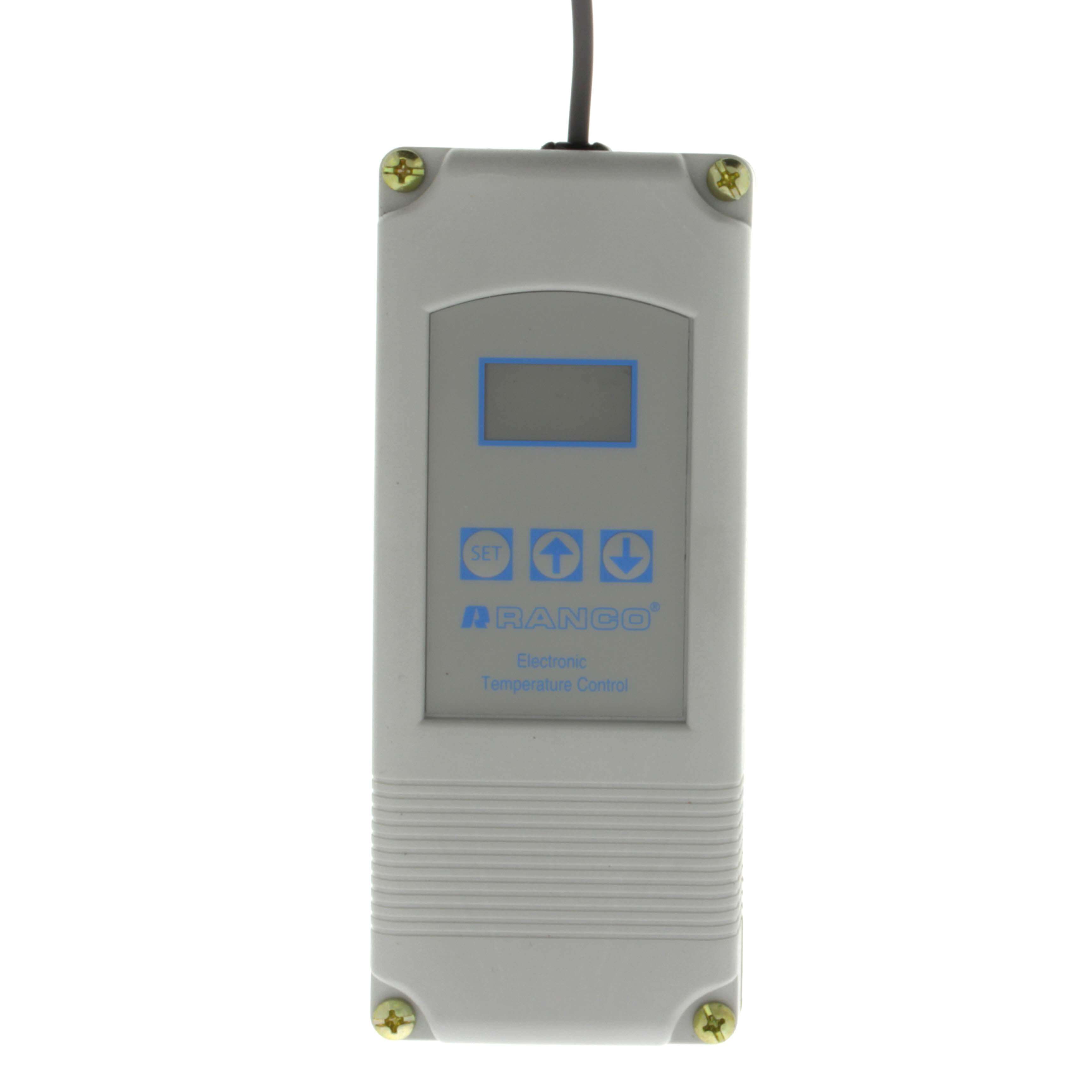

The RANCO ETC-111000-000 electric temperature control is designed for use in commercial refrigeration applications. It serves as a full-featured electronic replacement for electrical-mechanical temperature controls. The unit features an LCD for displaying sensor temperature, control settings, and relay status.

• Capable of remote temperature sensing up to 400' away
• EEPROM Memory retains control settings during power outages
• Selectable °F or °C heating/cooling modes

Product Highlights

This temperature control offers easy setup, a heavy-duty relay, and a keypad lockout to prevent unauthorized setting changes.

Product Information

Standard Information

• Brand: RANCO
• Manufacturer Part Number: ETC-111000-000
• Country of Origin: Mexico

Technical Specifications

• Model Info: ETC-111000-000
• Batteries Included?: No
• Batteries Required?: No
• Manufacturer: Ranco
• MfgNum: ETC-111000-000
• Main Category: Refrigeration
• Category: Controls
• SubCat: Temperature
• SubSubCat: Refrigeration
• Control ambient temperatures - operating: -20 to 140F
• Ambient humidity: 0 to 95% RH, non-condensing
• Wide temperature range: -30 to 220F
• Wide differential adjustment: 1 to 30F
• Stages: One
• Voltage: 120v, 208v, 240v
• Bulb Size: 2" x 1/4"
• Resistive: 15 A, 8 A
• Application: Commercial, Refrigeration
• Horse Power: 1
• Sensor Type: Thermistor
• Differential: 1 to 30 (1 to 16 )
• Switch Action: SPDT
• Enclosure Type: NEMA-1
• Humidity Range: 0 to 95% RH (Non Condensing)
• Capillary Length: 8'
• Pilot Duty Rating: 125 VA
• Temperature Range: -30 to 220 (-34 to 104 )
• Contact Ratings 120v: 16.0 AFL, 96.0 ALR
• Contact Ratings 240v: 8.0 AFL, 48.0 ALR
• Item [Specifications]: Electronic Temperature Control
• Color [Specifications]: Gray
• Depth [Specifications]: 2 1/2 in
• Width [Specifications]: 2 3/4 in
• Height [Specifications]: 6 1/2 in
• Display [Specifications]: LCD
• Voltage [Specifications]: 120/208/240VAC
• Includes [Specifications]: 8 ft Cable
• Standards [Specifications]: UL Listed and CSA Certified
• Switch Type [Specifications]: SPDT
• Display Type [Specifications]: LCD
• For Use With [Specifications]: Cooling, Heating, Refrigeration
• Control Range [Specifications]: -30 Degrees to 220 Degrees F
• Switch Action [Specifications]: Open/Close on Rise
• Voltage Range [Specifications]: 120/208/240V AC
• Sensing Bulb Dia. [Specifications]: 1/4 in
• Number of Switches [Specifications]: 1.0
• Sensing Bulb Length [Specifications]: 2 in
• Number of Relay Inputs [Specifications]: 1.0
• Thermostat Switch Type [Specifications]: SPDT
• Full Load Amps @ 120VAC [Specifications]: 5.8A (NC), 16A (NO)
• Full Load Amps @ 240VAC [Specifications]: 2.9A (NC), 8A (NO)
• Number of Relay Outputs [Specifications]: 1.0
• Additional Information: Differential Temperature Rating 1 to 30 Deg F; Ambient Humidity 0 Percent to 95 Percent Hour, Non-Condensing
• Approval: UL (Canada and US)
• Contact Rating: 1 HP, 16 Amp at 120 Volt, 8 Amp at 208/240 Volt (Full Load), 96 Amp at 120 Volt, 48 Amp at 208/240 Volt (Locked Rotor), 15 Amp at 120 Volt, 8 Amp at 208/240 Volt (Resistive), 125 Volt Amp at 120/208/240 Volt AC
• Enclosure: NEMA 1/4X, IP67
• Features/Benefits: Anti-Short Cycle Compressor Delay for Cooling Applications; LCD Read-Out for Sensor Temperature, Control Settings and Relay Status; High Amp Output Relay
• Manufacturer Name: Ranco
• Manufacturer Part Number: ETC-111000-000
• Marketing Text: The Ranco ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications.
• Series/Model: ETC
• Type: Electronic, 1-Stage
• UNSPSC Code: 41112200
• Major Category: HVACR Service Parts
• Sub Category: Controls
• Product Type: Commercial Controls
• Temperature Setpoint Range: -30 to 220F
• Differential range: 1 to 30F
• Input Voltage: 120VAC

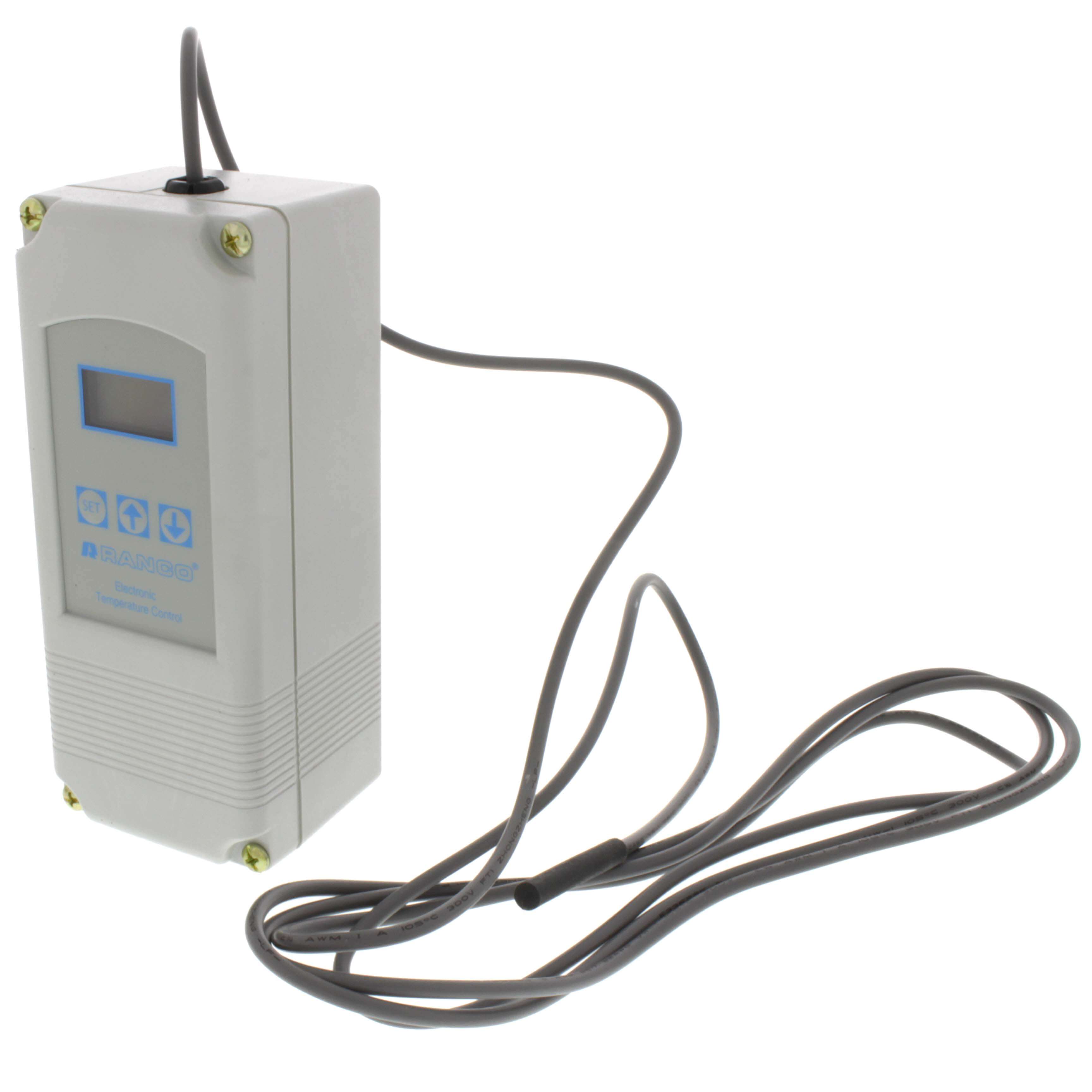

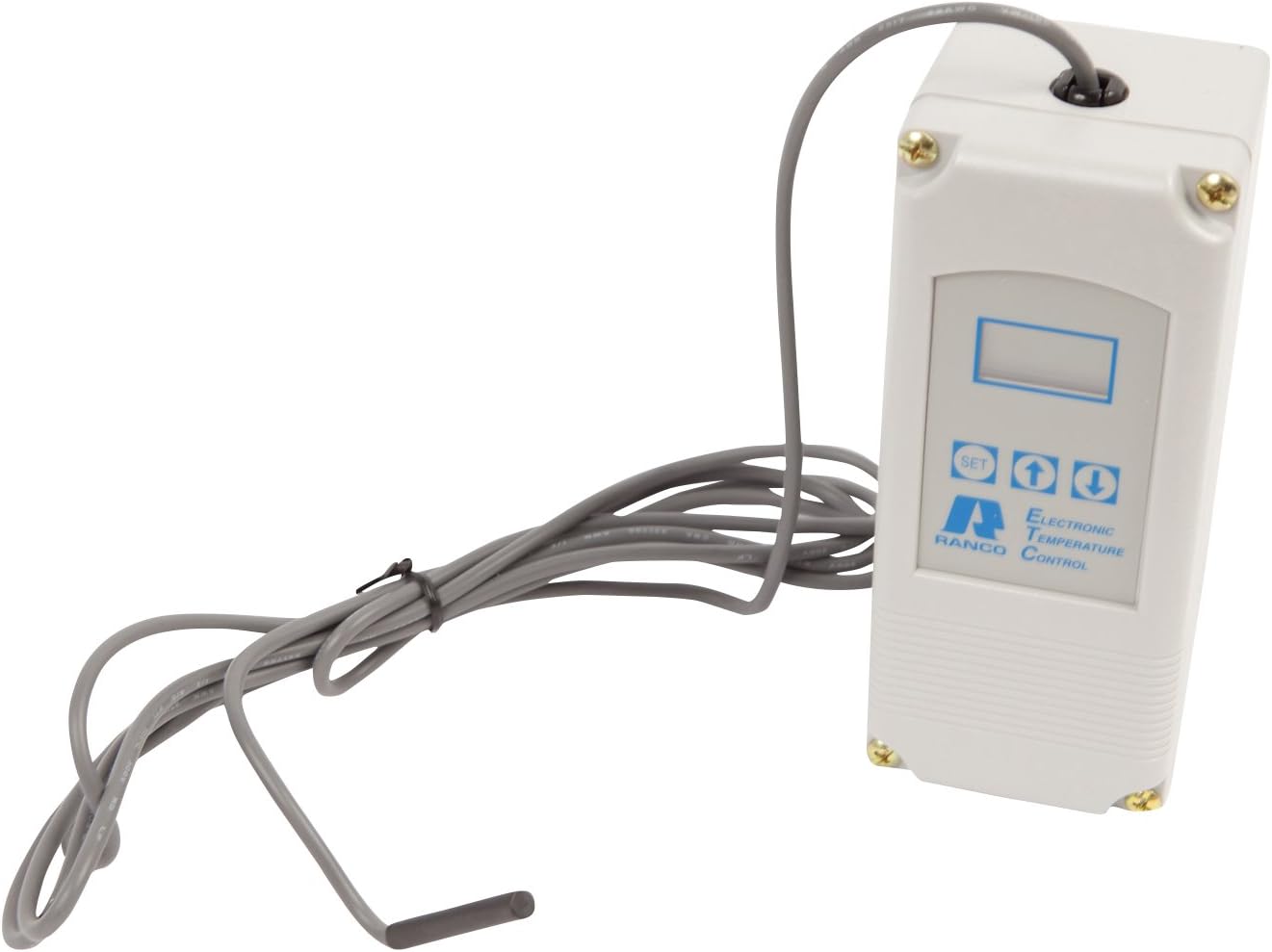

• Sensor: Thermistor, 2" long x 1/4"dia with 8' cable (included)
• Control Ambient Temperatures Operating: -20 to 140
• Storage: -40 to 176
• Relay Output Ratings (SPDT) Normally Open (NO): 16 Amps @120Volts
• Normally Closed (NC): 8 Amps @120Volts
• Series Application: Electronic Temperature Control
• Electrical Rating: 120/208/240V AC
• Number of Stages: One
• 0 - 10V Output: No
• Ambient Humidity: 0% to 95% HR, non-condensing
• Factory Part Number: ETC-111000-000
• URI Part Number: ETC111000
• Vendor Part Number: ETC111000000
• Length (In.): 9.00
• Width (In.): 3.70
• Height (In.): 2.90
