RANCO Ranco A30-261 Control, Temperature, SPST 84 inches Capillary
RANCO Ranco A30-261 Control, Temperature, SPST 84 inches Capillary

Ranco A30-261 Control, Temperature, SPST 84 inches Capillary

RANCO
Brand: RANCO
SKU: A30-261
Availability: Out Of Stock
$113.99
$113.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

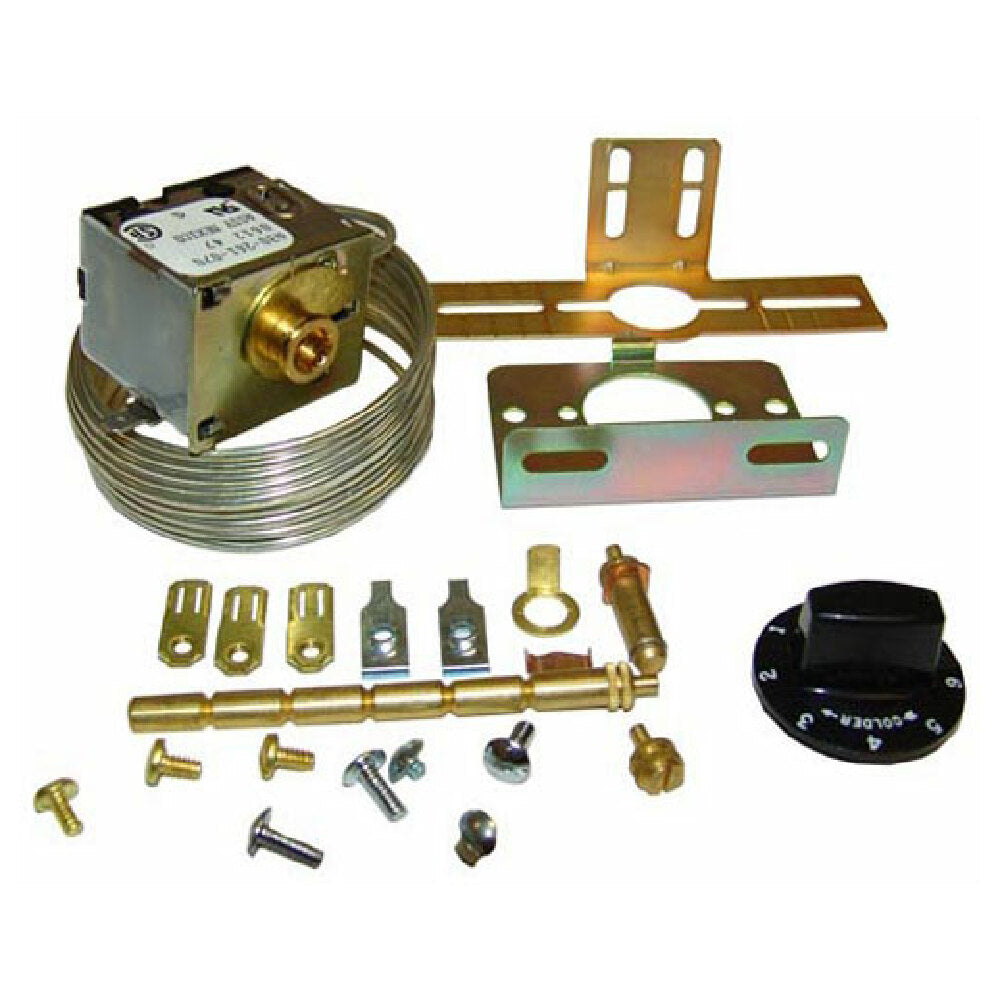

The RANCO A30-261 is a temperature control with SPST switching. It includes a mounting plate, dial, and hardware. The temperature range is 32 to 61 F with an 84" capillary. This control is compatible with Delfield, Schaefer, and Scotsman models.

  • Temperature control
  • SPST switch configuration
  • Temperature range: 32 to 61 F

Product Highlights

The RANCO A30-261 is designed for refrigeration systems, providing precise and reliable temperature regulation in industrial environments.

Product Information

Standard Information

  • Brand: RANCO
  • Manufacturer Part Number: A30-261
  • Country of Origin: United States
Technical Specifications
OEM Part Number
A30-261
Product
461501
Product (dash)
46-1501
AllPoints OEM Part Number
RCOA30-261
OEM
Ranco
Unit of Stock
EA
Weight
0.54 lbs
Length
4.0 in
Width
2.5 in
Height
5.0 in
Hazardous
false
Country of Origin
United States
Product Category
Parts
Product Type
Mavrik
MPN
A30-261
Item Number
A30-261
Switching
SPST
Series-Brand
A30 Series
Differential
6 °F
Capillary Length
84"
Cold On
38 °F
Cold Off
32 °F
Normal Off
NA
Normal On
NA
Warm On
61 °F
MfgNum
A30-261
Main Category
Refrigeration
Category
Controls
SubCat
Temperature
SubSubCat
Refrigeration
ItemNum
A30261
Vendor Name
Ranco
Model Info
A30-261
Batteries Included?
No
Batteries Required?
No
National Stock Number
5930-00-249-4525
Item Model Number
A30-261
Part Number
A30-261
Item Dimensions LxWxH
4 x 4 x 6 inches
Switch
SPST, Open Low
Off Position
Yes
Type
84 Inch Capillary, Adaptable Constant Differential
Model
A30-261
Manufacturer
Ranco
Model Number
A30-261-070
Manufacturer Part #
A30-261-070
Depth
4"
Application
Refrigerator, Freezer
Approval
UL (Canada and US)
Connection Type
1/4 Inch Quick-Connect
Contact Configuration
SPST
Contact Rating
20 Amp at 120/240 Volt AC, 16 Amp at 277 Volt AC (Full Load), 80 Amp at 120/240 Volt AC, 60 Amp at 277 Volt AC (Locked Rotor), Pilot Duty 240 Volt Amp at 120/240/277 Volt AC, 16 Amp at 277 Volt (Resistive Load)
Temperature Range
38 Deg F (Cold On), 32 Deg F (Cold Off), 6 Deg F (Differential), 61 Deg F (Warm On)
UNSPSC Code
41112200
Series/Model
A30
Manufacturer Part Number
A30-261
Brand Name
Ranco
Item Weight
8 ounces
Is Discontinued By Manufacturer
No
ASIN
B00EMJQ2KC
URI Part Number
A30261
Vendor Part Number
A30261
Length (In.)
5.00
Width (In.)
4.00
Height (In.)
2.50
Shipping Weight (Lbs.)
0.54
Contact Rating (Amps)
20 F.L. Amp 240 Vac
Series Application
A22/A30 Series Adaptable Constant Differential Control
Voltage
24/120/240/277
Constant Differential (F) [Specifications]
6
Full Load Amps [Specifications]
20/20/16
Locked Rotor Amps [Specifications]
80/80/60
Pilot Duty Contacts (VA) [Specifications]
240
Capillary Type [Specifications]
Capillary
Switch Action [Specifications]
Close on Rise
Control Range (F) [Specifications]
32 to 42
Cold On [Specifications]
38 Degrees F
Warm On [Specifications]
61 Degrees F
Cold Off [Specifications]
32 Degrees F
Includes [Specifications]
Break-off Shaft, Dial Knob and Mounting Bracket for Fast, Easy Installation
