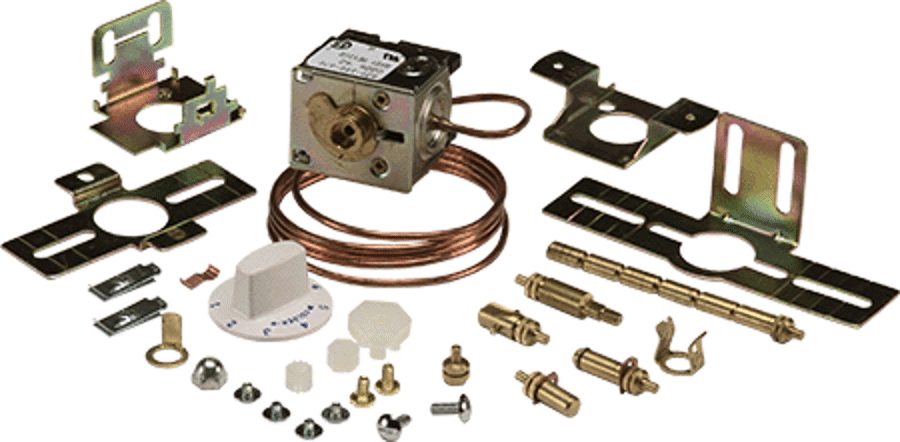

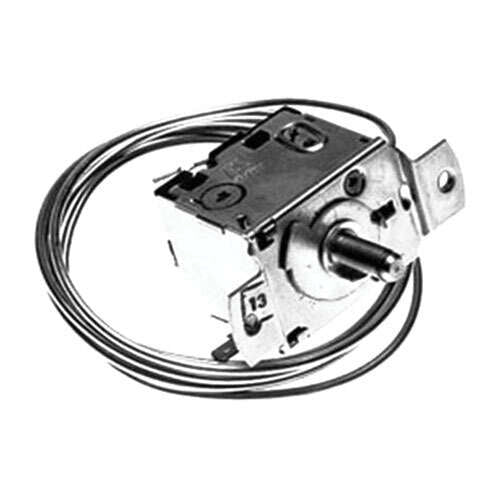

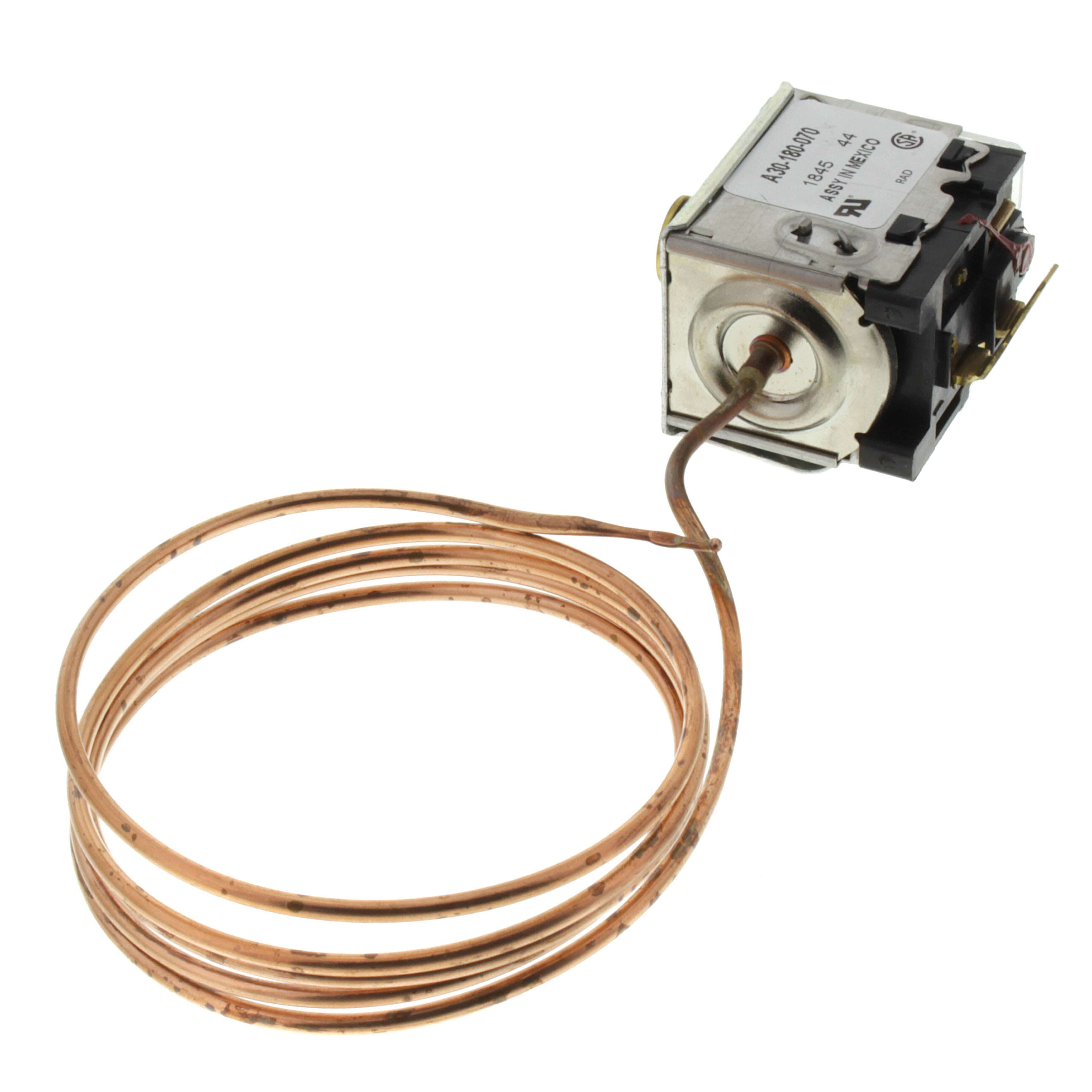

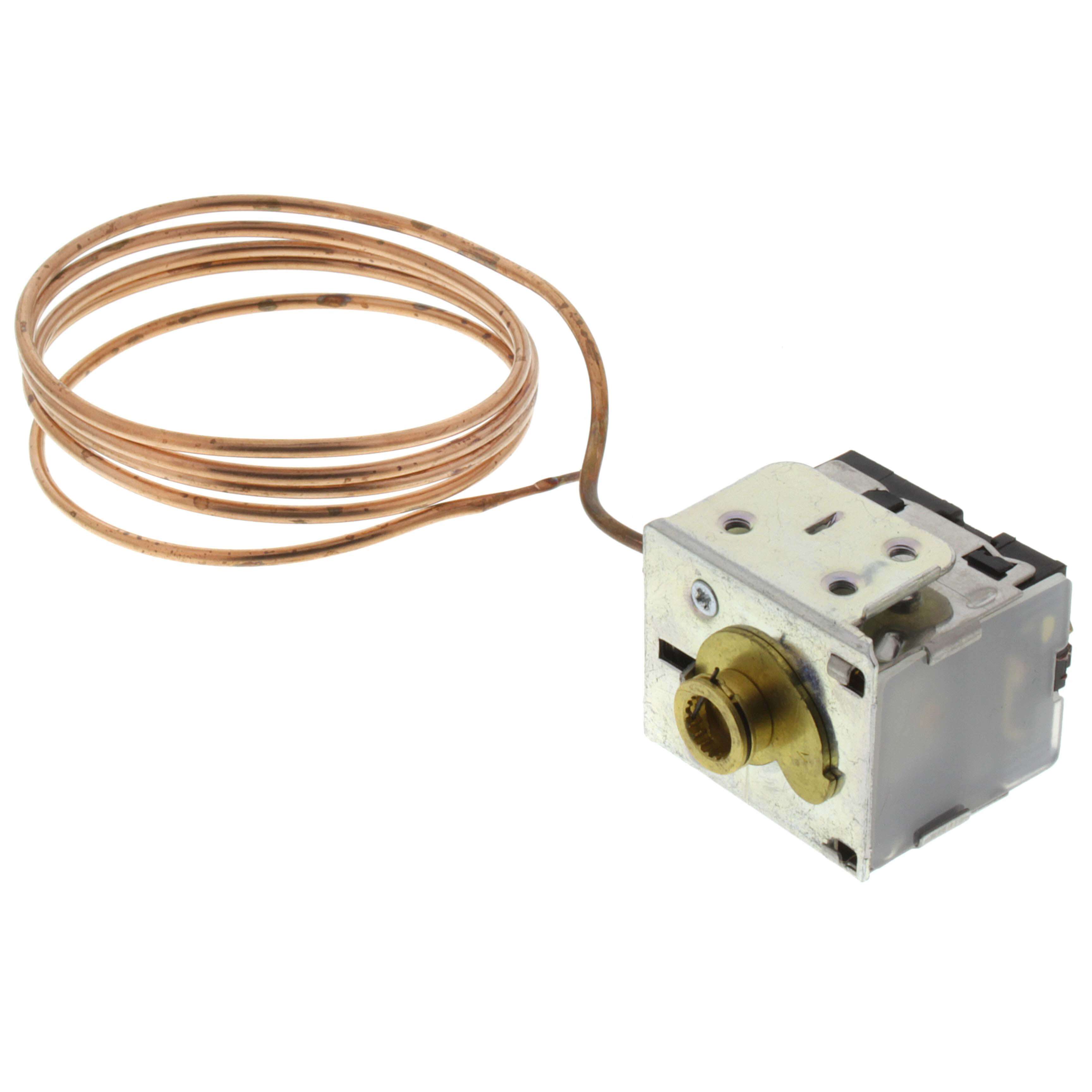

Robertshaw A30-180 SPST Constant Differential Control With 42 Capillary

Product Description

The Robertshaw A30-180 is a SPST Constant Differential Control equipped with a 42-inch capillary. This control is ideal for refrigeration and ice machine applications.

• Designed to activate electrical components based on temperature
• Laser-welded stainless steel bellows
• Pneumatic action from vapor-filled capillary

Product Highlights

The Robertshaw A30-180 SPST Constant Differential Control comes with features like high-amperage contacts, quick-connect terminals, and a sturdy stainless-steel build. It's designed for easy installation and is compatible with most commercial refrigeration systems.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: A30-180

Technical Specifications

• Switch Type: SPST
• Differential: 13°F
• Capillary Length: 42 inches
• Temperature Range: -4°F to 38°F
• Voltage: 24/120/240/277 VAC
• Cold On: 9°F
• Cold Off: -4°F
• Normal Off: 9°F
• Normal On: 22°F
• Warm On: 38°F
