Product Description

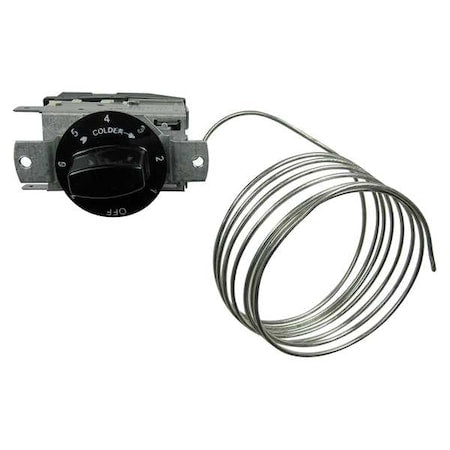

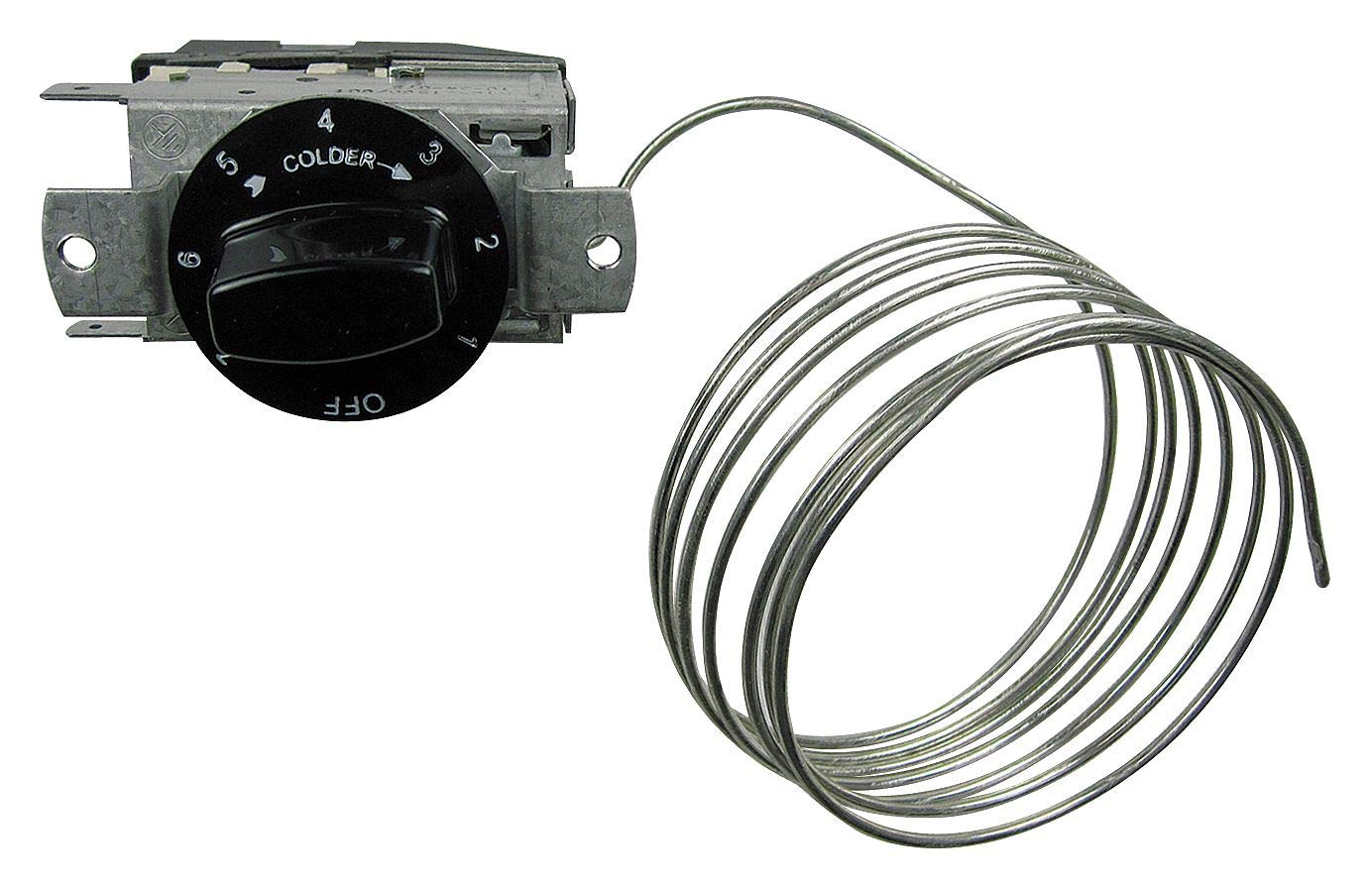

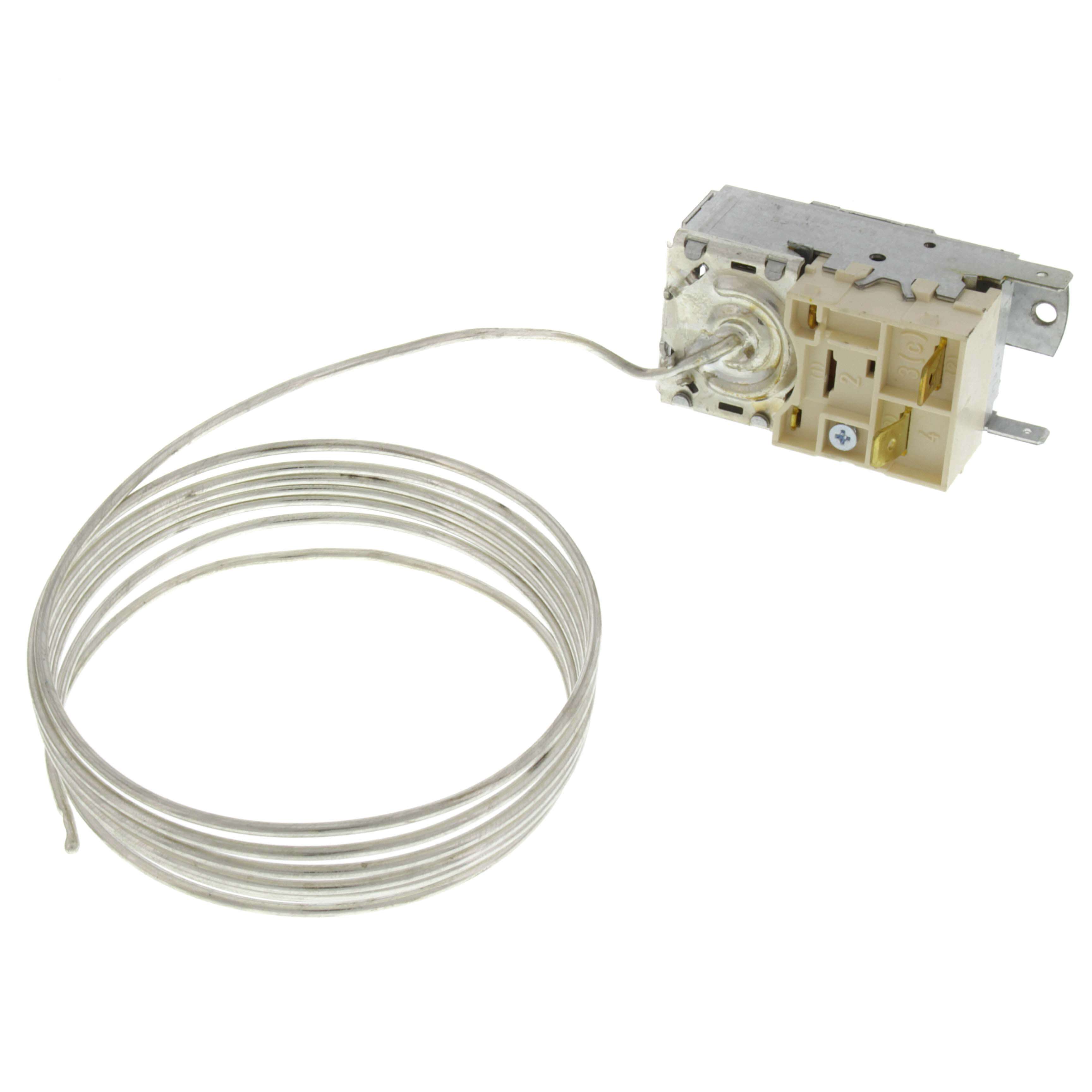

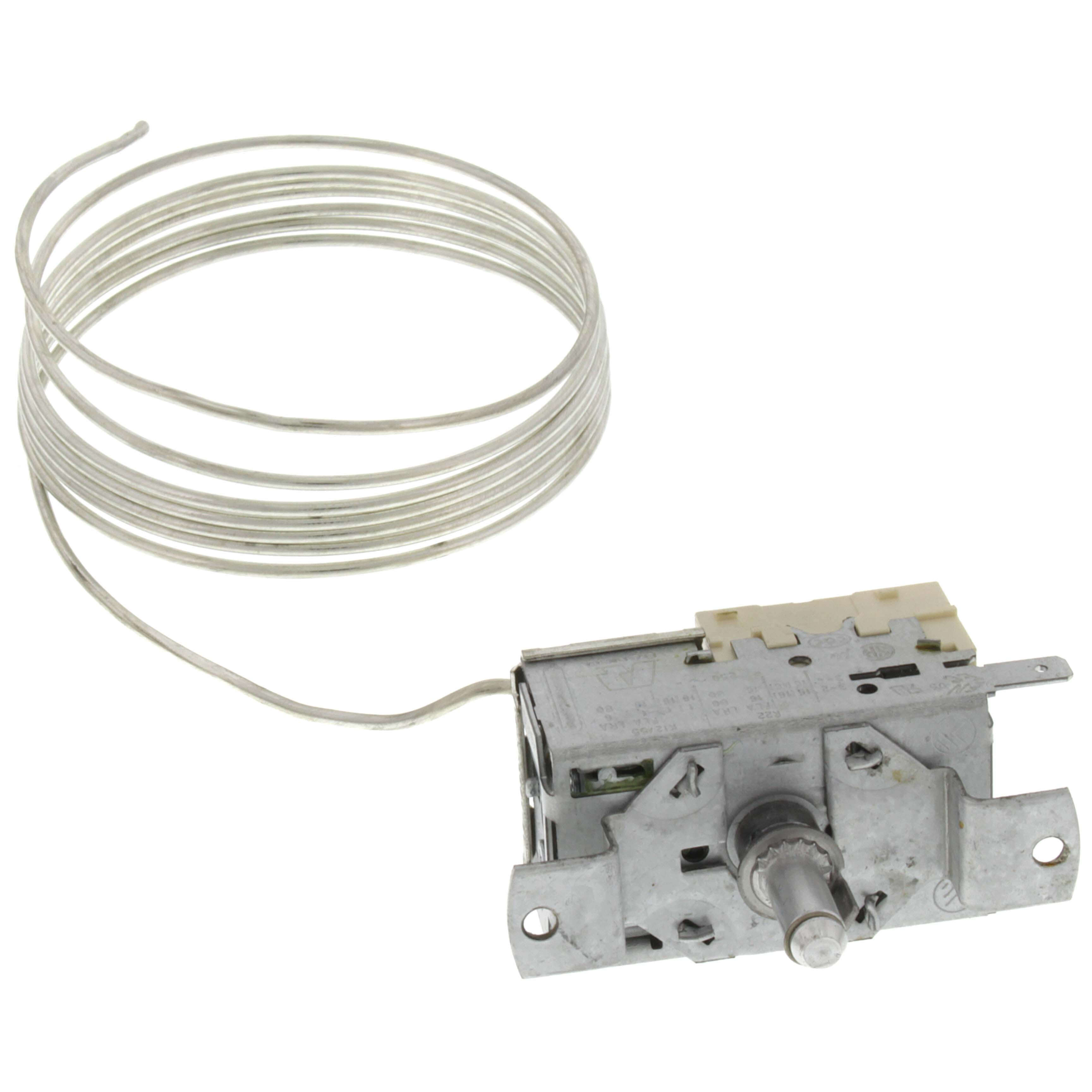

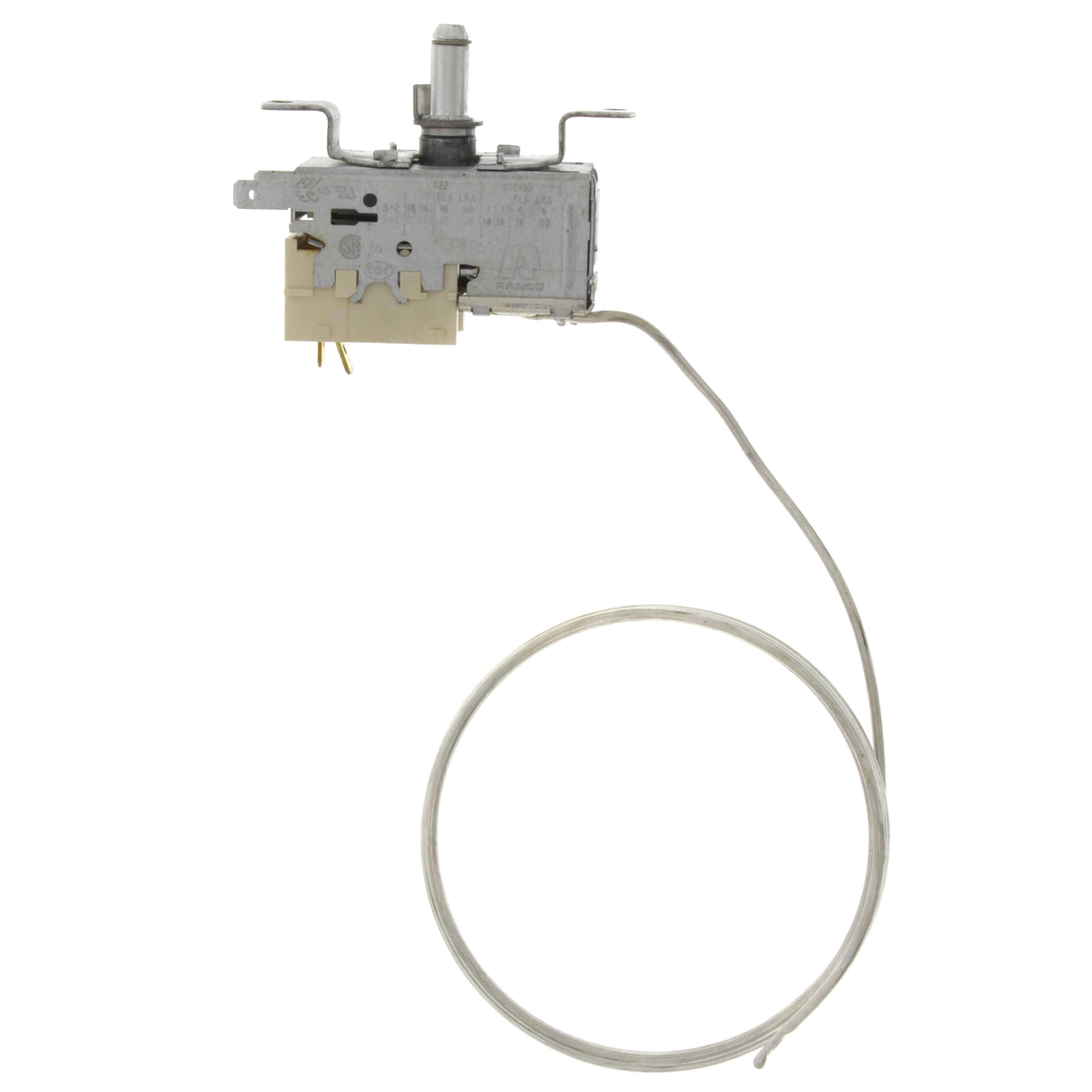

The RANCO A12-1560 temperature control is designed to switch electrical components of refrigeration systems in response to sensed temperatures. It features a 72 inch capillary and constant cut-in. This control is suitable for refrigeration applications and has UL (Canada and US) approval. Connection type is 1/4 Inch Quick-Connect.
- Laser-Welded Stainless Steel Bellows
- Fixed or Adjustable Temperature Settings
- High-Amperage Contacts
Product Highlights
Designed for refrigeration systems, the Ranco A12-1560 ensures precise temperature management with its durable construction and reliable switching capabilities.
Product Information
Standard Information
-
Brand: RANCO
-
Manufacturer Part Number: A12-1560
-
Country of Origin: Czechia
Technical Specifications
-
Application: Refrigeration
-
Approval: UL (Canada and US)
-
CATALOG NUMBER: A12-1560
-
Category: HVAC/R & Fans
-
Connection Type: 1/4 Inch Quick-Connect
-
Contact Rating: 16 Amp at 120/208/240 Volt AC (Full Load), 80 Amp at 120/208/240 Volt AC (Locked Rotor), Pilot Duty 240 Volt Amp at 120/208/240 Volt
-
Manufacturer Name: Ranco
-
Manufacturer Part Number: A12-1560
-
Series/Model: A12
-
Temperature Range: 19 Deg F (Cold Off), 38 Deg F (Cut In), 24 Deg F (Normal Off), 29 Deg F(Warm Off)
-
Type: 72 Inch Capillary, Constant Cut-In
-
UNSPSC Code: 41112200
-
Switch Action: SPST
-
Cold Off: 19 °F
-
Warm Off: 29 °F
-
Cut-In Off Temp: 38
-
Capillary Length: 72"
-
Normal Off: 24 °F
-
Voltage: 120/208/240V
-
Switch Type: Close On Rise
-
Full Load Amps: 16
-
Locked Rotor Amps: 80
-
Pilot Duty Contacts (VA): 240
-
Country of Origin (subject to change): Czechia
-
Included Components: Mounting Hardware and Dial
-
Item Weight: 3.2 ounces
-
Product Dimensions: 4 x 4 x 6 inches
-
Item model number: A12-1560
-
Part Number: A12-1560
-
Special Features: Recirculating
-
Material Type: copper
-
Batteries Required?: No
-
ASIN: B00EN8K4MO
-
Cut-In: 39°F
-
Capillary Tube: 76"
-
Cold Off Temperatures: 19°F (-7°C)
-
Cut-Off Temperature: 38°F
