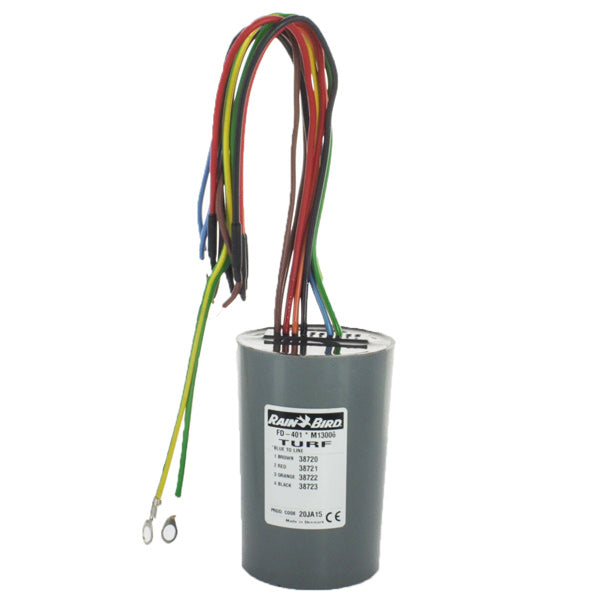

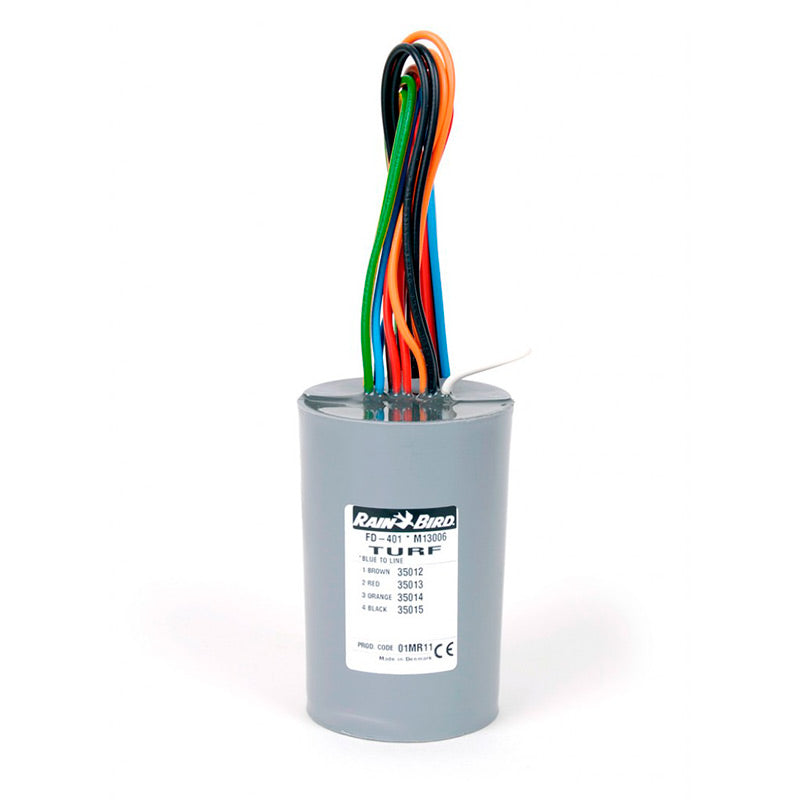

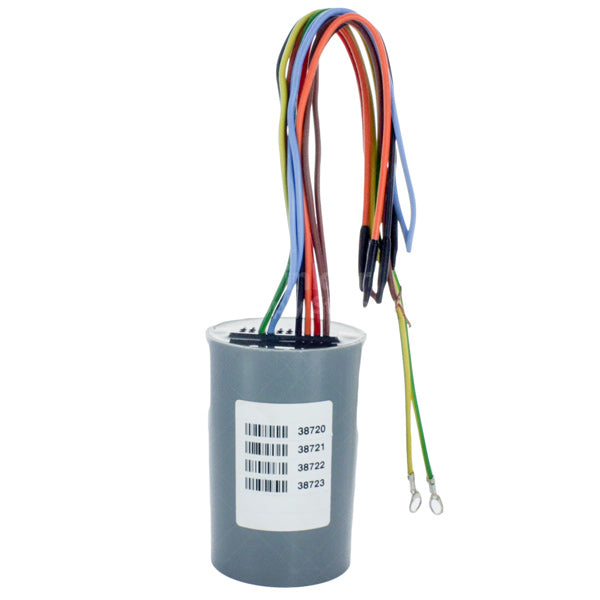

Rainbird FD401TURF FD Series 2-Wire Decoder - Signal Line, 4 Individual Valves

Product Description

The Rain Bird FD401TURF field decoder is designed for easy installation and expansion of the SiteControl Decoder or ESP-LXD Decoder Central Control Systems. This product operates up to four individual automatic irrigation valves. It is ideal for applications where protection from the elements and vandalism is necessary due to its hidden installation capability.

• Operates up to four individual automatic irrigation valves
• Fully waterproof; suitable for valve box or direct burial installation
• Factory pre-coded addresses simplify setup (no switches needed)

Product Highlights

This decoder ensures reliable operation in various environments.

Product Information

Standard Information

• Brand: Rainbird
• Model: FD401TURF

Technical Specifications

• Dimensions Length: 3.94 inches
• Dimensions Diameter: 2.56 inches
• Mounting: In valve box (recommended) or direct burial
• Power Draw: 1 mA (idle), 18 mA (per active solenoid)
• Solenoids: 1 to 4 with individual control
• Wires: Blue to cable, color-coded to solenoids
• Address: Pre-coded from the factory (no switches)
• Wire Size: 14 AWG
