Rainbird 300BPES Brass Master Valve 3 inches Replacement MPN

Product Description

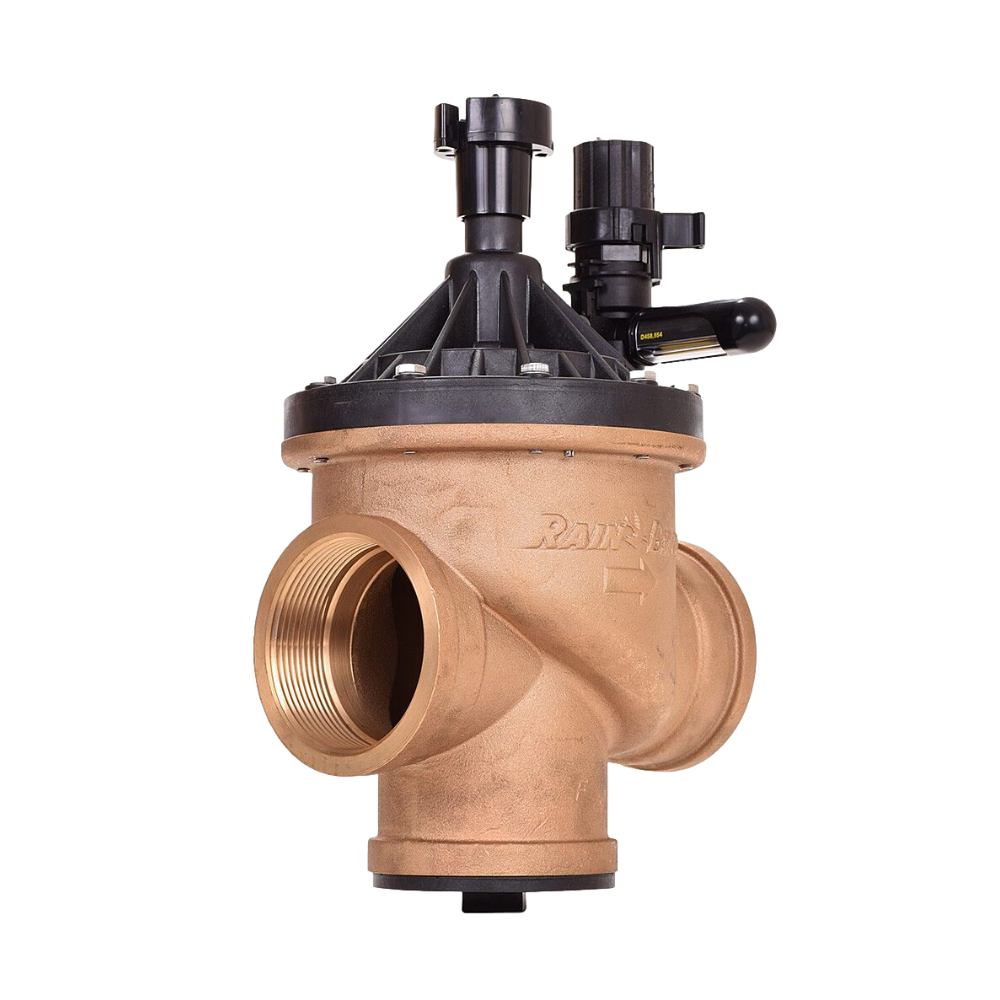

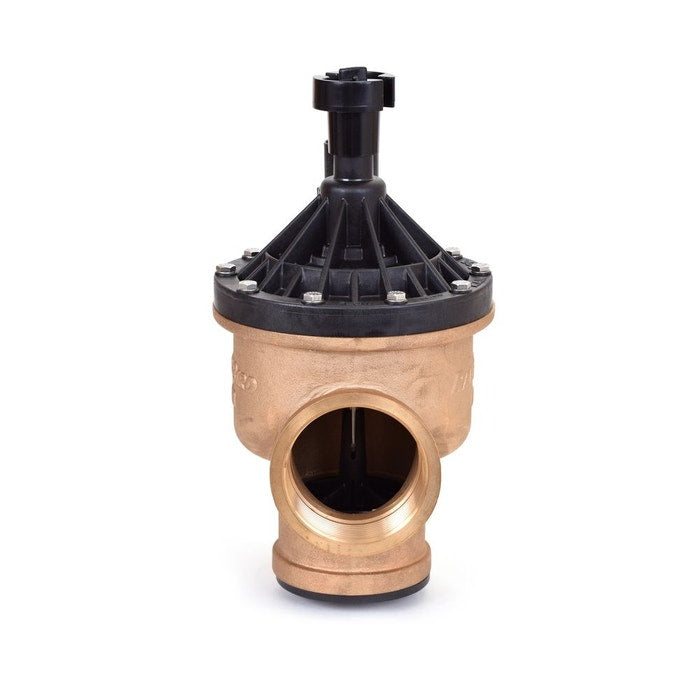

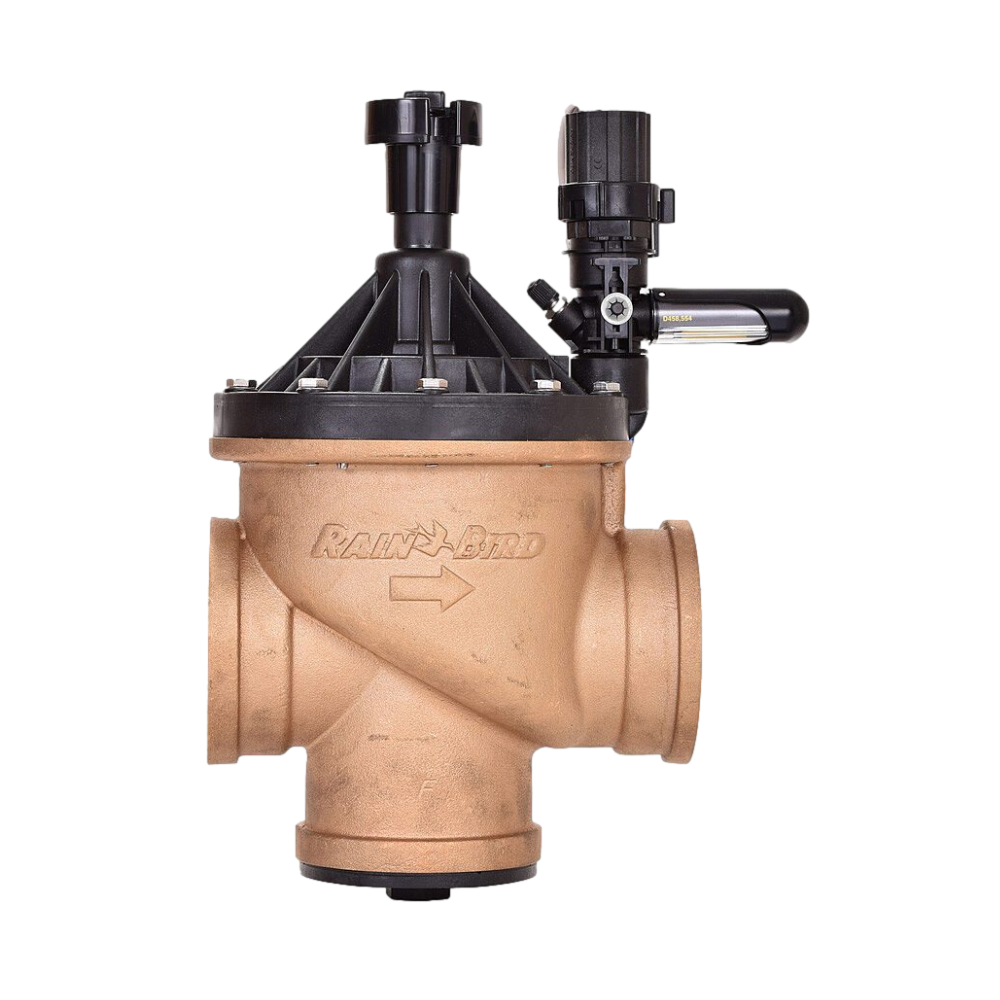

The Rain Bird 300BPES brass irrigation valve is designed for durability and effective performance. This valve features a brass body with a glass-filled nylon bonnet, ensuring it can withstand harsh conditions. The patented scrubber mechanism helps to eliminate dirt and particles that can cause blockages.

• Brass body and glass-filled nylon bonnet for durability

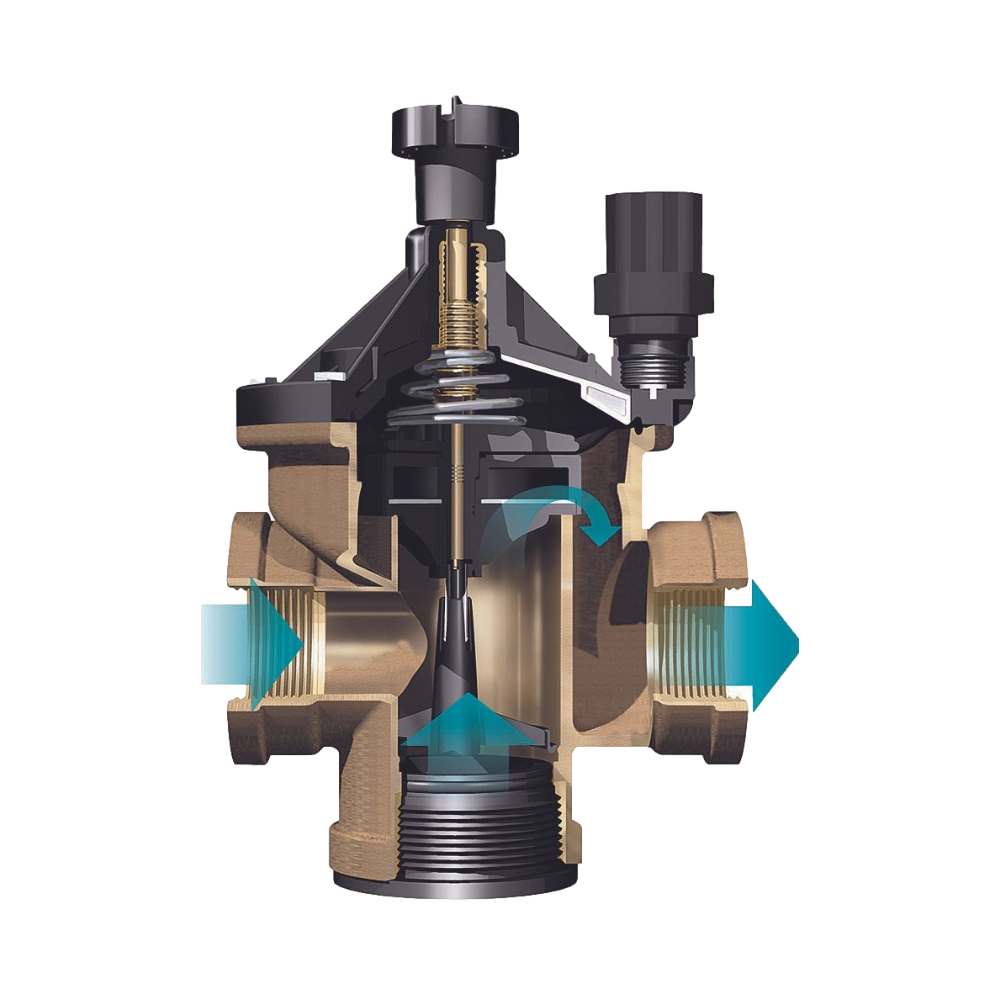

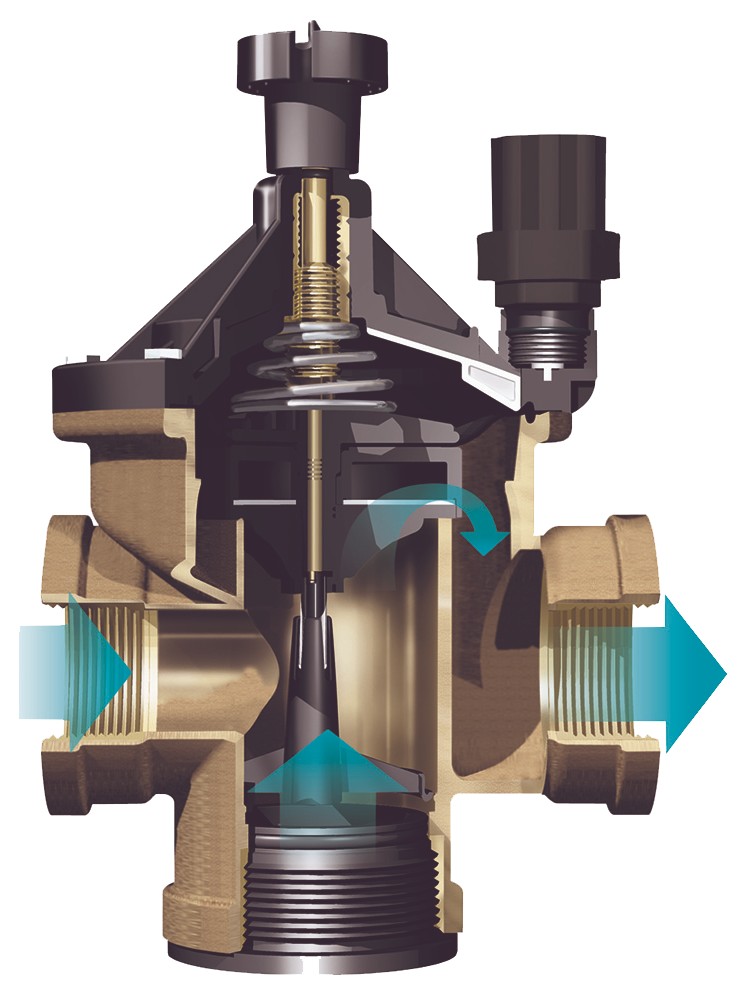

• Patented scrubber mechanism prevents debris build-up
• Manual internal and external bleed for easy maintenance

Product Highlights

This valve is ideal for commercial use and provides reliable pressure management.

Product Information

Standard Information

• Brand: Rain Bird
• Model: 300BPES

Technical Specifications

• Pressure: 20 to 200 psi (1.4 to 13.8 bar)
• Flow: 60 to 300 gpm (13.6 to 68.1 m3/h; 3.78 to 18.90 l/s)
• Temperature: Up to 140 degrees F (60 degrees C)
• Power: 24 VAC 50/60 Hz solenoid
• Height: 13 5/8 inches
• Length: 8 inches
• Width: 7 inches
• Valve Type: In-Line / Angle
• Material: Brass
