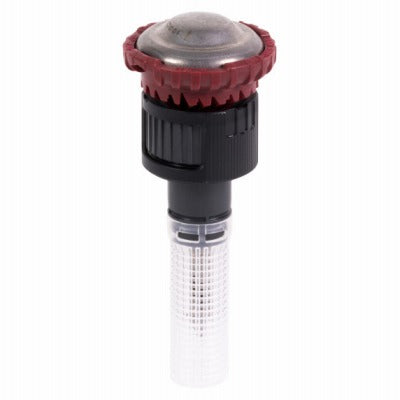

Rainbird 24RNVAPRO Rotary Adjustable Nozzle 17-24 Ft 25-pack

Product Description

The RAINBIRD NATIONAL SLS 24RNVAPRO is a high-efficiency rotary spray nozzle engineered for irrigation systems where water conservation and uniform coverage are priorities. The nozzle delivers rotating streams of large water droplets across an adjustable arc of 45 to 270 degrees, reaching distances from 17 to 24 feet. This design reduces runoff and wind-drift compared to conventional fixed-spray nozzles, making it suitable for turf and landscape applications. Licensed irrigation contractors and experienced installers handle this nozzle as a retrofit or new-install component in residential and light commercial spray-head systems. Each package contains 25 nozzles.

The 24RNVAPRO is suited for residential and commercial irrigation zones that currently use standard pop-up spray heads. It is designed to drop into existing pop-up bodies as a replacement for half-pattern and quarter-pattern spray nozzles, allowing retrofits without excavation or body replacement. The adjustable arc range of 45 to 270 degrees makes it adaptable to irregular turf shapes, corner beds, and narrow strips where fixed patterns waste water. Typical installations include HOA common areas, commercial landscaping, and residential lawn zones where runoff or overspray has been a documented problem.

Key Features

• Adjustable arc from 45 to 270 degrees for flexible coverage patterns
• Throws water 17 to 24 feet to match larger spray zones
• Rotating large-droplet streams reduce runoff and wind drift
• Self-flushing design: pull nozzle up while water is running to clear debris blockages
• Replaces existing pop-up half-pattern and quarter-pattern spray nozzles
• Sold in a 25-unit package for multi-head zone installations

Compatibility

Designed as a replacement for pop-up half-pattern and quarter-pattern spray nozzles. Per supplier data, this nozzle replaces items 259846 and 271971 spray heads.

Installation Notes

Installation should be performed by a licensed irrigator or qualified landscape contractor in accordance with local water district requirements and applicable plumbing codes. Shut off the irrigation controller and close the zone valve before removing the existing nozzle. Confirm the pop-up body thread size is compatible before seating the new nozzle. Adjust the arc pattern with the appropriate nozzle adjustment tool before returning the system to automatic operation.
