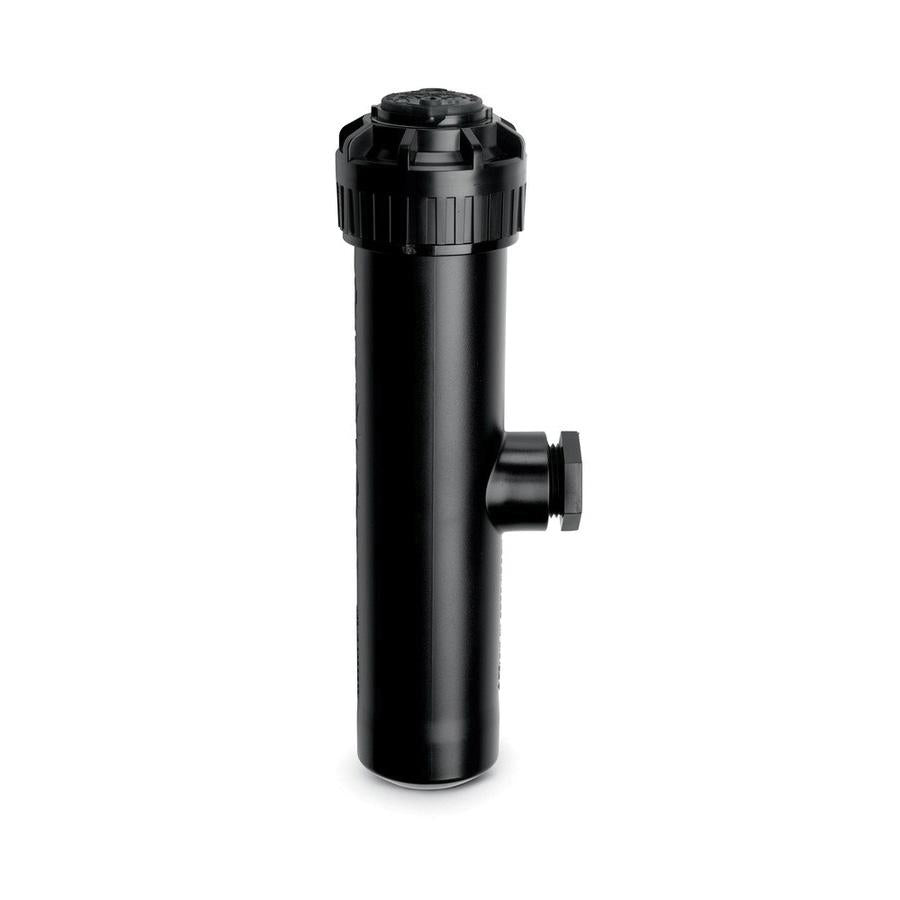

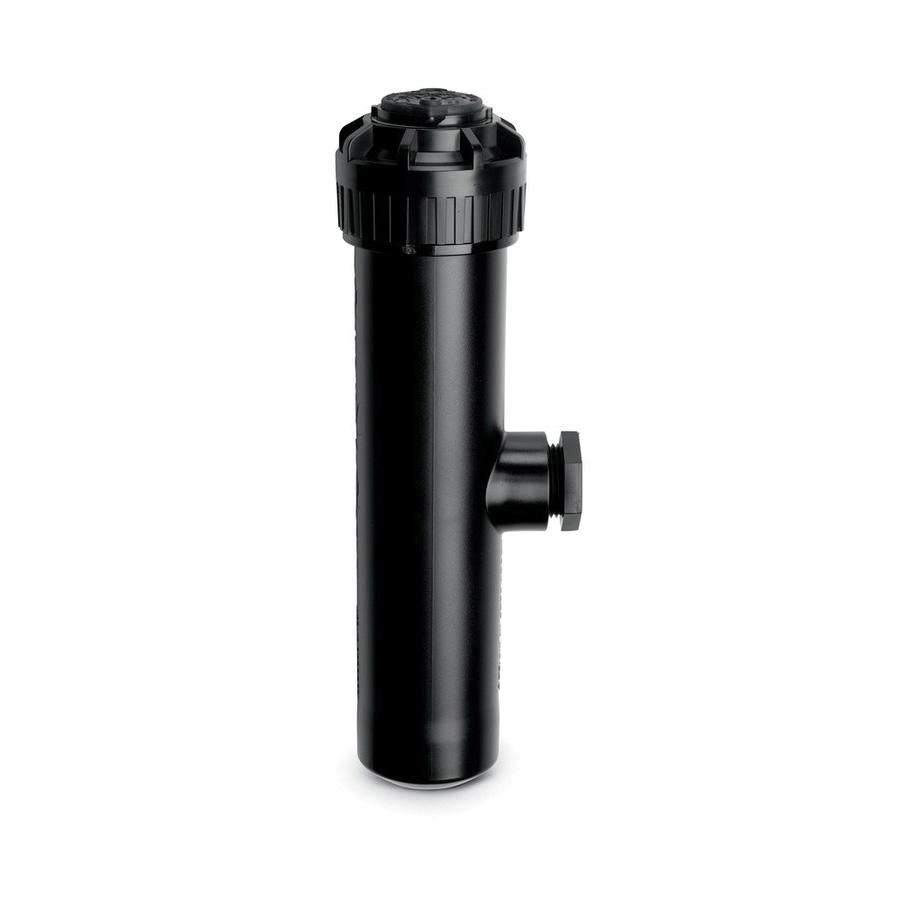

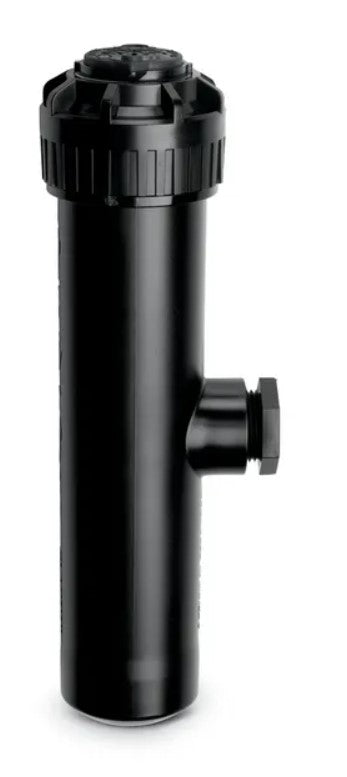

Rain Bird Y65850 5006+PCSR 6 in. 5000 Series Part-Circle Pop-Up Rotor (40-360 degrees)

Product Description

Rain Bird Y65850 is a 5000 Series 6 in. part-circle pop-up rotor with factory-installed PRS pressure regulation and a SAM check valve. It provides adjustable coverage from 25 to 50 ft, an adjustable arc from 40 to 360 degrees, and Rain Curtain nozzles for larger droplet distribution. The unit features a 3/4 in. female NPT inlet, flow shut-off capability, and a pressure-activated wiper seal for debris resistance; operating pressure is 25 to 65 PSI.

• Built-in PRS pressure regulating stem and SAM check valve (holds up to 7 ft elevation) to maintain nozzle pressure and prevent low-head drainage
• Adjustable arc 40 to 360 degrees, radius reduction screw allowing up to 25% radius reduction, coverage radius 25 to 50 ft
• 6 in. pop-up height, 3/4 in. female NPT inlet, flow rate 0.73 to 9.63 gpm, precipitation rate 0.20 to 1.01 in/hr

Product Highlights

6 in. pop-up part-circle rotor with PRS pressure regulation, SAM check valve, Rain Curtain nozzle, adjustable 40-360 degree arc, 25-50 ft radius.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: Y65850

Technical Specifications

• Brand: Rain Bird
• MPN: Y65850
• Model: 5006+PCSR
• Series: 5000 / 5000 Plus
• Type: Part-circle pop-up rotor
• Pop-Up Height: 6 in.
• Coverage Arc: 40 to 360 degrees (reversing full/part-circle)
• Coverage Radius: 25 to 50 ft
• Operating Pressure Range: 25 to 65 PSI
• Flow Rate: 0.73 to 9.63 gpm
• Precipitation Rate: 0.20 to 1.01 in/hr
• Inlet / Connection: 3/4 in. NPT female bottom threaded inlet
• Pressure Regulator: PRS (pressure regulating stem) - factory installed
• Check Valve: SAM (Seal-A-Matic) check valve, holds up to 7 ft (2.1 m) elevation
• Flow Shut-Off: Yes (Plus model flow shut-off capability)
• Nozzle: Factory-installed Rain Curtain nozzle
• Radius Reduction: Radius reduction screw allows up to 25% reduction without changing nozzles
• Wiper Seal: Pressure-activated multi-function wiper seal
• Construction Notes: Gear drive with reinforced flow path, additional O-rings/seals for gritty water; stainless steel components for listed models
