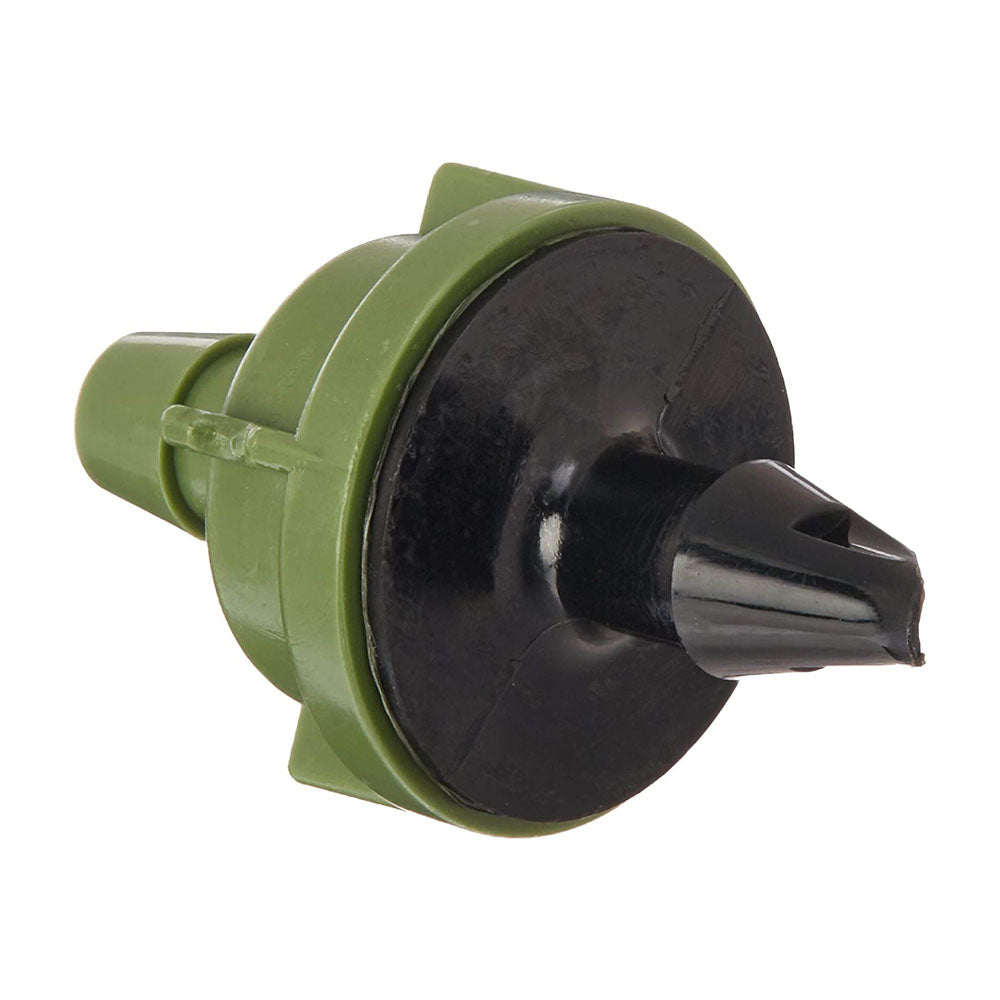

Rain Bird X71010 PC10 - Pressure-Compensating Module 10.0 GPH Barb Inlet

Product Description

The RAIN BIRD X71010 PC10 is a single-outlet, pressure-compensating module designed for watering larger shrubs and trees. This emitter features a barb inlet and delivers a consistent flow rate of 10 GPH across an operating pressure range of 10 to 50 psi. It is engineered for easy installation into 1/2 inch or 3/4 inch drip tubing, requiring 100-mesh filtration for optimal performance.

• Most compact and unobtrusive emitters
• Pressure-compensating design delivers uniform flow throughout a wide pressure range (10 to 50 psi; 0.7 to 3.5 bar)
• Self-piercing barbs for quick one-step emitter insertion into 1/2 in. or 3/4 in. drip tubing

Product Highlights

Compact, pressure-compensating emitter with self-piercing barbs for easy installation and uniform flow.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: X71010

Technical Specifications

• Model: PC10
• Emission Device Type: Single-outlet Emitter
• Inlet Type: Barb
• Flow Rate: 10 gph
• Operating Pressure Range: 10 to 50 psi (0.7 to 3.5 bar)
• Required Filtration: 100-mesh (150-micron)
• Outlet Type: Barbs for 1/4" Distribution Tubing (XQ)
• Material: Durable UV-resistant plastic
• Identification: Color-coded to identify flow rate
