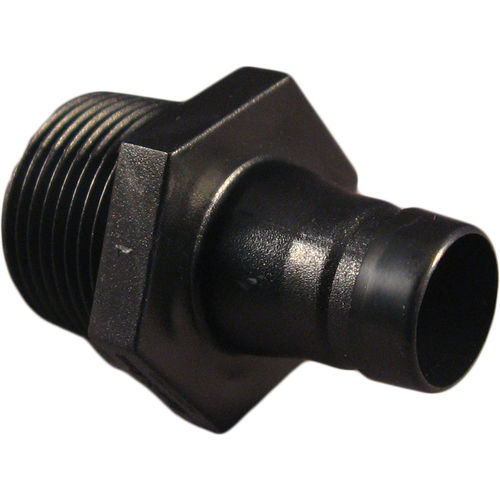

Rain Bird X43004 Easy Fit Compression Adapter 3/4 inches

Product Description

The RAIN BIRD X43004 Easy Fit Compression Adapter connects your drip system to threaded fittings. Features a 3/4-inch male pipe thread on one end and an Easy Fit compression connection on the other. Reduces installation force by up to 50%, saving time and energy. Fits most 1/2 inch tubing with outer diameters between 0.630" and 0.669".

• Reduces installation effort by up to 50%
• Fits 1/2-inch drip tubing with outer diameters from 0.630" to 0.669"
• Supports over 160 configurations

Product Highlights

The RAIN BIRD Easy Fit compression adapter makes irrigation setup and maintenance easier. Part of the Easy Fit compression fitting system, this adapter is a versatile, durable solution for efficient water management.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: X43004

Technical Specifications

• Connector Type: Barb, Adapter
• Exterior Finish: Brass
• Size: 0.75 Inch
• Model: MDCF75MPT
• Operating Range: Pressure: 0 to 60 psi (0 to 4.1 bar)
• Accepts tubing O.D.: of 0.630" to 0.669" (16 -17mm)
• Fitting Type: Adapters
• Connection Size: 3/4"
• Connection Type: MPT x Comp
• Material: ABS
• Pressure Rating: 60 PSI
• Product: Adapter
• Use: Drip
• Part Number: RBLMDCF75MPT
• For Use With: 0.63 to 0.669 in. OD Tubing
• MFG Number: X43004
• UPC: 753810016678
• Nominal Size: 3/4 in.
• End Connection 1: Male
• End Connections: Male
• Fitting Size 1: 3/4
• Fitting Sizes: 3/4 in
