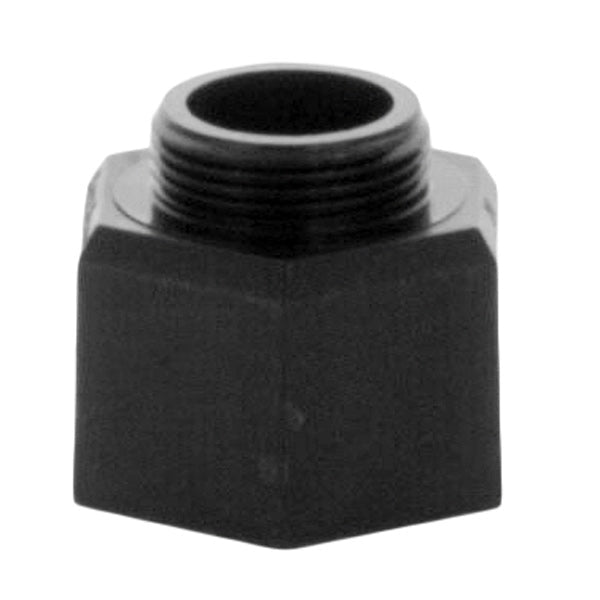

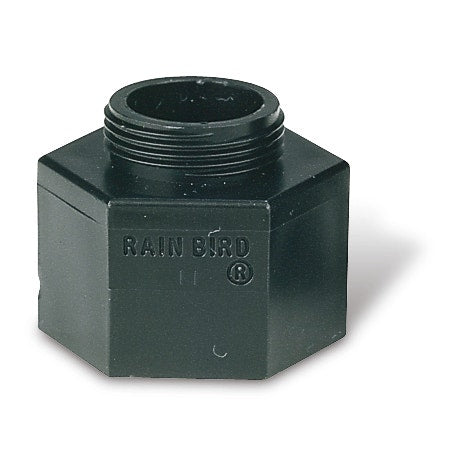

Rain Bird PA-8S Plastic Shrub Adapter for Nozzles 1/2-Inch MPT

Product Description

The RAIN BIRD PA-8S plastic shrub adapter connects Rain Bird spray and rotary nozzles to 1/2" (15/21) MPT threaded risers. It allows irrigation of groundcover and shrub areas with reliable performance. Constructed from durable, non corrosive thermoplastic, the PA-8S is designed for long outdoor service and accepts common nozzle filters for cleaner operation.

• Adapts Rain Bird nozzles for use with 1/2" (15/21) NPT/MPT threaded risers for standard shrub and groundcover installations.
• Durable, non corrosive plastic construction resists UV and outdoor exposure for dependable season-after-season use.
• Fine top threads accept all Rain Bird nozzles, ensuring broad compatibility across the Rain Bird nozzle lineup.

Product Highlights

The adapter threads into the riser and receives the nozzle. It is compatible with nozzles sold separately for customizable spray performance.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: PA-8S

Technical Specifications

• Item Model Number: PA-8S
• Product Dimensions: 1 x 1 x 1 inches
• Item Weight: 0.16 ounces
• Model: PA8S
• Pressure (PRS Shrub Adapters): 15 to 70 psi (1,0 to 4,8 bar)
• Flow (PRS Shrub Adapters): 0.2 to 4.0 gpm (0,05 to 0,91 m3/h; 0,06 to 15,0 l/m)
• Height (PRS Shrub Adapters): 4.1" (10,4 cm)
• Inlet Threads (PRS Shrub Adapters): ½" (15/21) female
• Inlet Threads (Shrub Adapters): ½" (15/21) female
• Threads: Fine top threads accept all Rain Bird nozzles
