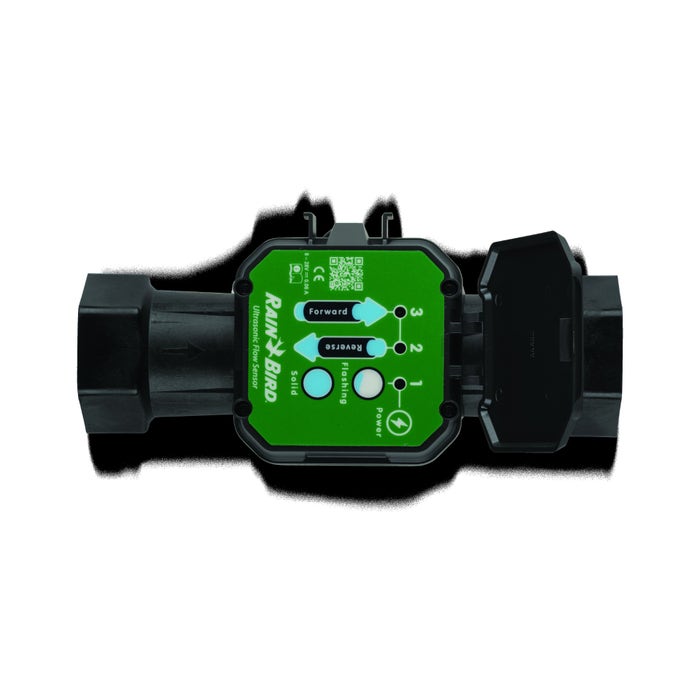

Rain Bird M80132 UFS200 ultrasonic flow sensor NPT 2in

Product Description

The RAIN BIRD M80132 UFS200 Ultrasonic Flow Sensor is a 2-inch NPT device designed for precise flow monitoring in irrigation systems. It enables key controller features like Flo-Watch for leak detection and automatic zone shutdown, and Learned Flow for accurate station flow rates. This sensor operates reliably across a wide flow range of 1.0 - 200 GPM, ensuring efficient water management and system optimization.

• No straight-pipe requirement, allowing flexible installation even after bends or valves.
• Reads very low and high flow rates, providing comprehensive monitoring with a single sensor.
• Features no moving parts for enhanced reliability and easy winterization without removal.

Product Highlights

Reliable ultrasonic flow sensor with no moving parts, flexible installation, and wide flow range for efficient irrigation control.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: M80132

Technical Specifications

• Model: UFS200
• Flow Range: 1.0 - 200 GPM
• Accuracy: +/- 2% across full flow range
• Velocity: 2-20 Feet (0.6-6.1 meters) per second
• Working Pressure: 200 PSI
• Working Temperature: 32° - 150° F (0° - 65° C)
• Configuration: For ESP-LXIVM Two-Wire Systems: the Flow Sensor is installed with a Two-Wire Sensor Device (LXIVMSEN); For ESP-LXD Decoder Systems: the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF); For ESP-LXME2 PRO Systems: the Flow Sensor is attached to the flow terminals on the FSM-LXME2 PRO Base Module; For ESP-LXME Systems: the Flow Sensor is attached to the FSM-LXME Flow Smart Module; For (Hard Wire) Two-Wire Satellite Systems (Maxicom²® and SiteControl): the Flow Sensor is installed with a Pulse Transmitter and a Rain Bird Pulse Decoder (DECPULLR); For Link Radio Satellite Systems (Maxicom² and SiteControl): the Flow Sensor is installed with a Pulse Transmitter (no pulse decoder required); For ESP-SITE Satellite Systems (Maxicom): the Flow Sensor is installed with a Pulse Transmitter (no decoder required); For SiteControl Decoder Systems: the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF); *Surge protection (FSSURGEKIT) is recommended for Maxicom and SiteControl systems – One at the Pulse Transmitter, and if more than 50’ of wire run, one at the Flow Sensor. FSSURGEKIT is not compatible with ESP-LXMEF and ESP-LXD Controllers
• Sensor Size: 2 in.
• Sensor Type: Flow
