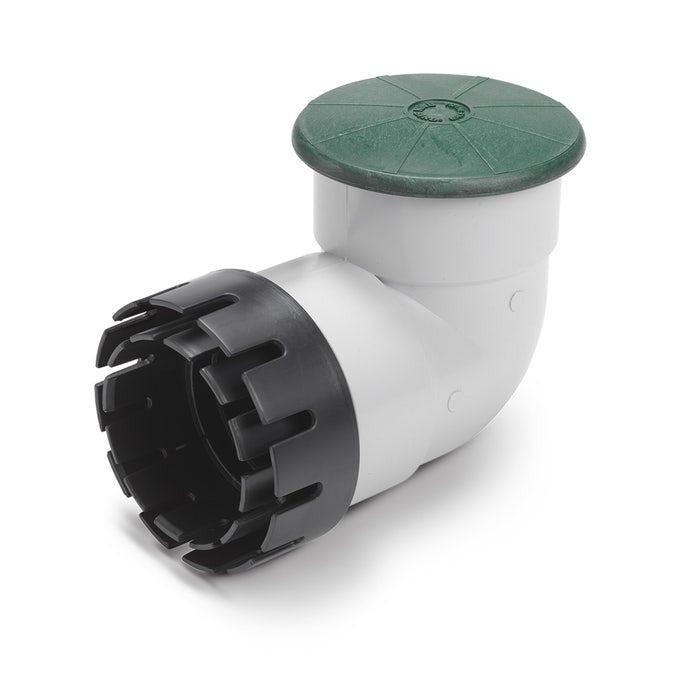

Rain Bird dpuv4ehub Pop Up Drainage Relief Valve

Product Description

The RAIN BIRD dpuv4ehub is a pop-up drainage relief valve designed to manage hydrostatic pressure at the discharge end of a drainage pipe. Normally closed, the valve cap rises automatically when pressure builds inside the drainage line, releasing excess water. Once discharge is complete, a stainless steel spring retracts the cover flush with the surrounding surface. The unit ships with a 4-inch PVC elbow and hub fitting adapter, making it a complete drain-end assembly. It is manufactured from structurally foamed High Density Polyethylene (HDPE) with a UV inhibitor to limit sun damage over extended outdoor exposure.

This valve is used at the terminal end of residential and light commercial drainage systems, including French drains, area drains, and subsurface drainage runs. Because the cover retracts to a flush position when not in service, it integrates cleanly into turf, hardscape, or landscape beds without creating a significant surface obstruction. Installation in either a vertical or horizontal orientation is supported, giving the installer flexibility when routing drainage pipe to a discharge point. Landscape contractors, irrigation specialists, and plumbers are the typical trades involved in this type of installation.

Key Features

• Normally closed design opens only under hydrostatic pressure buildup
• Stainless steel spring automatically retracts cover to flush closed position after discharge
• Includes 4-inch PVC elbow and hub fitting adapter for complete drain-end assembly
• Structurally foamed HDPE construction resists impact and long-term weathering
• UV inhibitor reduces surface degradation from direct sun exposure
• Installs in vertical or horizontal orientation for routing flexibility

Compatibility

Designed as an OEM-style replacement or new-installation component for residential and light commercial subsurface drainage systems terminating with 4-inch PVC pipe.

Installation Notes

Installation is typically performed by a licensed irrigation specialist, landscape contractor, or plumber. Ensure all upstream drainage lines are clear and depressurized before connecting the valve assembly. The hub fitting adapter accepts standard 4-inch PVC pipe using solvent-weld cement in accordance with applicable plumbing codes. Confirm final grade and orientation so the flush cover sits at or just below the finished surface to prevent trip hazards and allow proper closure.
