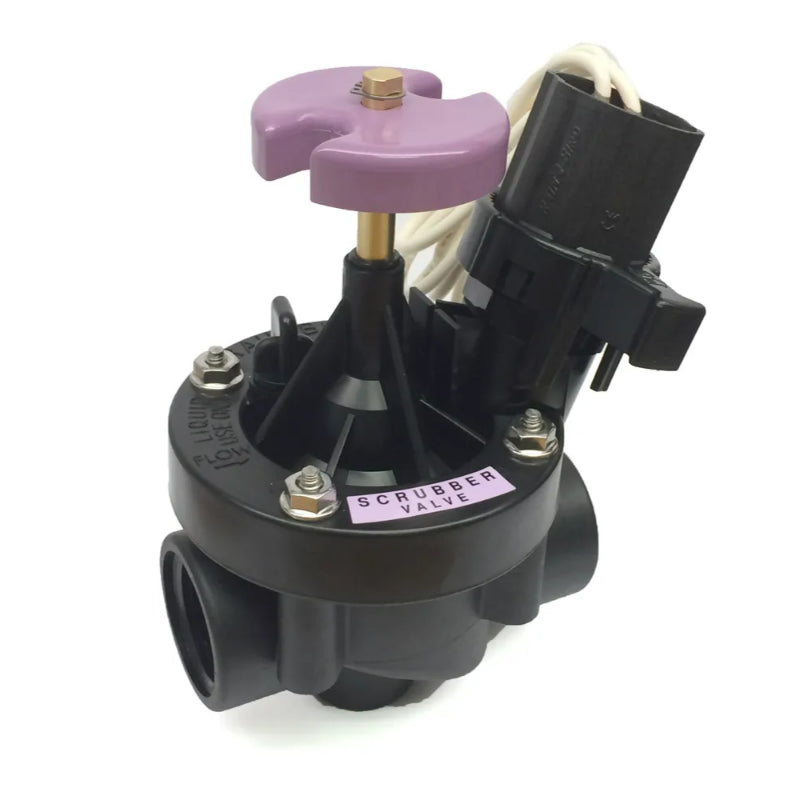

Rain Bird B37200 100PESBR 1 in. Inlet Inline Plastic Industrial Irrigation Valve (For Reclaimed Water)

Product Description

The RAIN BIRD B37200 100PESBR is a reclaimed water irrigation valve, designed to handle chlorine and chemicals found in reclaimed water systems. PESB-R Series valves offer long life and efficient performance, even in harsh conditions. Constructed of heavy-duty, glass-filled nylon, these valves resist clogging and feature a patented scrubber to actively fight dirt and algae.

• Chlorine-resistant valve for reclaimed water irrigation applications.
• Durable glass-filled nylon construction for long life and heavy-duty performance.
• Scrubber mechanism scrapes stainless steel screen clean to break down grit and plant material.

Product Highlights

This 1-inch inline valve is ideal for industrial irrigation systems using reclaimed water, ensuring durability and resistance to clogging.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: B37200
• Country of Origin: USA

Technical Specifications

• Model: 100PESBR
• Valve Size: 1 in
• Valve Type: Inline
• Material: Plastic
• Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
• Valve Options: Dirty Water
• Valve Series: PESB-R
• Operating Temperature: Up to 150 F (66 C)
• Electrical Specifications: 24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.41A (9.9VA) Holding current: 0.14A (3.43VA) Coil resistance: 30-39 Ohms
• Flow Range: Without PRS-D: 0.25 to 200 GPM (0,06 to 45,40 m3/h; 0,02 to 12,60 l/s) With PRS-D: 5 to 200 GPM (1,14 to 45,40 m3/h; 0,32 to 12,60 l/s)
• Operating Pressure: 20 to 200 psi (1,38 to 13,80 bars)
• Voltage: 24 Volts
• Connection: FPT
• Flow Rate: 0.25 to 200 gpm
• Pressure: 20 to 200 psi
• Temperature: 150 deg F
• Nominal: 1 in
