Rain Bird B11502 33DRC Quick-Coupling Valve 3/4 inches

Product Description

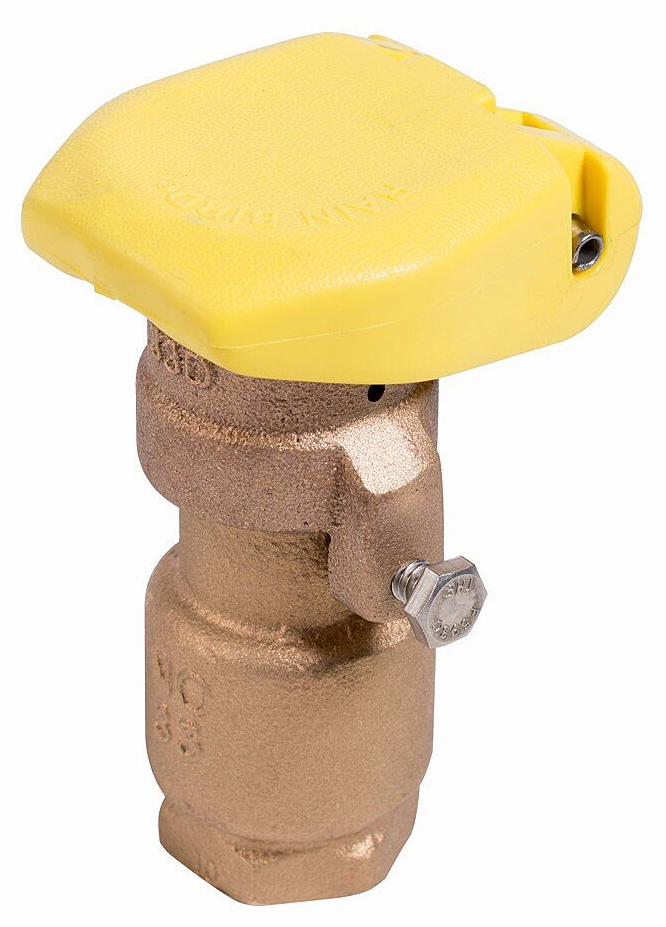

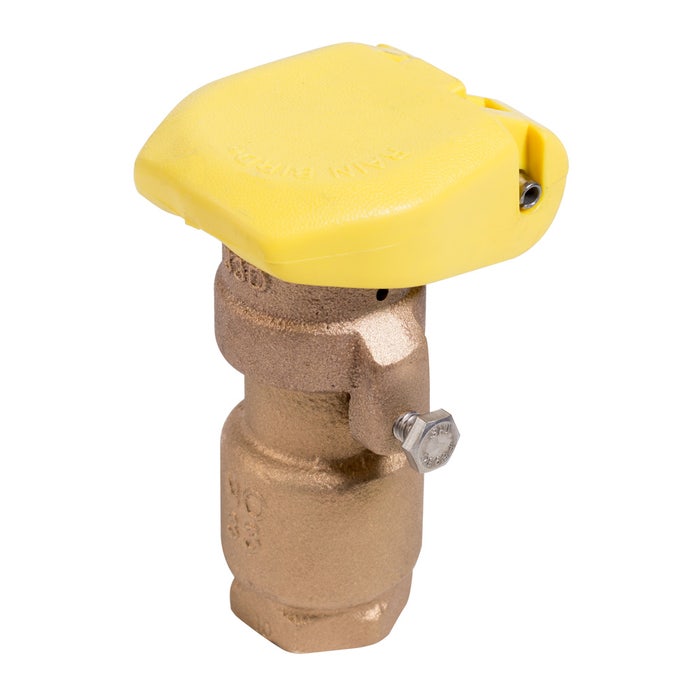

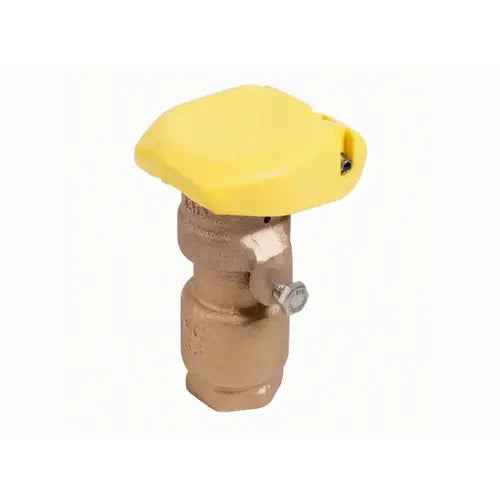

The RAIN BIRD B11502 33DRC is a 3/4" quick coupling valve with a 2-piece body and rubber cover. It features a thermoplastic cover for durability. The valve is constructed from red brass for long life and reliable performance. It provides convenient water access in potable and non-potable systems.

• Thermoplastic cover for durability
• Rugged, red brass construction for long life and reliable performance
• Reliable operation with strong corrosion-resistant stainless steel spring prevents leakage

Product Highlights

The RAIN BIRD quick coupling valve offers easy water access with a durable, corrosion-resistant design.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: B11502

Technical Specifications

• Material: Brass
• Brand: Rain Bird
• Exterior Finish: Stainless Steel
• Inlet Connection Size: 0.75 Inches
• Inlet Connection Type: Female Iron Pipe
• Outlet Connection Type: FNPT
• Number of Ports: 1
• Outlet Connection Size: 0.75 Inches
• Specification Met: ASTM, ISO 9001, MSS SP 72, MSS SP 80
• Connector Type: Pipe Fitting
• Thread Size: 3/4 inch
• Valve Type: Quick Coupling Valve
• Size: 3/4 inlet, 2 piece body
• Model: 33DRC
• Valve Size: 3/4 in
• Valve Options: Non-potable
• Body Material: Red Brass
• Connection Size: 3/4 in.
• Connection Type: NPT
• MFG Number: B11502
• UPC: 739390003628
• Flow Rate: 10 to 125 gpm
• Pressure Rating: 5 to 125 psi
• Series/Model: 33DRC
