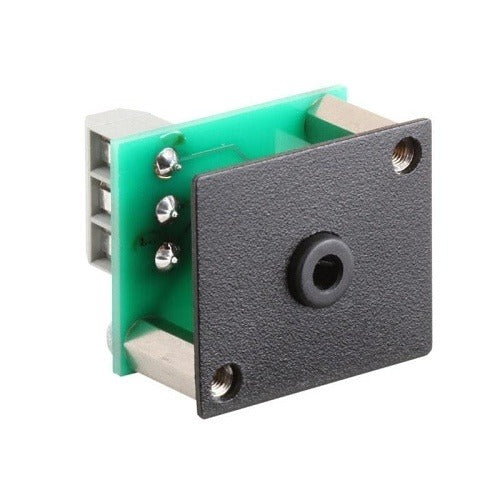

Radio Design Labs AMS-1/8F Stereo Mini-jack Connector

Product Description

The RADIO DESIGN LABS AMS-1/8F is a 1/8 inch stereo mini-jack connector designed for audio and video modular connection and insert applications. This female mini-jack provides a standard 3.5 mm stereo interface point in fixed installation audio systems. It is commonly used in wall plates, rack panels, and modular AV systems where a secure, recessed stereo audio port is needed. Installation is handled by AV system integrators and low-voltage technicians working in commercial or residential signal distribution environments.

The AMS-1/8F fits into modular connector and insert systems used in structured AV installations. It serves as a panel-mount or insert-style interface point for routing stereo audio signals through walls, furniture, or rack enclosures. It is sold and installed as a single unit, making it suitable for both new installations and retrofit applications where a clean, permanent stereo mini-jack port is required.

Key Features

• 1/8 inch (3.5 mm) stereo mini-jack female interface
• Designed for modular AV connector and insert systems
• Panel-mount or insert-style form factor for fixed installations
• Sold as a single unit for flexible quantity ordering
• Suitable for residential and commercial low-voltage AV applications

Compatibility

Designed as an insert-style stereo mini-jack for use in modular AV wall plate and panel connector systems requiring a 3.5 mm female stereo audio port.

Installation Notes

Installation is typically performed by licensed low-voltage or AV systems technicians. De-energize all connected audio equipment before installing or replacing modular connectors. Follow applicable local codes and manufacturer guidelines for low-voltage signal wiring in wall or rack enclosures. Avoid over-tightening retention hardware on modular insert frames to prevent damage to the connector body.
