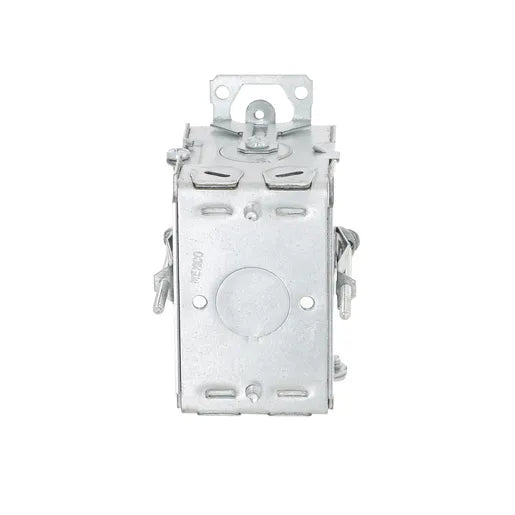

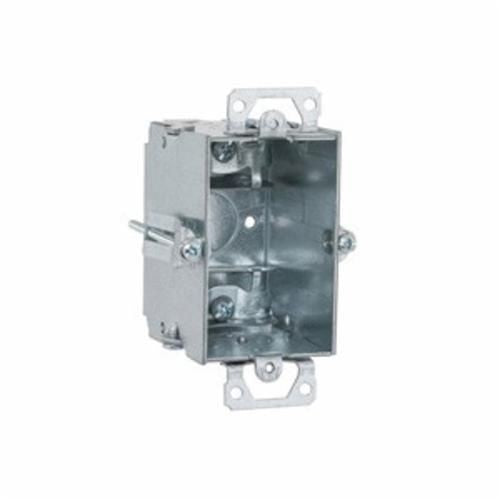

Raco 523 Switch Box 1-Gang

Product Description

The RACO 523 is a gangable steel switch box with a 12.5 cu. in. capacity. Designed to house wiring devices such as switches or outlets, it can be combined for multiple device installations. It features armored cable, metal clad, and flex cable clamps for secure wire management. Acceptable for use in 2-hour fire rated walls.

• BX clamps provided for steel & alum armored cable, MCI cable, MCI-A cable, and flexible conduit
• Gangable switch boxes offer the option of constructing a box to hold two or more devices
• Supplied with one 1/2 in. knockout

Product Highlights

The switch box includes plaster ears and Griptite clips for "cut-in" or "old work" applications.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 523
• Country of Origin: United States

Technical Specifications

• Catalog Number: 523
• Color: Gray
• Ends Cable: 4
• Fire Resistance: Yes
• Gangable: Yes
• Knockouts: 1/2 in
• Material: Steel
• Number of Gang(s): 1-Gang
• Plaster Ears: Yes
• Type: Switch Box Box
• UPC: 050169005231
• Wiring System: Armored Cable/Metal Clad/MCI-A/Flex
• Cubic Capacity: 12.5 cu.in
• Depth: 2.5 in
• Height: 4.219 in
• Width: 2.625 in
• Power Distribution Features: Fire Rated
• Certified Listed: UL Listed
• Number of Knockouts: 7
• Number of Outlets: 1
• Shape: Rectangular
• Application: For house wiring devices such as switches and outlets
• Standard & Approvals: UL E195978
• Cable Entry: Knockouts/Pryouts
• Capacity: 12.5 cu-in
• Finish: Pre-Galvanized
• Includes: Plaster Ears and GRIPTITE
• Brand: Raco
• MPN: 523
• Model: 523
• California Prop 65 Warning: No
• UL Listed: Yes
• Mounting Type: Threaded
