Raco 296 Round Ceiling Rated Box 1-1/2 in. Deep Five 1/2 in. KO's

Product Description

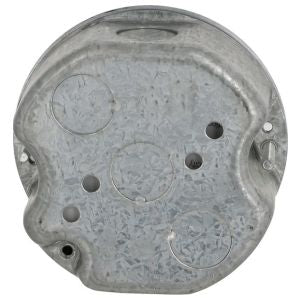

The RACO 296 is a 4 in. round ceiling rated box, 1-1/2 in. deep, with five 1/2 in. knockouts. Constructed of pre-galvanized steel, it ensures durability and longevity. It supports a ceiling fan weighing up to 70 lbs and a light fixture weighing up to 150 lbs.

• Constructed of pre-galvanized steel
• No protruding ground screw or fan mounting screws allows easy installation

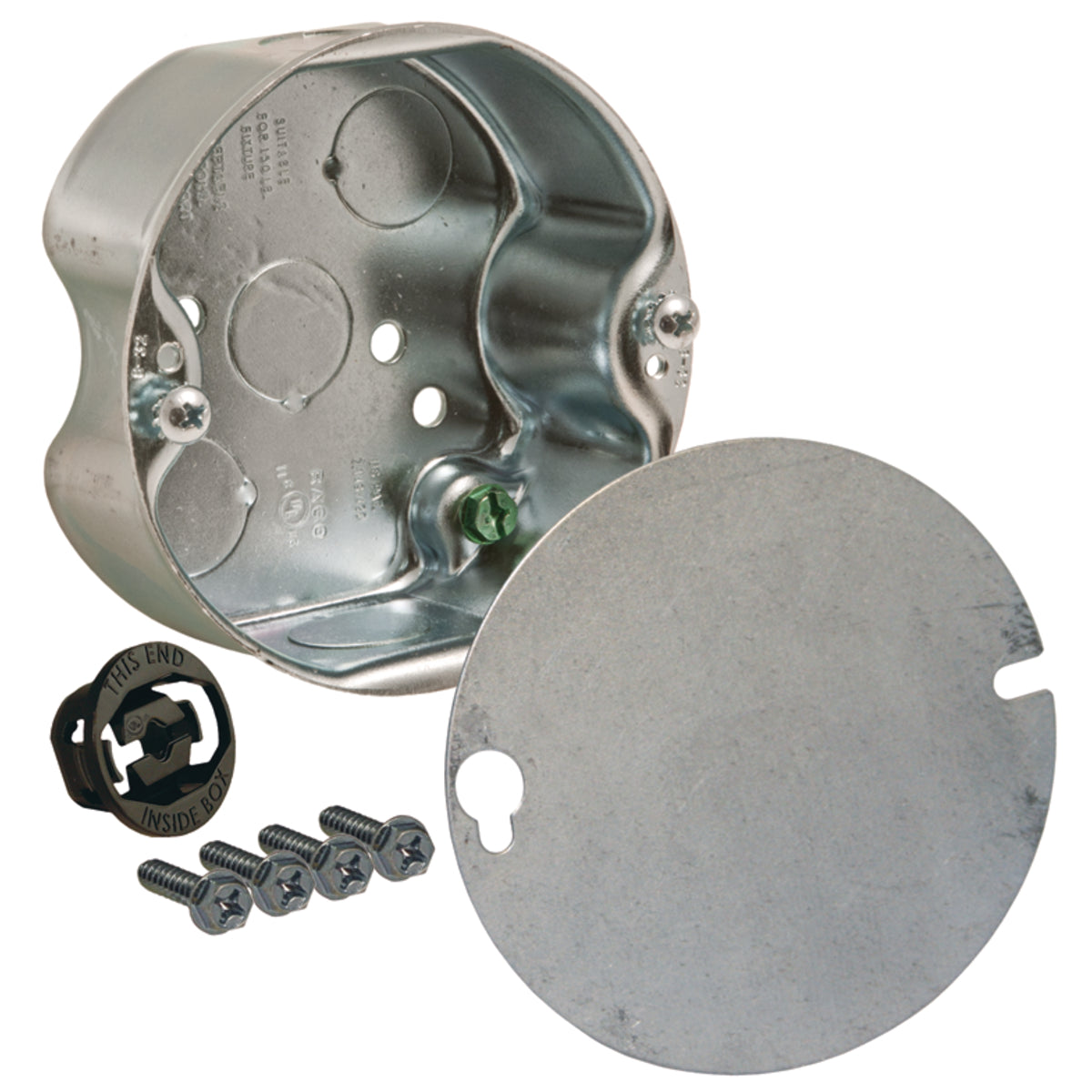

• Steel cover protects wires from damage, paint, and drywall compound during installation

Product Highlights

Ideal for ceiling fan and light fixture support, ensuring secure and easy installation.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 296
• Country of Origin: China

Technical Specifications

• Bracket Type: No Bracket
• Catalog Number: 296-1
• Ceiling Fan Rated: Yes
• Drawn or Welded: Drawn
• Fixture Type: Ceiling;Light
• Knockouts: 1/2 in
• Material: Steel
• Number of Gang(s): 1-Gang
• Size: 4 in
• Type: Box
• UPC: 050169029619
• Actual Depth: 1.563 in
• Ceiling Fan Lbs.: 70 lb
• Cubic Capacity: 15.8 cu.in
• Depth: 1.5 in
• Fixture Lbs.: 150 lb
• Height: 4 in
• Raised Ground: Yes
• Width: 4 in
• Certified Listed: UL Listed
• Rated to support 70 lb ceiling fan: Yes
• Rated to support up to 150 lb light fixture for new work applications: Yes
• Metal protection plate eliminates debris or damage to wiring: Yes
• #10-32, 1 in long ceiling fan screws provided: Yes
• No protruding ground screw or fan mounting screws allows easy installation: Yes
• 1-1/2 in deep: Yes
• 15.8 cu in capacity: Yes
• Brand Name: RACO
• Model Number: 296-1
• Manufacturer: Hubbell
• Part Number: 296-1
• Included Components: Round Ceiling Fan Mounting Box
• Style: Compact
• Finish Type: Painted
• Installation Type: Screw-In
• Specification Met: Ul
• Number of Knockouts: 5
• Shape: Round
• Mounting: Ceiling Mounting
• Suitable for: Ceiling Fan, Ceiling or Wall Light Fixture
• Includes: Mounting Hardware
• Cable Entry: 1/2 in
