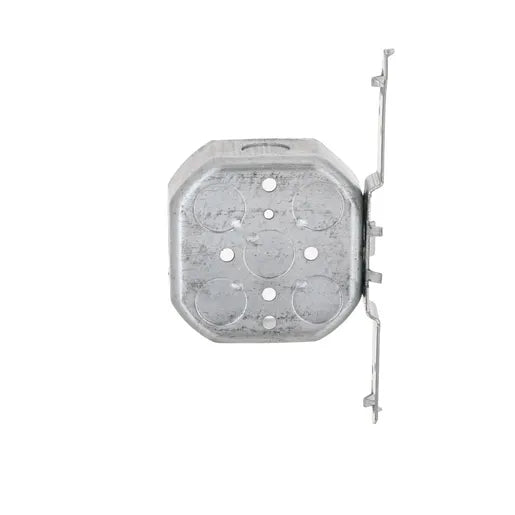

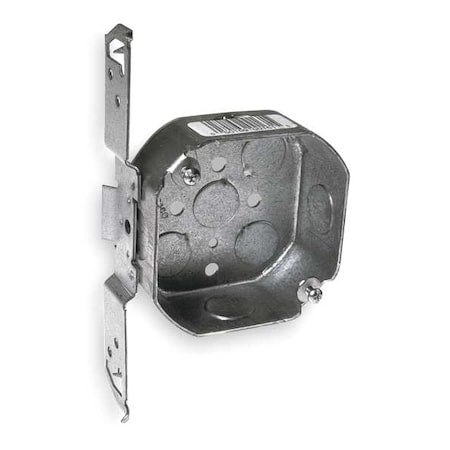

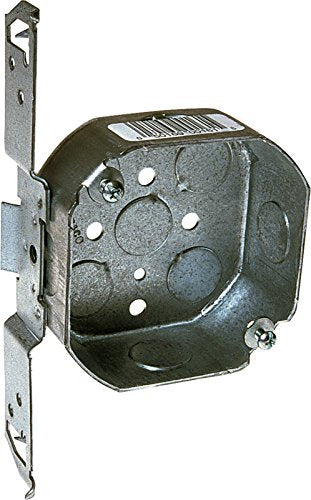

Raco 161 Octagon Electrical Box with Bracket

Product Description

The RACO 161 is an octagon electrical box with bracket. Constructed from galvanized steel, it features a 15.5 cu in capacity. Designed with 5 back knockouts and 3 side knockouts, each measuring 1/2 inch. Ideal for electrical applications requiring a secure and reliable junction box.

• Constructed from galvanized steel
• Features 5 back and 3 side 1/2 inch knockouts
• 15.5 cu. in. capacity

Product Highlights

The RACO 161 octagon electrical box is suitable for various electrical applications, providing a secure and reliable enclosure for wiring connections.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 161
• Country of Origin: Multiple

Technical Specifications

• Box Type: Octagon with Bracket
• Bracket Type: TS
• Capacity: 15.5 cu. in.
• Material: Galvanized steel
• Number of 1/2 In. Back Knockouts: 5.0
• Number of 1/2 In. Side Knockouts: 3.0
• Nominal Depth: 1-1/2"
• Nominal Length: 4"
• Nominal Width: 4"
• Standards: UL 514-A Listed, File E195978
• Item: Electrical Box
• Catalog Number: 161
• Ceiling Fan Rated: No
• Drawn or Welded: Drawn
• Knockouts: 1/2 in
• Size: 4 in
• Type: Box
• Wiring System: Conduit
• Depth: 1.5 in
• Fixture Lbs.: 50 lb
• Height: 7 in
• Raised Ground: No
• Approximate Depth: 2 in
• Approximate Height: 4 in
• Approximate Width: 4 in
• Manufacturer Part Number: 161
• UPC Code: 050169001615
• Applications: Electrical
• Cable Entry: Knockouts for conduit
• Construction: Drawn
• Product UPC: 05016900161
• Knockout Diameter: 1/2 in
• Mounting: Bracket, Screw On, Nail On
• Cubic Inches: 15.500 in ³
• Bracket Setback: 0.5
• EU RoHS Indicator: Contact Manufacturer
• Width: 4 in
• Length: 2 Inch
