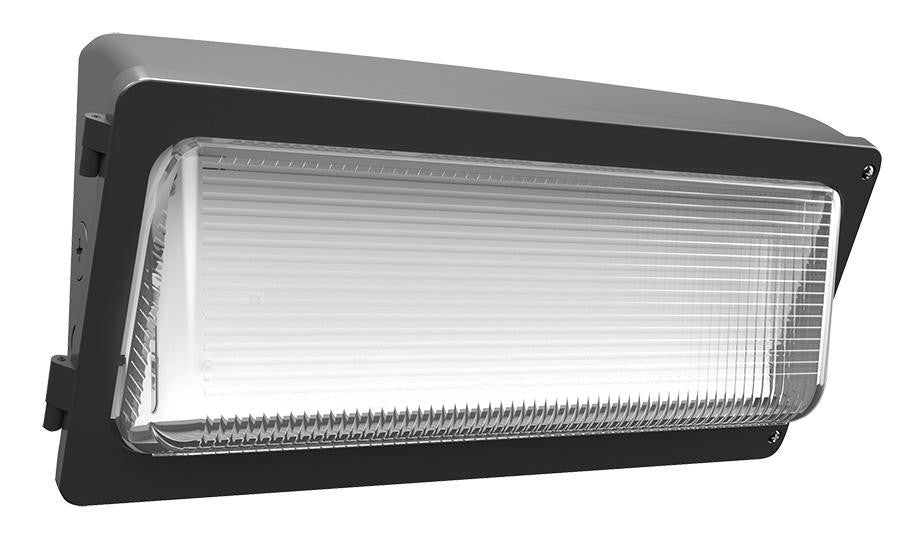

Rab WPX3/MVS Wpx Field-Adjustable Wall Pack 130W/100W/65W

Product Description

The RAB WPX3/MVS WPX field-adjustable wall pack is designed for long-lasting, energy-efficient LED illumination. This wall pack is wattage and color temperature selectable, allowing users to choose between different wattage levels and color temperatures. It features an integrated photocell and a traditional design that covers the footprint of outdated fixtures.

• 130W 3000/4000/5000K
• 100,000-Hour LED lifespan
• 0-10V dimming standard

Product Highlights

This wall pack is suitable for wet locations, has an IP65 rating

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: WPX3/MVS

Technical Specifications

• Field Adjustability: Field Adjustable
• Field Adjustable Light Output: 130W/100W/65W (factory default 130W)
• Color temperature selectable: 3000K, 4000K and 5000K (factory default 4000K)
• UL Listed: Suitable for wet locations
• IP Rating: Ingress protection rating of IP65 for dust and water
• DLC Listed: This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
• Driver: Constant Current, Class 1, 120-277V, 50/60 Hz
• 130W: 120V: 1.10A 208V: 0.63A, 240V: 0.55A, 277V: 0.48A
• 100W: 120V: 0.84A 208V: 0.48A, 240V: 0.42A, 277V: 0.37A
• 65W: 120V: 0.55A 208V: 0.32A, 240V: 0.27A, 277V: 0.26A
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
• THD: 130W: 4.08% at 120V, 7.17% at 277V 100W: 4.35% at 120V, 8.89% at 277V 65W: 5.11% at 120V, 12.15% at 277V
• Power Factor: 130W: 99.8% at 120V, 95.9% at 277V 100W: 99.7% at 120V, 93.7% at 277V 65W: 99.3% at 120V, 87% at 277V
• Photocell: Integrated photocell included with on/off switch
• Surge Protection: 6 kV
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency: 130W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS) 100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS) 65W: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Housing: Aluminum alloy
• Lens: Prismatic, heat-resistant borosilicate glass
• Reflector: Aluminum
• Gaskets: High-temperature silicone
• Cold Weather Starting: The minimum starting temperature is -40 F (-40 C)
• Maximum Ambient Temperature: Suitable for use in up to 104 F (40 C)
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Finish: Formulated for high durability and long-lasting color
• Mounting: Hinged wiring access and conduit entries on the back sides, top and bottom make installation a snap
• Sensor Settings: Microwave Motion Sensor Microwave based technology occupancy sensor that automatically affect the operation of lighting equipment based upon detecting the presence or absence of people in a space.
• Factory Settings: Brightness: 100% Hold Time: 20 Minutes Daylight: Disabled Sensitivity: 100% Stand-by dimming level: 20% Stand-by time: 1 Minute
• Remote Control: Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.
• Brand: RAB
• DLC Product ID: S-10CCLB
• Manufacturer Part Number: WPX3/MVS
• Lumens: 18,635 Lumens
• Wattage: 130 Watts
• Input Voltage: 120-277V
• Dimmable: 0-10V
• Color Temperature: 3000K, 4000K, 5000K
• Rated Hours: 100,000 Hours
• Min Operating Temp: -40 Degrees F
• CRI: 80+
• Special Features: CCT Selectable, Occupancy Sensor Installed, Photocell Installed, Wattage Selectable, Wet Location Rated

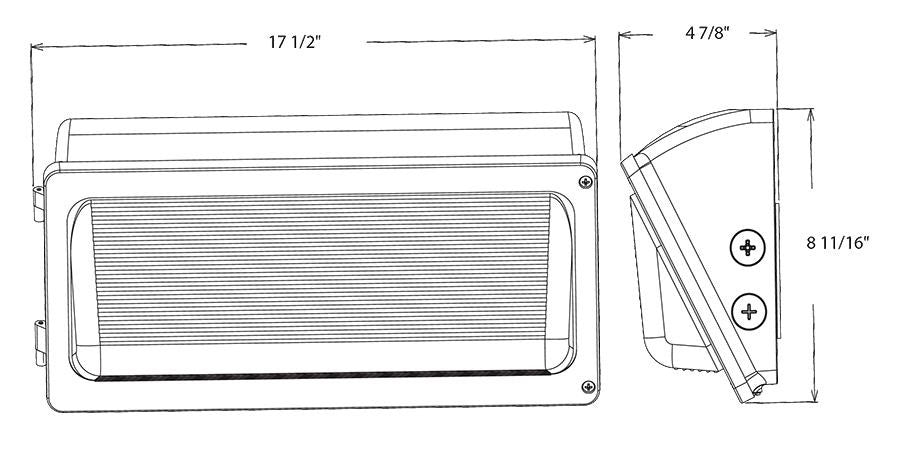

• Length: 17 1/2"
• Width: 4 7/8"
• Height: 8 11/16"
• Product Type: Area Light
• Color Temp: 3000,4000,5000 K
