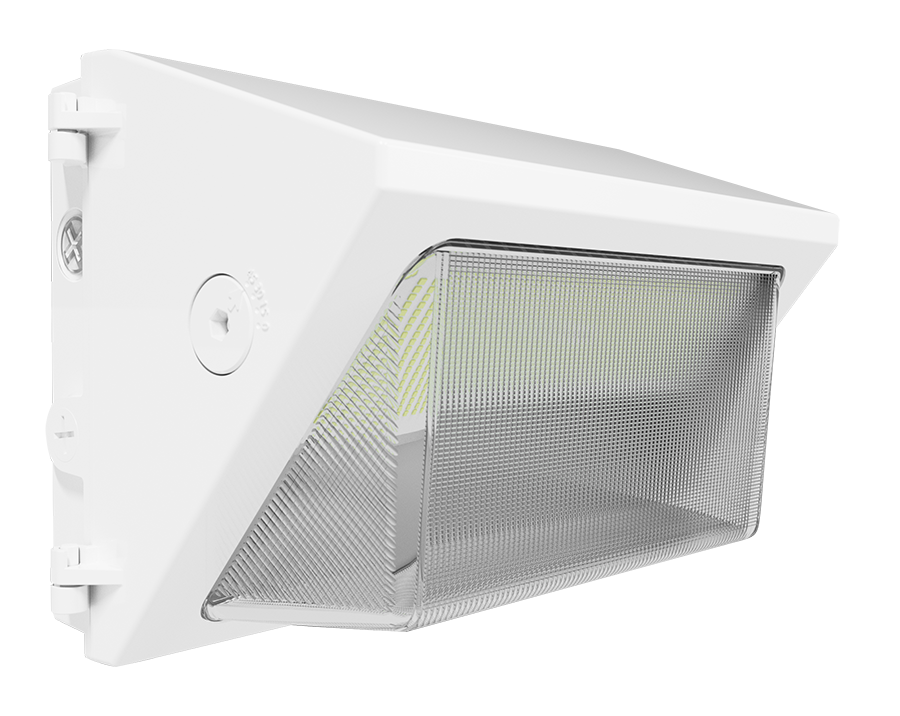

Rab W22-M-60W Wallpack Medium 60W (Adjustable Throw) W22-M-60W

Product Description

Rab W22-M-60W is a field-adjustable medium wall pack that provides configurable light output and distribution for exterior perimeter and security lighting. The fixture offers selectable wattages (60/50/40/30W), selectable color temperatures (3000K/4000K/5000K), 0-10V dimming, integrated photocell with on/off switch, surge protection, and a 120-277V constant-current driver. It features die-cast aluminum housing, a glass lens, adjustable throw optics (0°, 15°, 30°, 45°), and a 100,000-hour L70 LED life.

• Field-selectable wattages: 60W, 50W, 40W, 30W; selectable CCT: 3000K, 4000K, 5000K
• Adjustable throw optics (0°, 15°, 30°, 45°), integrated photocell with on/off switch, 0-10V dimming
• Die-cast aluminum housing with glass lens, surge protection (DM 4 kV, CM 6 kV), rated for wet locations

Product Highlights

Field-adjustable output and CCT, adjustable throw optics, integrated photocell and 0-10V dimming, 100,000-hour L70 LED life

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: W22-M-60W

Technical Specifications

• Brand: RAB
• MPN: W22-M-60W
• Product Type: Field-adjustable wall pack with adjustable throw
• Watts (selectable): 60W / 50W / 40W / 30W (factory default 60W)
• Input Voltage: 120-277V, 50/60 Hz
• Driver Type: Constant current, Class 1
• Lumens: 3,727 - 9,105 lm
• Efficacy: 117.1 - 161.5 lm/W
• CRI: 82 - 85
• L70 Lifespan: 100,000 Hours
• Input Current (60W): 120V: 0.50A; 208V: 0.29A; 240V: 0.25A; 277V: 0.22A
• Input Power Range: 29.3 - 61W
• Dimming: 0-10V dimming standard; dims down to 10%
• Photocell: Integrated photocell included with on/off switch
• Surge Protection: Differential Mode 4 kV; Common Mode 6 kV
• Adjustable Throw (angles): 45°, 30°, 15°, 0° (factory default 45°)
• Beam Angle: Adjustable optics (0°, 15°, 30°, 45°)
• Wattage Equivalency: Replaces up to 250W MH / 200W HPS (varies by setting)
• LEDs: Long-life, high-efficacy surface-mount LEDs
• Housing: Die-cast aluminum
• Lens: Glass
• Reflector: Aluminum
• Cold Weather Starting: -40°F (-40°C)
• Maximum Ambient Temperature: 104°F (40°C)
• Finish: Formulated for high durability and long-lasting color
• Mounting: Surface mount for recessed junction box; 3 conduit entry points
• BUG Rating: 60W: B2 U4 G5; 50W: B2 U4 G4; 40W: B1 U3 G4; 30W: B1 U3 G3
• Certifications: UL Listed; Suitable for wet locations; DLC Listed (individual SKUs may vary)
