Rab W22-L-150 field-adjustable wall pack 150/125/100/75W (adjustable throw) W22-L-150/E

Brand: RAB
SKU: W22-L-150
Availability: In Stock

Ships same day if ordered by 12 pm
$359.08
$359.08
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

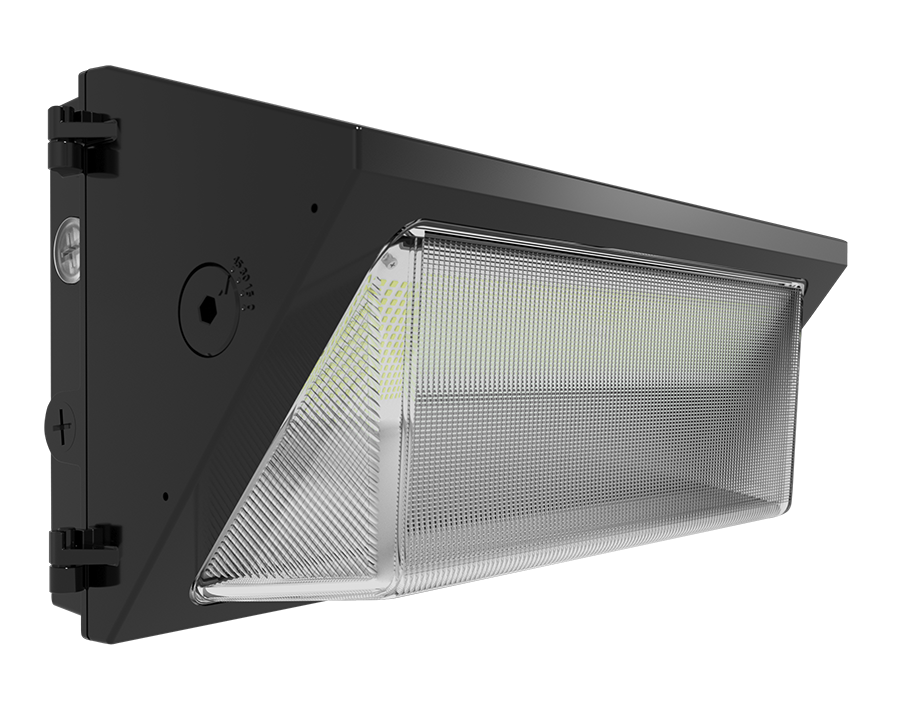

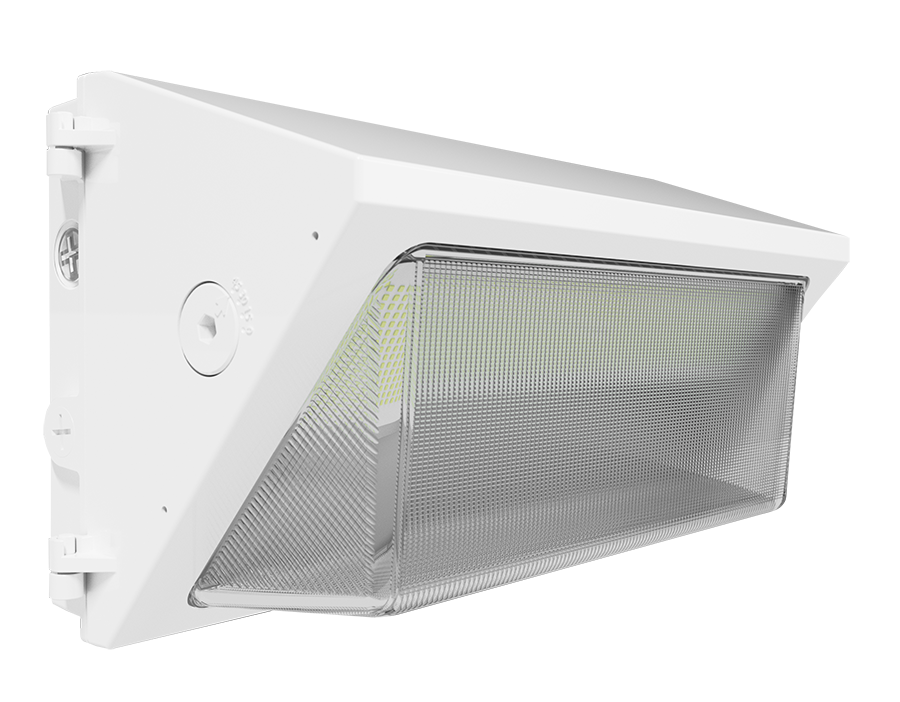

Rab W22-L-150 is a large field-adjustable LED wall pack that provides selectable wattages (150/125/100/75W) and selectable color temperatures (3000K, 4000K, 5000K). It features adjustable throw angles (0°, 15°, 30°, 45°), long-life LEDs with a 100,000-hour L70 rating, 0-10V dimming, an integrated photocell with on/off switch, surge protection (DM 4 kV / CM 6 kV), die-cast aluminum housing with glass lens and aluminum reflector, and 120-277V input for wet-location outdoor lighting.

  • Field-adjustable wattage (150/125/100/75W) with lumen output range 10,103–20,920 lm and efficacy 121.5–161.6 lm/W
  • Selectable color temperatures 3000K/4000K/5000K and adjustable throw angles 0°, 15°, 30°, 45° for on-site beam tuning
  • 0-10V dimming to 10%, integrated photocell with on/off switch, surge protection DM 4 kV + CM 6 kV, UL listed for wet locations

Product Highlights

Large outdoor field-adjustable wall pack with adjustable throw, 120–277V constant-current driver, L70 100,000 hours, wet-location listing

Product Information

Standard Information

  • Brand: RAB
  • Manufacturer Part Number: W22-L-150
Technical Specifications
Brand
Rab
MPN
W22-L-150
Type
Field-adjustable wall pack
Wattage
150 / 125 / 100 / 75 W (factory default 150W)
Color Temperature
Selectable 3000K / 4000K / 5000K (factory default 4000K)
Lumens
10,103 - 20,920 lm
Efficacy
121.5 - 161.6 lm/W
CRI
83 - 85
L70 Lifespan
100,000 Hours
Input Voltage
120-277 V, 50/60 Hz (Constant Current, Class 1)
Input Power Range
74.5 - 147.2 W
Input Current (150W)
120V: 1.50 A; 208V: 0.80 A; 240V: 0.70 A; 277V: 0.60 A
Input Current (125W)
120V: 1.05 A; 208V: 0.60 A; 240V: 0.52 A; 277V: 0.46 A
Input Current (100W)
120V: 0.83 A; 208V: 0.48 A; 240V: 0.42 A; 277V: 0.36 A
Input Current (75W)
120V: 0.63 A; 208V: 0.36 A; 240V: 0.32 A; 277V: 0.27 A
Driver
Constant Current, Class 1
Dimming
0-10V dimming standard; dims to 10%
Photocell
Integrated photocell included with on/off switch
Surge Protection
DM 4 kV + CM 6 kV
Adjustable Throw Angles
0°, 15°, 30°, 45°
Housing
Die-cast aluminum
Lens
Glass
Reflector
Aluminum
Cold Weather Starting
Minimum starting temperature -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use up to 104°F (40°C)
BUG Rating
150W/125W/100W: B3 U5 G5; 75W: B2 U4 G5
Listings/Certifications
UL Listed; Suitable for wet locations; DLC Listed
Finish
Formulated for high durability and long-lasting color
