Rab T8FA-10.5-48G-8CCT-B t8 cct adjustable single+double ended

Product Description

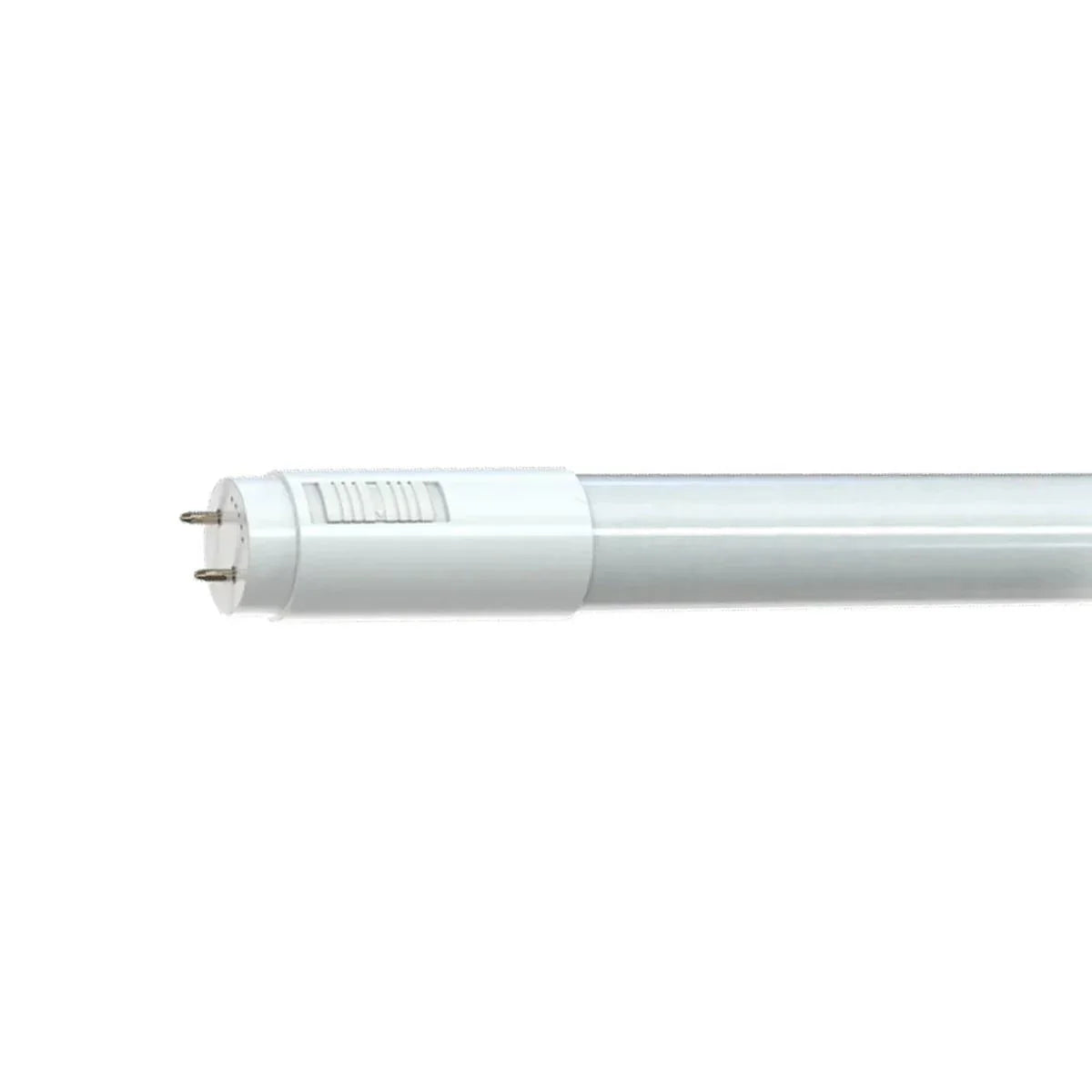

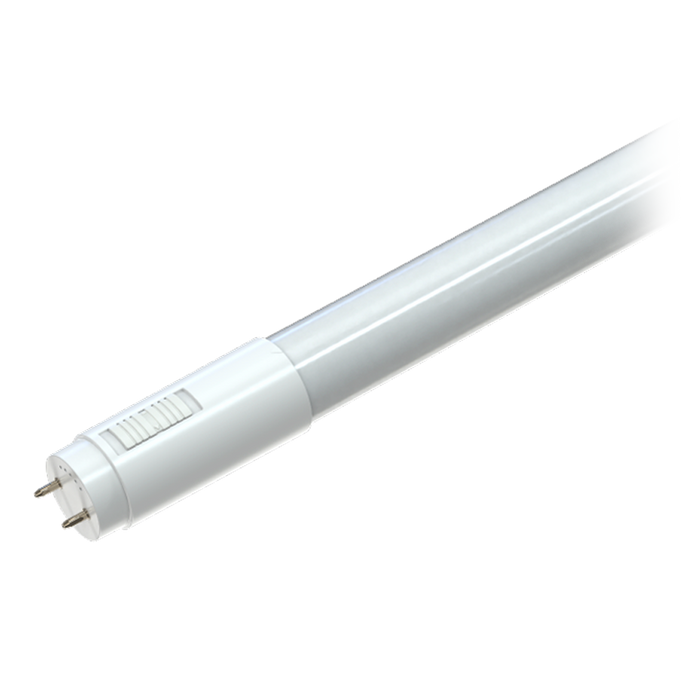

The RAB T8FA-10.5-48G-8CCT-B is a replacement for traditional fluorescent T8 lamps. It features single or double-ended line voltage wiring and a field-adjustable color temperature of 3000/3500/4000/5000/6500K. The frosted glass lens diffuses light evenly. This tube is suitable for use indoors in dry and damp environments and enclosed fixtures.

• Replacement for traditional fluorescent T8 lamps

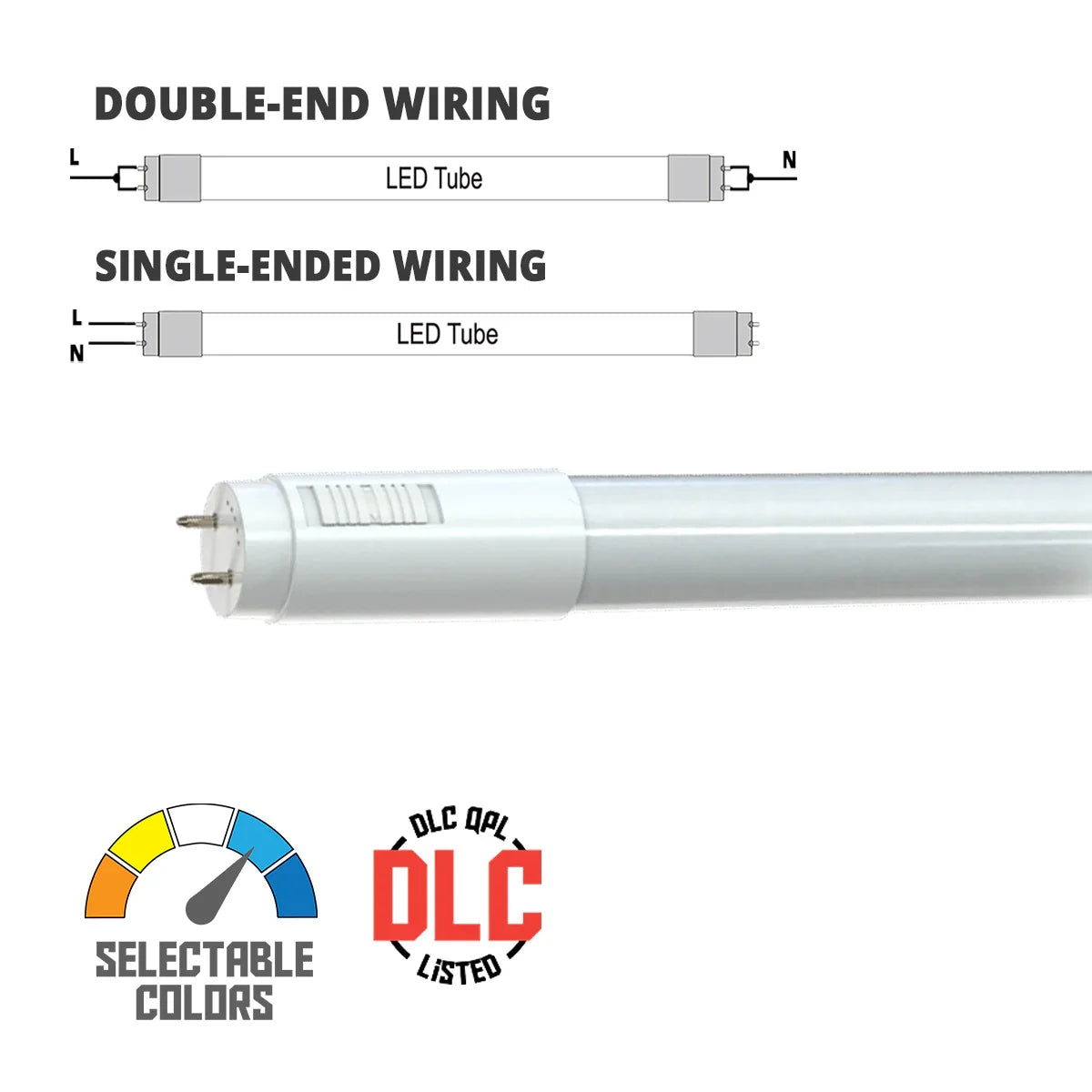

• Single or double-ended line voltage wiring
• Field adjustable color temperature of 3000/3500/4000/5000/6500K

Product Highlights

This T8 LED tube offers adjustable color temperature, long lifespan, and energy efficiency, making it ideal for commercial and industrial applications.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: T8FA-10.5-48G-8CCT-B

Technical Specifications

• Product Type: Linear Tube
• Wattage Equivalency: 32W T8 Fluorescent
• Input Wattage: 10.5/12/14W
• Lumens: 10.5W 1,565lm @ 3000K; 1,582lm @ 3500K; 1,654lm @ 4000K; 1,658lm @ 5000K; 1,651lm @ 6500K 12W 1,800lm @ 3000K; 1,853lm @ 3500K; 1,877lm @ 4000K; 1,881lm @ 5000K; 1,872lm @ 6500K 14.5W 2,204lm @ 3000K; 2,262lm @ 3500K; 2,270lm @ 4000K; 2,275lm @ 5000K; 2,260lm @ 6500K
• Efficacy: 10.5W 148lm/W @ 3000K; 149lm/W @ 3500K; 156lm/W @ 4000K; 156lm/W @ 5000K; 156lm/W @ 6500K 12W 148lm/W @ 3000K; 152lm/W @ 3500K; 154lm/W @ 4000K; 154lm/W @ 5000K; 153lm/W @ 6500K 14.5W 150lm/W @ 3000K; 154lm/W @ 3500K; 154lm/W @ 4000K; 155lm/W @ 5000K; 154lm/W @ 6500K
• L70 Lifespan: 50,000-Hour LED lifespan based on IES LM-70 results
• THD: <20%
• Power Factor: 0.9
• Dimmable: Yes
• Input Voltage: 120-277V
• Operating Frequency: 50/60Hz
• Input Current @ 120V (mA): 83mA/94mA/113mA
• Input Current @ 208V (mA): 48mA/54mA/65mA
• Input Current @ 240V (mA): 41mA/47mA/56mA
• Input Current @ 277V (mA): 36mA/41mA/49mA
• Operating Temperature: -4°F to 113°F (-20°C to 45°C)
• Flicker: 50%
• Beam Angle: 300°
• Color Temperature: Field adjustable via dip switch 3000/3500/4000/5000/6500K
• Color Accuracy (CRI): ≥80 CRI
• R9 Value: High color performance with R9 no greater than 0
• Color Consistency: <5-step MacAdam Ellipse @ 3000K/6500K binning to achieve consistent fixture-to-fixture color <7-step MacAdam Ellipse @ 3500K/4000K/5000K binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Installation Method: UL Type B, Ballast Bypass
• Base Type: G13
• Shape: T8
• Finish: White
• Endcap Material: Polycarbonate
• Enclosure Material: Glass
• Lens Finish: Frosted
• Listings: UL Recognized, UL Classified
• Environment: Suitable for use indoors in dry and damp environments.
• Fixture Rating: Suitable for use in enclosed fixtures
• DLC Listed: This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
• Certification Model Number: T10295(T8FA-10.5-48G-8CCT-BYP)
• California Title 20 Compliant: No
• California Title 24 JA8 Compliant: No
• California Energy Commission (CEC) Status: Lawful for Sales in California
• NSF Listed: Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
• Rohs: Mercury and UV free. RoHS-compliant components.
• FCC: Complies with Part 15 of the FCC Rules
• Width/Diameter: 1.06 in
• Height: 1.06 in
• Material: Glass
• Lamp Life: 50,000 Hours
• Product Rating: Damp Rated
• Brand: RAB
• SKU: T8FA-10.5-48G-8CCT-BYP
• Mfr. Part Number: T8FA-10.5-48G-8CCT-BYP
• Wattage: 10.5/12/14 Selectable
• Technology: LED
• Housing Color: White
• Avg. Life (Hours): 50000
• Base: Bipin (G13)
• Kelvin Temp.: 3000-6500 Selectable
• CRI: 80
• Initial Lumens: 1650/1900/2200 Selectable
• Max Operating Temp: 113 F (45 C)
• Min Operating Temp: -4 F (-20 C)
• Certifications: RoHS Compliant | FCC
• UPC Code: #192552037631
• Outdoor Rating: Damp/Dry Location Rated
• UL Listing: Yes
• Delivered Lumens: 2260
• Enclosed Rated: Yes
• Length/Depth: 48 in
