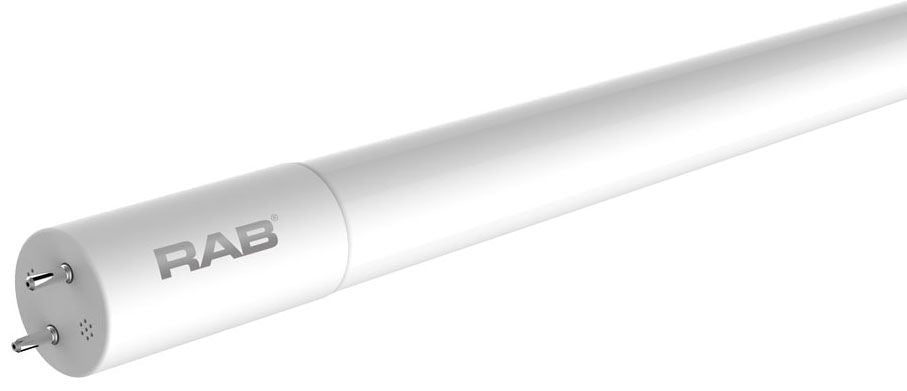

Rab T8-17-48G-830-SD-BYP LED LMP 4 Foot

Product Description

The RAB T8-17-48G-830-SD-BYP LED lamp is a replacement for conventional fluorescent T8 and T12 linear tubes. This 17W lamp can be wired directly to line voltage without an external driver or ballast. It is approximately 50% more energy efficient than fluorescent T8 lamps and has a 50,000-hour lifespan.

• Replacement for conventional fluorescent T8 and T12 linear tubes
• Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
• Single ended and double ended wiring method

Product Highlights

This LED lamp is rated for use in enclosed and open fixtures in dry or damp locations. It's environmentally friendly with no mercury used.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: T8-17-48G-830-SD-BYP
• Country of Origin: China

Technical Specifications

• Type: Non-Dimmable, Single/Double Ended, Linear
• Voltage Rating: 120 to 277 Volt AC 50/60 Hertz
• Wattage: 17.5W
• Intensity: 2100 Lumen
• Shape: T8
• Base Type: G13
• Glass Color: White
• Glass Finish: Frosted

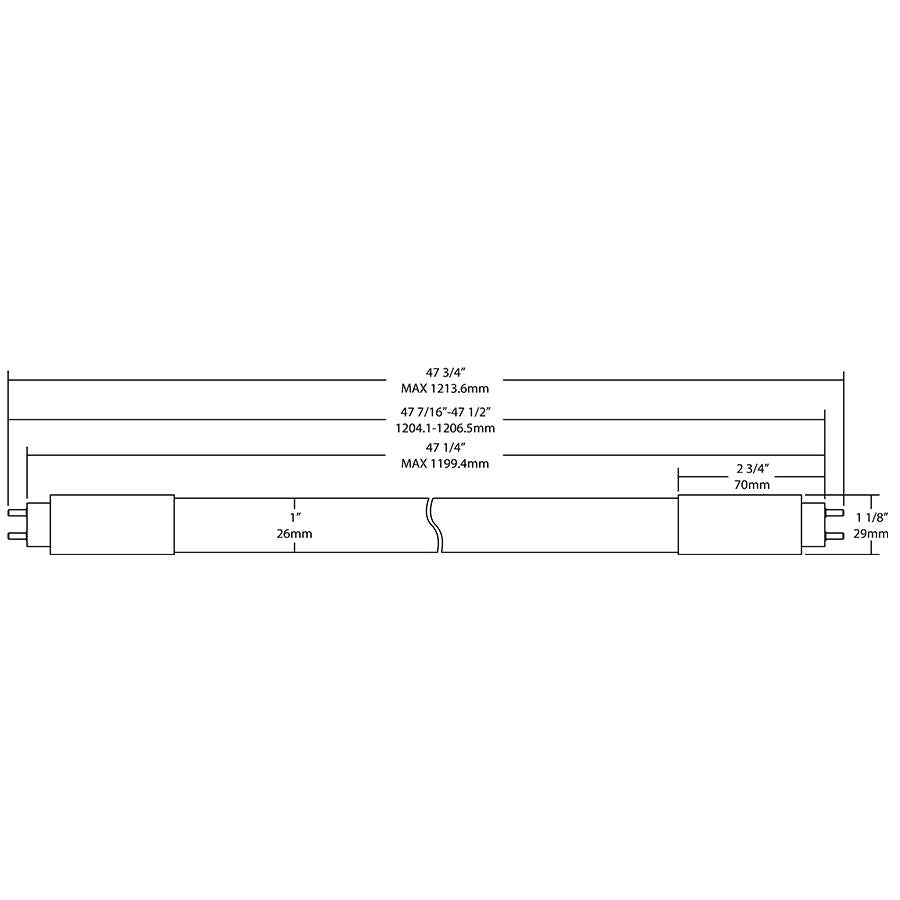

• Length: 47-3/4"
• Diameter: 1-1/8"
• Color Rendering Index: 82 CRI
• Color Temperature: 3000K
• Life in hour: 50000 (L70)
• Beam Angle: 210 Degrees
• Application: Enclosed and Open Fixture
• Approval: UL, UL (Canada and US), FCC, DLC, CEC
• RoHS: Mercury and UV free. RoHS-compliant components.
• Nominal Length: 4 FT
• Equivalent Wattage: 32W Fluorescent
• Efficacy: 123.5 Lumen per Watt
• Installation: Single and Double Ended, Type B Ballast Bypass
• Operating Temperature: -20 to 45 Deg C
• Product Type: T8 Type B, Ballast Bypass
• Wattage Equivalency: 32W Fluorescent
• Input Wattage: 17W
• Lumens (Nominal): 2,100lm
• L70 Lifespan: 50,000 Hours
• THD: <20%
• Power Factor: >0.9
• Dimmable: No
• Input Voltage: 120-277V AC
• Flicker: 50%-70%
• Color Accuracy (CRI): 80CRI
• R9 Value: High color performance with R9 greater than 0
• Color Consistency: <5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Installation Method: UL Type B, Ballast Bypass
• Finish: Frosted
• Endcap Material: Polycarbonate
• Enclosure Material: Glass
• Lens Finish: Frosted
• Listings: UL Listed, UL Classified, UL Recognized
• Environment: Suitable for use indoors in dry and damp environments.
• Fixture Rating: Suitable for use in enclosed fixtures. Suitable for use in open fixtures.
• DLC Listed: Yes
• Certification Model Number: T20118(T8-17-48G-830-SD-BYP)
• California Title 20 Compliant: No
• California Title 24 JA8 Compliant: No
• California Energy Commission (CEC) Status: Lawful for Sales in California
• NSF Listed: Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• FCC: Complies with Part 15 of the FCC Rules
• Lumens: 2,300 Lumens
• Lumens Per Watt: 123.53
• Lamp / Base Type: G13 Medium Bi-Pin
• Rated Hours: 50,000 Hours
• Equivalent: 32W Fluorescent
• Min Operating Temp: -4 Degrees F
• CRI: 80+
• Operating Temp: -4 to 104 F
• Special Features: Enclosed Fixture Rated
• Operating Frequency: 50/60Hz
• Material: Glass
• Rated Power: 17W
• UL Classified: Yes
• UL Recognized: Yes
• Lamp Type: Linear Tube
• Lamp Shape: T8
• Lamp Base: Medium Bi-Pin (G13)
• Housing Material: Glass
• Watts: 17.5W
• Color Temp: 3000K (Warm White)
• DLC Product Code: PG7NBLAV
• DLC Model Number: T10313(T8-17.5-48G-830-SD-BYP)
• Mercury Free: Yes
• Damp Location Rated: Yes
• Enclosed Fixture Rated: Yes
• GTIN: 00019813751832
• Made in USA: No
• Country of Origin: China
• Brand: RAB Lighting Inc
• Manufacturer: RAB Lighting
• Catalog Number: T8-17-48G-830-SD-BYP
• Buy Line: RAB
• Currency Code: USD
• VOLTAGE: 120-277V
• Lamp Base Material: Glass
