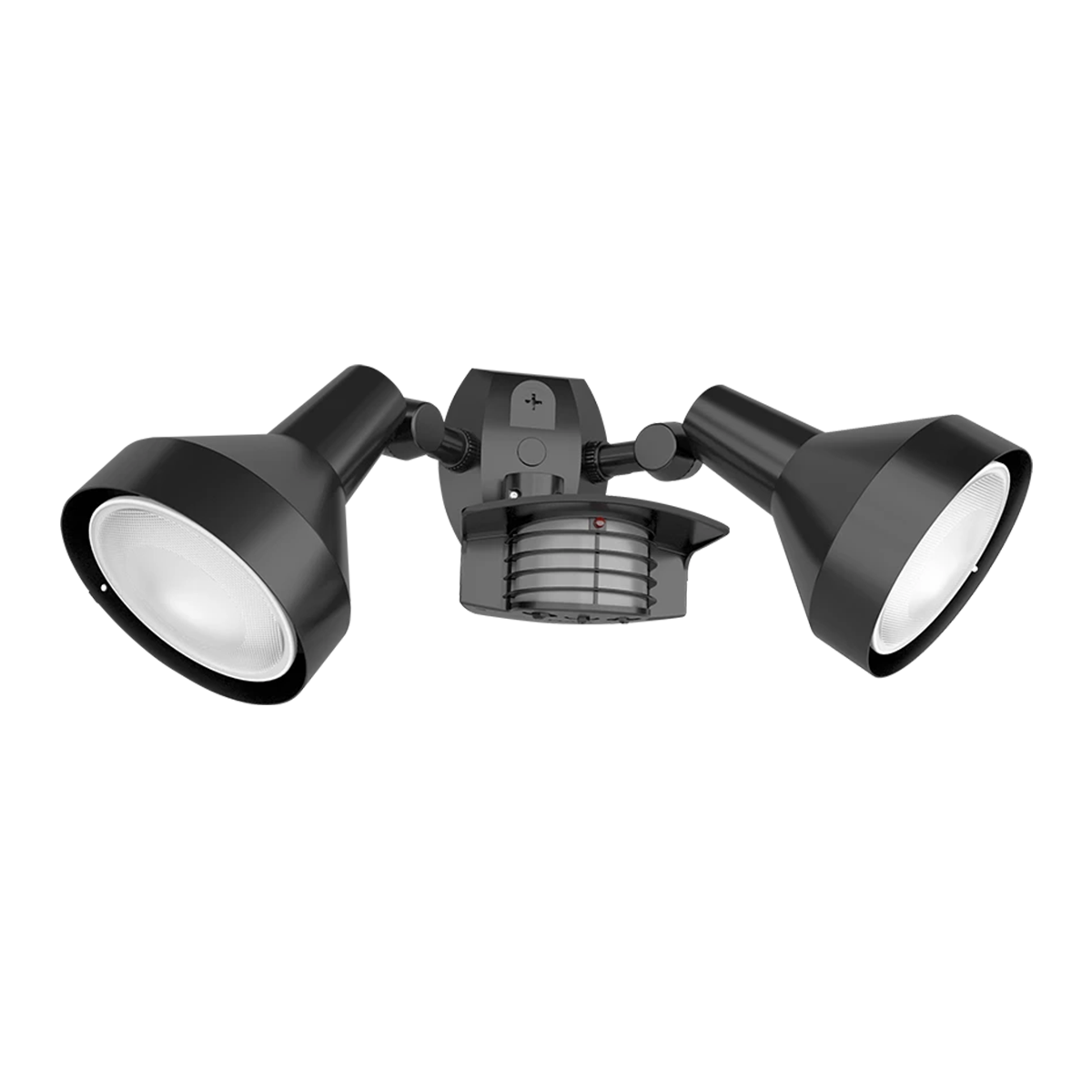

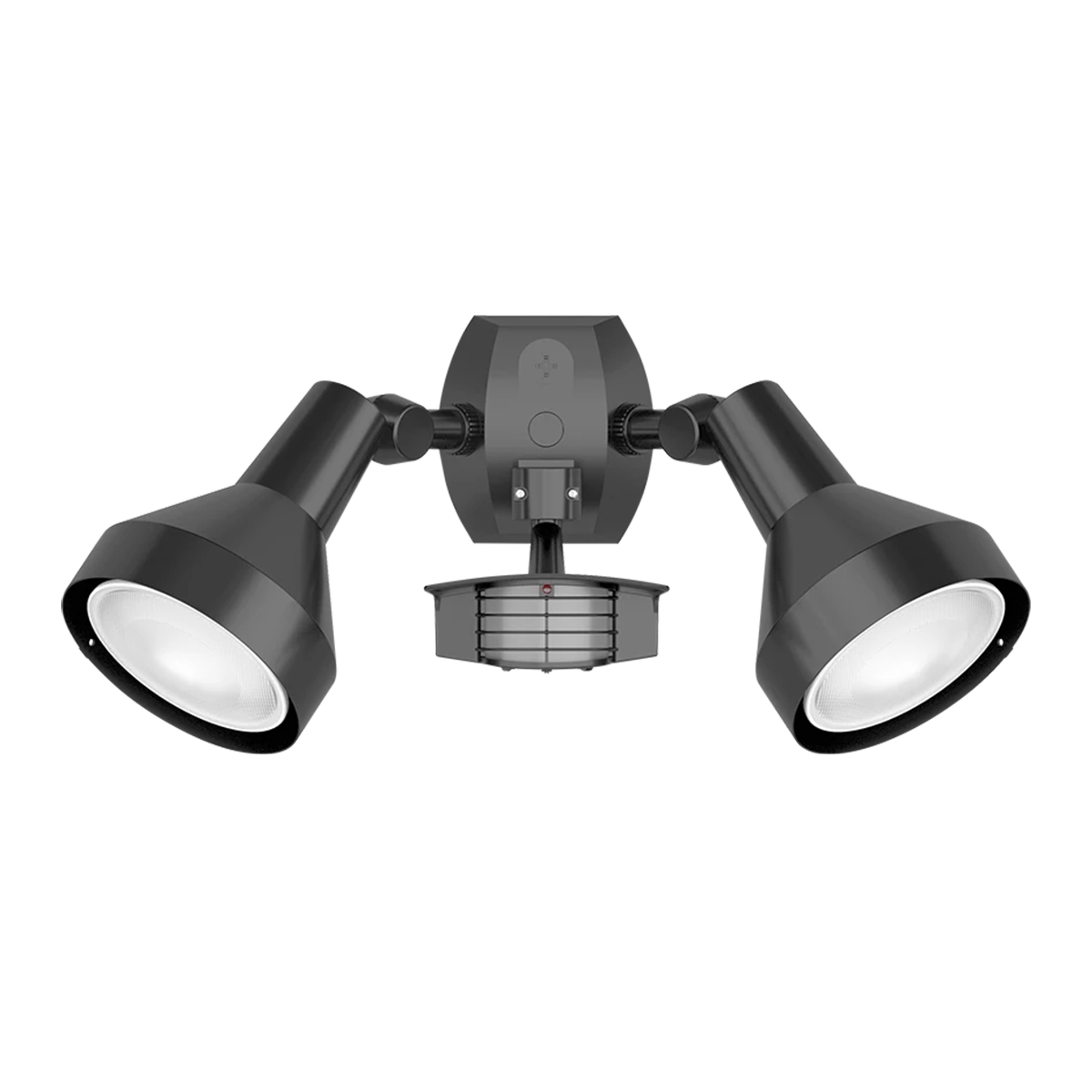

The RAB STL200HL dual head flood light offers wider motion coverage with its 200° detection range, making it suitable for corner installations and properties needing broad motion detection. It maintains consistent brightness with temperature-compensated sensing and includes two PAR38 LED lamps with selectable color temperatures and high color clarity. Advanced false-trigger control, RF shielding, daylight shutoff, and protected manual override minimize call-backs.
Wide-Angle Security Lighting for Larger Outdoor Coverage
Cover more ground with fewer fixtures using an extended 200° motion-detection field ideal for corners, long building sides, and wide approach zones.
Deliver consistent brightness in any season with temperature-compensated sensing and two rugged PAR38 LED lamps offering selectable color temperatures and high color clarity.
Product Highlights
Ideal for large building perimeters, fleet lots, and warehouse exteriors. Saves $157 per year in energy costs. Features a tough, corrosion-resistant polycarbonate housing.
Product Information
Standard Information
Brand: RAB
Manufacturer Part Number: STL200HL
Technical Specifications
Wattage(s)
38W
Input Voltage
120-277VAC
Replaces Wattage(s)
300W halogen
Power Factor
0.9
Light Output
3,600 lumens
THD (Total Harmonic Distortion)
≤20%
Luminous Efficacy (lm/W)
95 lm/W
Temperature Rating
-20°C to 45°C (-4°F to 113°F)
Average Lamp Life
Replaceable PAR38 bulb: 15,000-Hour LED lifespan based on IES LM-70 results
Housing Material
Tough, corrosion resistant polycarbonate housing
Color Temperature(s)
3000/4000/5000K
Certification
UL Listed, Suitable for Wet Locations
CRI (Color Accuracy)
90
Motion Sensor Coverage
200° view. Sensitivity control adjustable from 100% to 30%.
Additional Specifications
Photosensor control deactivates lights during daylight. Fully adjustable for 24
hour operation or custom applications.
