RAB Rab SR2/LCBS LED strip 19/15/11/7/4W (2 ft)
RAB Rab SR2/LCBS LED strip 19/15/11/7/4W (2 ft)
RAB Rab SR2/LCBS LED strip 19/15/11/7/4W (2 ft)
RAB Rab SR2/LCBS LED strip 19/15/11/7/4W (2 ft)

Rab SR2/LCBS LED strip 19/15/11/7/4W (2 ft)

Brand: RAB
SKU: SR2/LCBS
Availability: In Stock

Ships same day if ordered by 12 pm
$227.60
$227.60
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

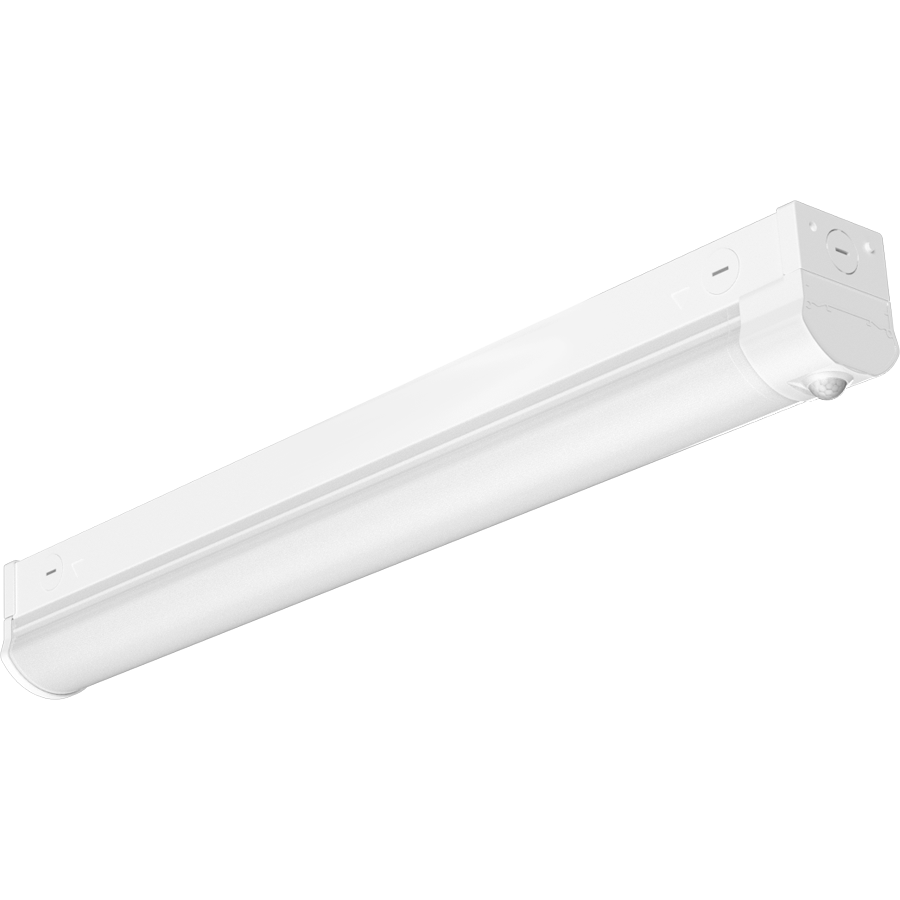

The Rab SR2/LCBS is a 2 ft field-adjustable LED strip luminaire with selectable light output (19/15/11/7/4W) and field-selectable color temperatures (3500K, 4000K, 5000K, 5700K, 6500K). It includes an integrated Lightcloud Blue passive infrared (PIR) sensor, J-box adapter, polycarbonate lens and painted galvanized steel housing. The unit operates on 120–277V with 0–10V dimming capability, delivers 548–2883 lumens, and has an L70 lifespan of 100,000 hours.

  • Field-adjustable wattage (4/7/11/15/19W) and selectable CCT (3500–6500K), factory defaults: 19W and 4000K
  • Integrated Lightcloud Blue PIR sensor, J-box adapter, polycarbonate lens and painted galvanized steel housing
  • 120–277V input, constant current Class II driver, 0–10V dimming (dims to 10%), surge protection L-N 1 kV, L/N-G 2 kV

Product Highlights

2 ft field-adjustable LED strip, 4–19W output, 548–2883 lm, Lightcloud Blue PIR, 100,000-hour L70

Product Information

Standard Information

  • Brand: RAB
  • Manufacturer Part Number: SR2/LCBS
Technical Specifications
Brand
Rab
Manufacturer Part Number
SR2/LCBS
Product Type
2 ft field-adjustable LED strip luminaire
Wattage
4/7/11/15/19W (field-adjustable; factory default 19W)
Color Temperature
3500K / 4000K / 5000K / 5700K / 6500K (field selectable; factory default 4000K)
Lumens
548-2883 lm
Efficacy
118.4-143.8 lm/W
Color Rendering Index (CRI)
83-86
L70 Lifespan
100,000 Hours
Driver Type
Constant Current, Class II, 120-277V, 50/60 Hz
Input Voltage
120-277V
Input Watts
4.6-20.1W
Input Current
120V: 0.04/0.06/0.09/0.13/0.17A; 208V: 0.02/0.04/0.05/0.07/0.10A; 240V: 0.02/0.03/0.05/0.06/0.08A; 277V: 0.03/0.04/0.05/0.06/0.07A
Dimming
0-10V dimming standard; dims down to 10%; driver includes dimming control wiring (requires separate 0-10V DC dimming circuit)
Dim to Off
Yes
Surge Protection
L-N 1 kV, L/N-G 2 kV
Lens Material
Polycarbonate
Housing Material
Galvanized steel (painted)
Ambient Temperature Ratings
Max power temperature rating: 50°C (122°F); Middle power temperature rating: 55°C (132°F); Low power temperature rating: 62°C (144°F)
Cold Weather Starting
Minimum starting temperature -20°C (-4°F)
Certifications
UL Listed; Suitable for damp locations; IESNA LM-79 & LM-80 testing; DLC listed
Integrated Sensor
Lightcloud Blue passive infrared (PIR) sensor
Mounting
J-box adapter; accessories: SR VHOOK KIT (suspended mounting), SR JOIN KIT (surface mount)
Finish
White
