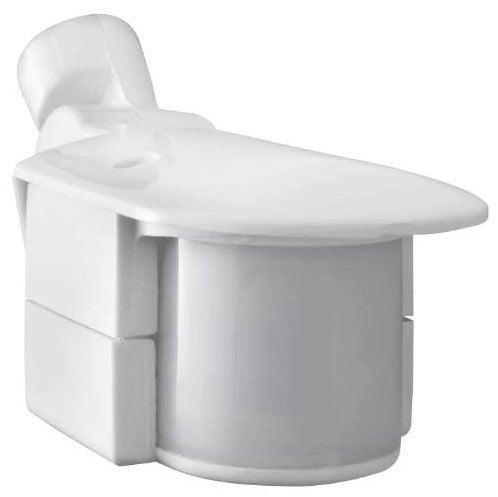

Rab SMS500W Motion Sensor 180° 500W

Product Description

The RAB SMS500W motion sensor features 180° detection and is designed for wall mounting. It supports 500W incandescent and 250W fluorescent loads at 120V AC. Key features include a vandal-resistant lens and an LED "On Guard" indicator. Suitable for indoor or outdoor use, this sensor enhances security lighting by automatically activating lights upon detecting motion.

• Features 500W Incandescent/250W Fluorescent
• Vandal Resistant Lens
• LED "On Guard" Indicator

Product Highlights

Enhance your outdoor security with this RAB motion sensor, offering reliable performance and easy installation for any wet location.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: SMS500W
• Country of Origin: China

Technical Specifications

• Wattage: 500, 250
• Mounting: Wall
• Volts AC: 120
• Type: Motion Sensor, Sensor
• Switching capacity: 500W incandescent, 240W fluorescent
• Power rating: 120VAC
• Power consumption: Negligible
• Time adjustment: 5 seconds to 15 minutes
• Standards met: UL listed
• Voltage Rating: 120 Volt AC
• Load Type: Incandescent/Fluorescent
• Load Rating: 500/250 Watt
• Field of View: 180 Degree
• Time Delay: 5 Second to 15 Minute
• Application: Outdoor, Wet Location
• Approval: UL
• Current Rating: 5 Amp
• Mounting Type: Wall
• Material: Polycarbonate
• Coverage: 30 ft
• Viewing Angle: 180 deg
• Response Frequency: 60 Hz
• Amperage Rating: 5 A
• Lamp Type: Incandescent/Fluorescent
• Vendor SKU: SMS500W
• Standard & Approvals: UL Listed
• Manufacturer: RAB Lighting
• Brand: RAB
• Sensing Distance: 60 ft
• Adjustments: 5 sec to 15 min
• Detection Zone: 180 Degrees
• Input Voltage: 120V
• Special Features: Wet Location Rated
• Incandescent Watts Switched: 500W @ 120 volts
• Fluorescent Watts Switched: 250W @ 120 volts
• Detection: 180° detection pattern
• Surge Protection: Withstands up to 3000 volts
