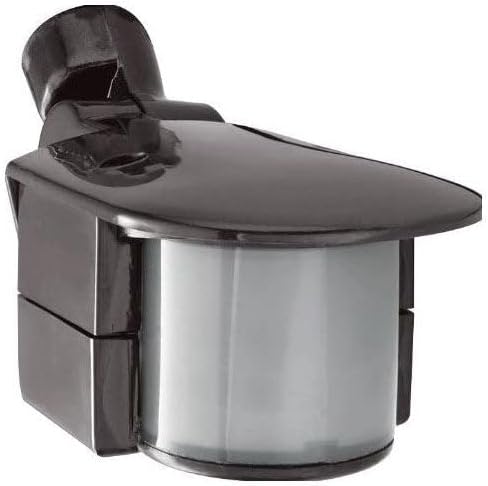

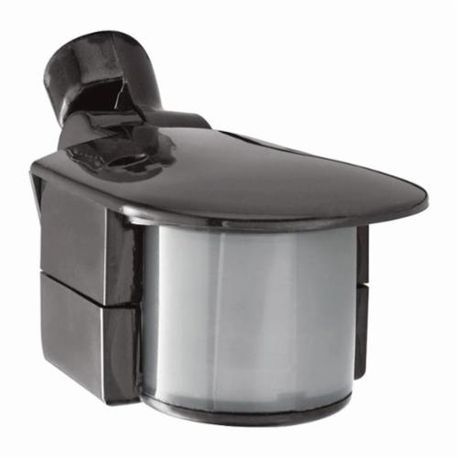

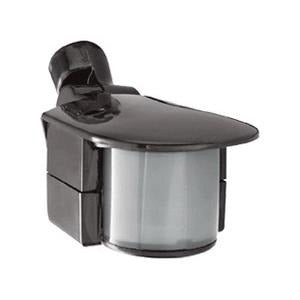

Rab SMS500 Motion Sensor 500W 180°

Product Description

The RAB SMS500 motion sensor features a 180° detection angle and is compatible with 500W incandescent or 250W fluorescent lighting. It has a vandal-resistant lens and an LED "On Guard" indicator. Designed for wall mounting, it operates at 120V AC. Suitable for outdoor and wet locations.

• Motion sensor with 180° detection angle
• Compatible with 500W incandescent / 250W fluorescent lighting
• Features a vandal resistant lens and LED "On Guard" indicator

Product Highlights

This RAB motion sensor offers reliable outdoor lighting control with its wide detection range and durable construction.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: SMS500
• Country of Origin: China

Technical Specifications

• Wattage: 500, 250
• Mounting: Wall
• Volts AC: 120
• Type: Motion Sensor
• Mounting Type: Wall
• Response Frequency: 60 Hz
• Time Delay: 5 sec to 15 min
• Amperage Rating: 5 A
• Voltage Rating: 120 VAC
• Viewing Angle: 180 deg
• Material: Polycarbonate
• Power Rating: 500/250 W
• Application: For outdoor and wet locations
• Standard & Approvals: UL Listed
• Manufacturer: RAB Lighting
• Brand: RAB
• Sensing Distance: 60 ft
• Mounting Height: 30 ft
• Compliance: UL Listed Suitable for wet locations
• Compatibility: Compatible with most electronic ballasts. Not compatible with instant start ballasts.
• Warranty: 5-year sensor warranty
• Voltage: 120V AC 60Hz
• Surge Protection: Withstands up to 3000 volts
• RF Immunity: Circuits fully shielded for maximum radio frequency immunity
• Incandescent Watts Switched: 500W @ 120 volts
• Fluorescent Watts Switched: 250W @ 120 volts
• Ratings: 5 amps
• Power Consumption: Negligible
• Switching Capacity: Relay On/Off Model Switches 240W when lights are mounted to sensor. 500W Incandescent or 240W Fluorescent of remotely mounted lighting @ 120 volts.
• Quick Test Time: 5 second test time for fast installation. Works day or night.
• Photoelectric Control: Deactivates lights during daylight.
• Ambient Light Sensing: Adjustable
• Adjustments: Time, ambient light & sensitivity
• Detection: 180° detection pattern
• LED Detection Indicator: LED glows red day & night for "on guard" deterrence
• Country Of Origin: China
• Manufacturer Name: Rab
• Sub Brand: Smart Switch
• Response Time: 5 sec - 15 min Time Adjustment
• Maximum Load Capacity: Incandescent: 500 Watt, Fluorescent: 250 Watt at 120 Volt
• Item Name: Motion Activated Sensor
• Finish: Bronze
• Special Features: Motion Sensor
• Input Voltage: 120V
• Detection Zone: 180 Degrees
• Length: 4"
• Width: 3"
• Height: 1.63"
