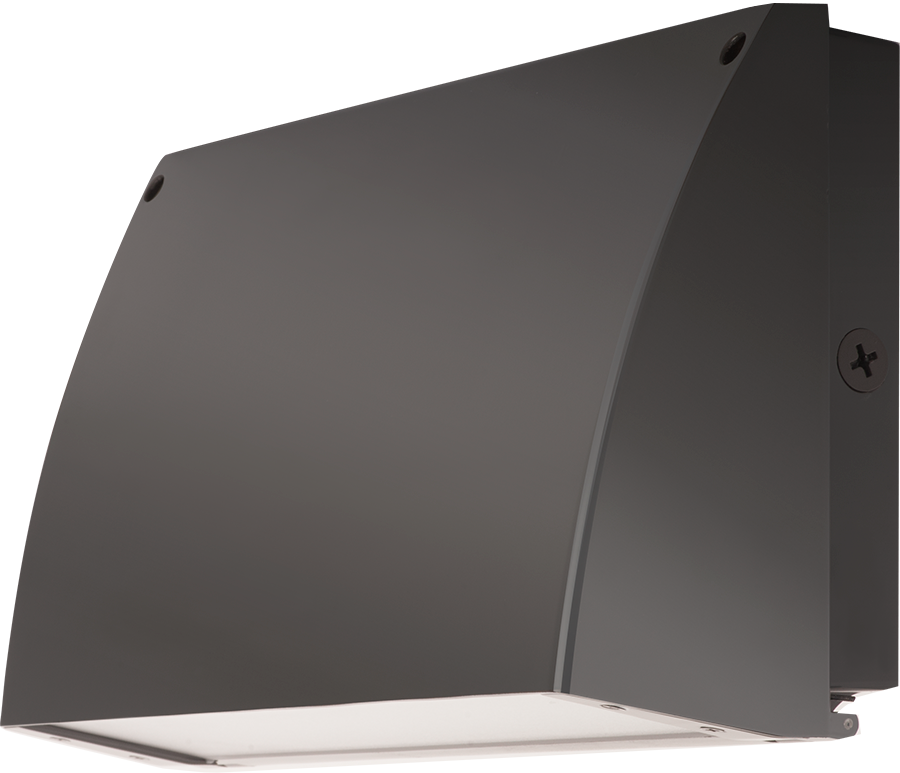

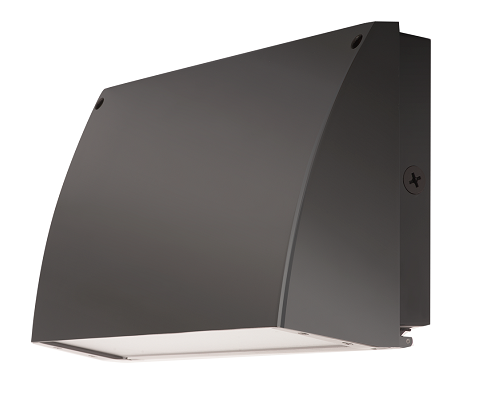

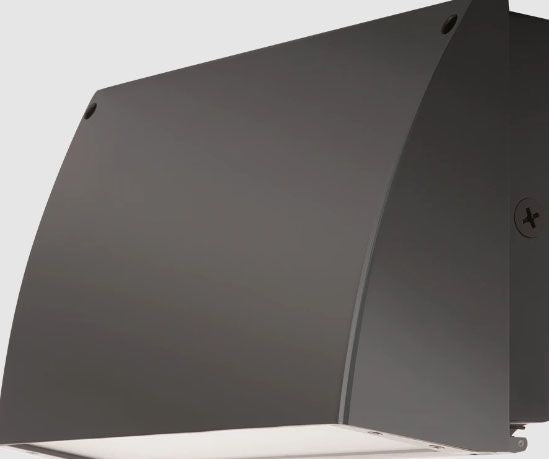

Rab SLIM57 Slim Cutoff Standard Wallpack 57W

Product Description

The RAB SLIM57 SLIM Cutoff Standard Wallpack is a 57W LED lamp designed to cover the footprint of most traditional wall packs. It is suitable for mounting heights from 20' to 30', and replaces HID wattages from 200W MH to 320W MH. These ultra-high efficiency fixtures are available in cutoff or full cutoff models.

• Ultra-high efficiency fixtures are available in cutoff or full cutoff models
• Precision die-cast aluminum housing and door frame
• The unique design of the tight-lock gasket ensures no water or environmental elements will ever get inside the Slim

Product Highlights

This wallpack features a specular thermoplastic reflector and superior thermal management with internal air-flow fin. It has a die-cast back box with four conduit entry points and a knockout pattern for junction box or direct wall mounting.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: SLIM57
• Country of Origin: Cambodia

Technical Specifications

• Lamp Type: LED
• Lamp Wattage: 57 W
• Voltage Rating: 120/208/240/277 VAC
• Fixture Wattage: 57 W
• Lumens: 4312 Lumens
• Color Temperature: 5000 K
• Color Rendering Index (CRI): 74
• Housing Material: Aluminum
• Lens Type: Glass
• Mounting Type: Wall
• Enclosure Type: IP66
• Application: Wet Location
• Average Life: 100000 hr
• Amperage Rating: 0.48/0.32/0.28/0.24 A
• Series: SLIM
• Type: Constant Current
• Standard & Approvals: UL Listed, DLC Listed, IESNA LM-79, LM-80 Testing, Dark Sky Approved
• Input Voltage: 120 to 277 Volt AC 50/60 Hertz
• Power Factor: 99 Percent
• Total Harmonic Distortion: 8.1 Percent at 120 Volt, 13.2 Percent at 277 Volt
• Temperature Rating: 104 Deg F (Ambient), -40 Deg F (Minimum Starting)
• Efficacy: 147.5
• L70 Lifespan: 100,000 Hours
• IP Rating: Ingress protection rating of IP66 for dust and water
• Reflector: Specular thermoplastic
• Recommended Mounting Height: Up to 25 ft
• Mounting: Wall
• Wattage: 57 W
