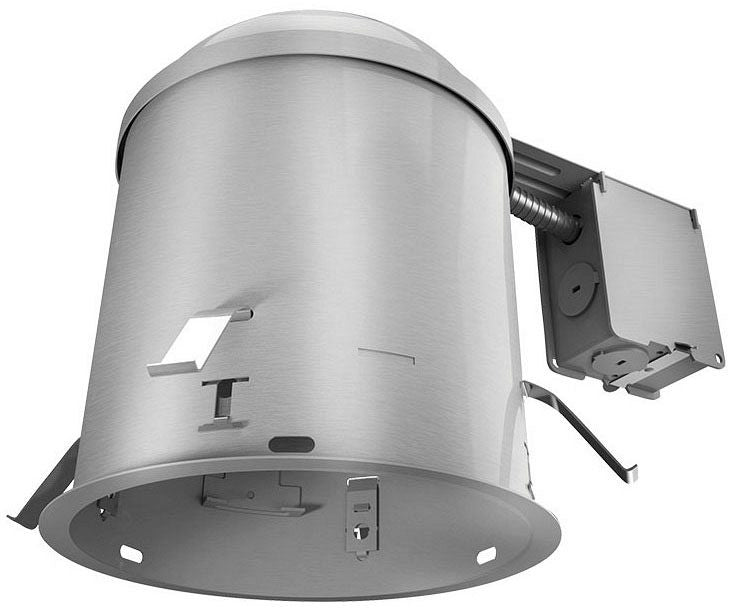

Rab RDCANIC6R Lighting Can 6 Inch

Product Description

The RAB RDCANIC6R lighting can is a retrofit remodeler with an air-tight rating. It features a precision die-cast aluminum housing material and is suitable for wet locations. This IC-rated housing is designed for direct contact with insulation and includes quick connect for electrical connection to the LED trim. It is airtight in accordance with ASTM E283.

• IC rated for direct contact with insulation
• Quick connect provided for electrical connection to the LED Trim
• Airtight in accordance to ASTM E283

Product Highlights

This 6 inch lighting can is suitable for remodel applications and wet locations when used with a compatible luminaire. It includes 24-1/2" bar hangers with captive nails and alignment foot.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: RDCANIC6R

Technical Specifications

• Nominal Aperture Size: 6 Inch
• Aperture Shape: Round
• Lamp Type: LED
• Installation: Remodeler
• Ceiling Type: Insulated

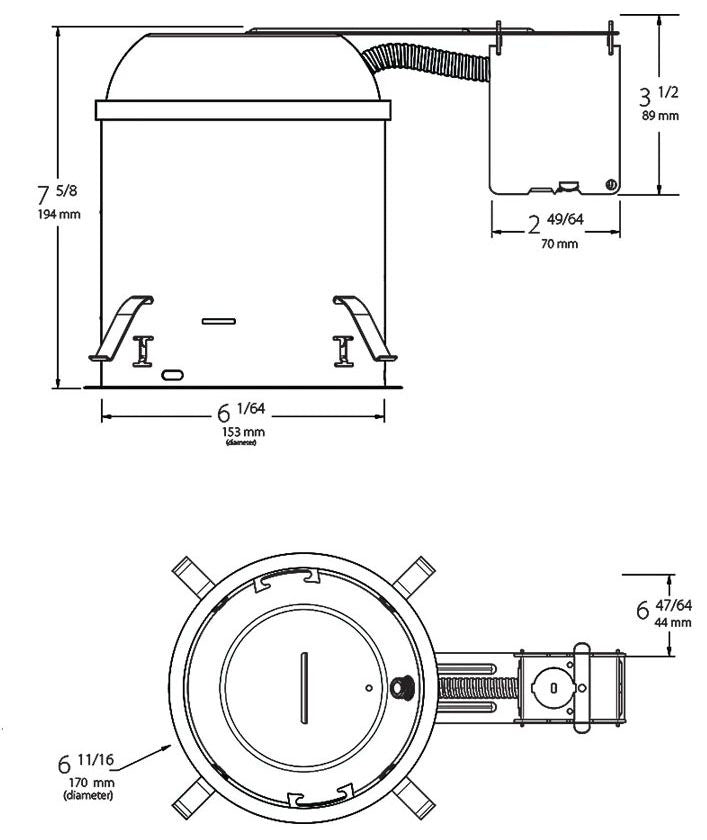

• Ceiling Opening Size: 6-1/64 Inch
• Height: 7-5/8 Inch
• Housing Material: Precision Die-Cast Aluminum
• Application: Wet Location
• Approval: UL
• RoHS Compliant: RoHS Compliant
• Mounting Type: Ceiling Mount
• Applicable Standard: IC
• Product Type: IC Air-Tight LED Dedicated Recessed housings
• Size: 6"
• Housing: 0.040 aluminum housing with riveted cap adjusts for ceiling thicknesses from 5/8" to 1-1/4"
• Nailer Bars: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Hanger bars have T-Bar slot and alignment feet. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allows easy installation in a suspended ceiling.
• Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2" trade size knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
• Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
• Mounting: Remodel housing
• Air Tight: Housing certified Air Tight as per ASTM-E283
• Dimmable: Specified by downlight
• Input Voltage: 120V
• Operating Temperature: 122°F (50°C) max.
• Listings: UL Listed
• Environment: Suitable for use indoors in dry and damp environments.
• IC Rated: Suitable for direct contact with insulation.
• Type IC: Inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
• California Title 24 JA8 Compliant: Can be used to conform with the requirements of California Title 24 Part 6.
• California Energy Commission (CEC) Status: Lawful for Sales in California
• RoHS: Mercury and UV free. RoHS-compliant components.
• Brand: RAB
• Manufacturer Part Number: RDCANIC6R
• UPC: 19813702339
• Special Features: IC Rated, Wet Location Rated
• Width: 6.69"
• Diameter: 6.69"
