Rab PIP15/D10 Pip xl & pip 15W

Product Description

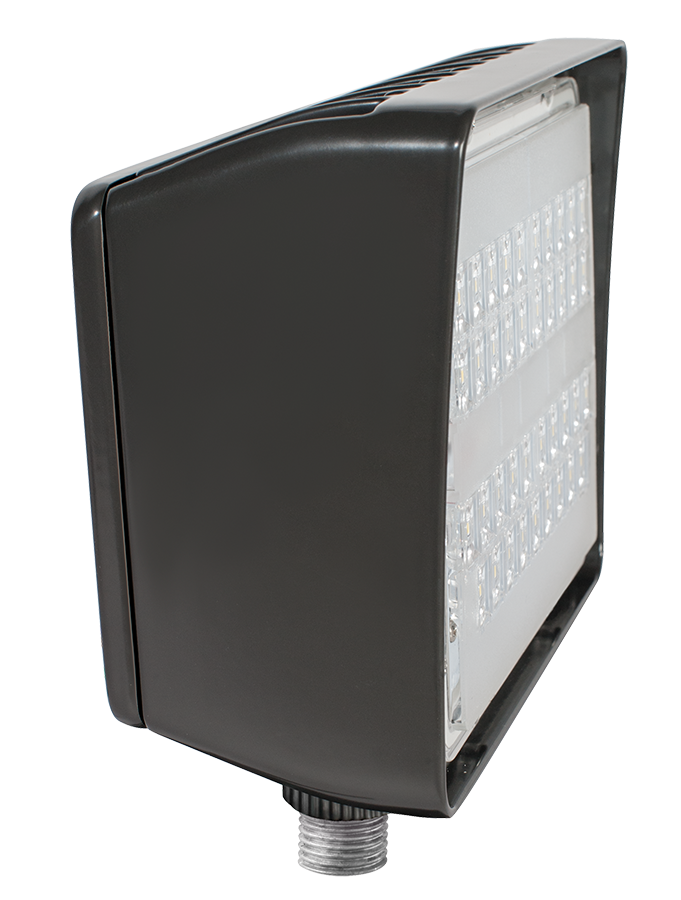

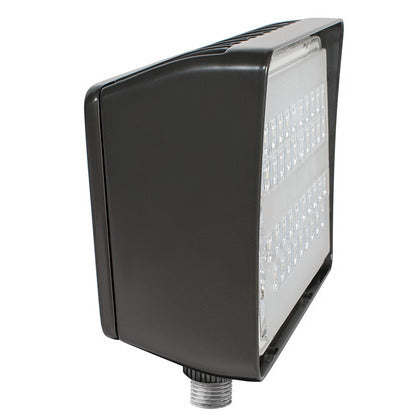

The RAB PIP15/D10 is a 15W LED floodlight. It features a 60,000-hour LED lifespan and a standard 0-10V dimming driver. This floodlight has been tested in accordance with IESNA LM-79 and LM-80. It is suitable for wet locations.

• 60,000-hour LED lifespan
• Standard 0-10V dimming driver

Product Highlights

The RAB PIP15/D10 floodlight is a durable and efficient lighting solution suitable for various outdoor applications. It provides long-lasting performance and energy savings.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: PIP15/D10
• Country of Origin: CN - China

Technical Specifications

• Watts: 15W
• Color Temp: 5000K (Cool)
• Lumens: 2,401 Lumen
• Efficacy: 152 LPW
• Color Accuracy: 77
• L70 Lifespan: 60,000 Hours
• Type: Constant Current
• 120V: 0.14A
• 208V: 0.08A
• 240V: 0.07A
• 277V: 0.062A
• Input Watts: 15.8W
• UL Listed: Suitable for wet locations
• Driver: Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC, 120V: 0.14A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
• THD: 11.65% at 120V, 9.01% at 277V
• Power Factor: 98.6% at 120V, 88.6% at 277V
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Lifespan: 60,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Ambient Temperature: 104 degrees F
• Amperage: 0.06 Amp
• Average Rated Life: 60,000 hr
• Color Rendering Index: 77
• Color Temperature: 5000 K
• Correlated Color Temp: 5,000 K
• Lens Material: Frosted Acrylic
• Minimum Starting Temp: -40 degrees C
• Voltage: 120/277 Volt
• Wattage: 15
• Mounting Type: Adjustable Knuckle
• Color Temperature (Kelvin): 5000
• Housing Color: Bronze
• Lamp Type: LED
• Rated Lamp Life: 60000
• Applications: OUTDOOR
• Total Harmonic Distortion: 17% At 120V,18.1% At 277V
