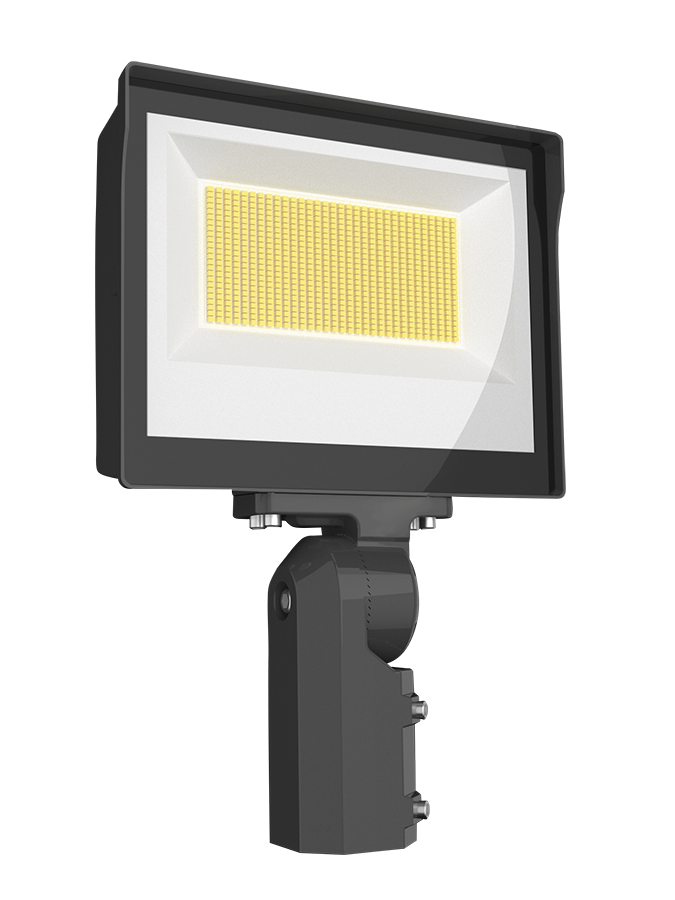

RAB LIGHTING Rab Lighting X17XFU140SF X17 Adjustable Floodlight 140/100/70W (Slipfitter)
RAB LIGHTING Rab Lighting X17XFU140SF X17 Adjustable Floodlight 140/100/70W (Slipfitter)

Rab Lighting X17XFU140SF X17 Adjustable Floodlight 140/100/70W (Slipfitter)

Brand: RAB LIGHTING
SKU: X17XFU140SF
Availability: In Stock

Ships same day if ordered by 12 pm
$197.12
$197.12
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Rab Lighting X17XFU140SF is a field-adjustable LED floodlight providing selectable wattage (140/100/70W) and selectable color temperatures (5000K, 4000K, 3000K). It delivers approximately 19,158 lumens at maximum output, mounts via a slipfitter for adjustable aiming, and is designed for outdoor flood and area illumination. The fixture uses a constant-current driver for 120-277 V, supports 0-10V dimming, and features a tempered glass lens, die-cast aluminum housing, IP65 rating, and 100,000-hour L70 LED life.

  • Field-adjustable wattage: 140/100/70W and field-selectable CCT: 5000K/4000K/3000K
  • High output (~19,158 lumens); constant-current driver, 120-277 V input; 0-10V dimming
  • Slipfitter mount for adjustable aiming; die-cast aluminum housing, tempered glass lens, IP65 wet-location rating

Product Highlights

Selectable 140/100/70W and 3000/4000/5000K CCT; ~19,158 lm; 120-277 V; 0-10V dimmable; IP65; 100,000-hour L70

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: X17XFU140SF
  • Country of Origin: China
Technical Specifications
Brand
Rab Lighting
MPN
X17XFU140SF
Model
X17 Field-Adjustable Floodlight
Lamp Type
LED
Wattage
Field-adjustable: 140/100/70W
Lumens
19,158 lm (approximate maximum)
Input Voltage
120-277 V
Color Temperature (CCT)
Field-adjustable: 3000K / 4000K / 5000K
Mounting Type
Slipfitter (for 2 3/8" tenon), 180 degree pivot
Dimming
0-10V dimming (standard)
Driver
Constant current, Class 1, 120-277 V, 50/60 Hz
IP Rating
IP65
Housing
Die-cast aluminum
Lens
Tempered glass
Surge Protection
Common mode 6 kV; differential mode 4 kV
L70 Lifespan
100,000 hours
Color Rendering Index (CRI)
81-83
Beam Spread
NEMA 7H x 7V
Tilt Increment
6 degree increments
EPA
1.35
Cold Weather Starting
-40 F (-40 C)
Ambient Temperature Ratings
Max power: 104 F (40 C); middle power: 118 F (48 C); low power: 131 F (55 C)
Listings / Certifications
UL Listed; IESNA LM-79 & LM-80 tested; DLC listed (individual SKU may vary)
Country of Origin
China
