Product Description

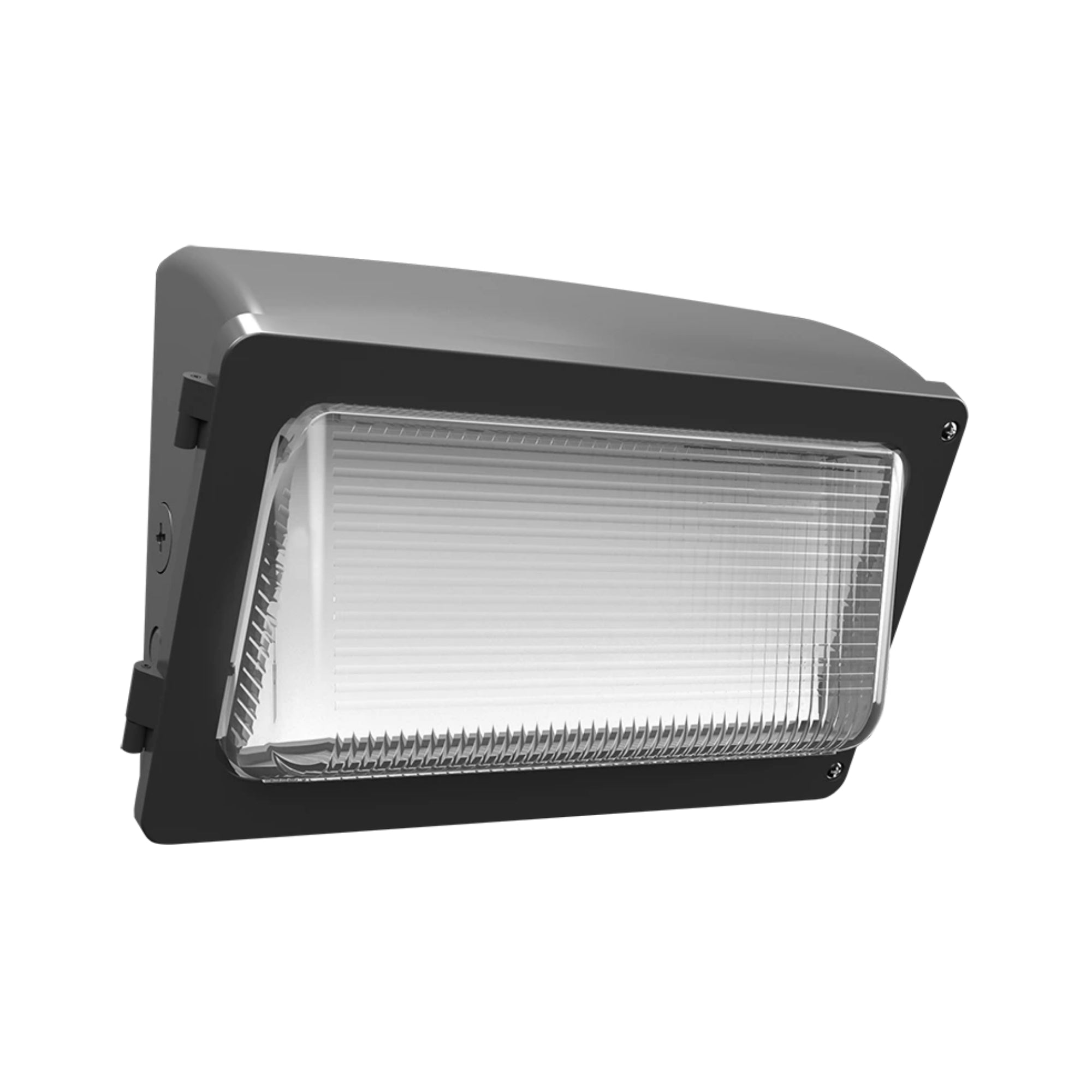

The RAB LIGHTING WPX2 is a field-adjustable LED wall pack designed for outdoor use. This unit allows users to select wattage and color temperature for customized light output. With an integrated photocell, it automatically adjusts based on ambient light conditions. The aluminum alloy housing and borosilicate glass lens ensure durability in various weather conditions.
- Field adjustable light output options: 80W, 60W, 40W
- Selectable color temperature: 3000K, 4000K, 5000K
- Includes 0-10V dimming capability
Product Highlights
This wall pack is suitable for wet locations with an ingress protection rating of IP65.
Product Information
Standard Information
-
Brand: RAB LIGHTING
-
Manufacturer Part Number: WPX2
Technical Specifications
-
Input Voltage: 120-277V
-
Wattage: 80W/60W/40W
-
Lumens: 5,789-11,500 lm
-
Efficacy: 134.1-152.6 lm/W
-
Color Temperature: 3000K, 4000K, 5000K
-
Color Accuracy: 82-84 CRI
-
L70 Lifespan: 100,000 hours
-
Dimming: 0-10V
-
IP Rating: IP65
-
Operating Temperature: -40°F to 104°F
-
Housing: Aluminum alloy
-
Lens: Prismatic, heat-resistant borosilicate glass
-
Mounting Type: Wall Mount
-
Photocell: Integrated photocell with on/off switch
-
Surge Protection: 4 kV
-
Dimensions: 14 inches L x 4 7/8 inches W x 9 1/4 inches H
-
Color: Bronze
-
Certifications: UL Listed for wet locations, DLC Listed
