Rab Lighting WPLED104 Wallpack 104W 4 x 26W (Replacement WPLEDL)

Brand: RAB LIGHTING
SKU: WPLED104
Availability: Out Of Stock
$953.39
$953.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

RAB Lighting WPLED104 is a 104W LED wallpack for outdoor wet-location use. The fixture contains four multi-chip LEDs producing approximately 14,159 lumens at 5000 K with a CRI of 71 and an L70 life of 100,000 hours. It uses a constant-current driver (driver input ~107.5 W; fixture input listed 113 W) compatible with 120–277 VAC, includes 4 kV surge protection, and has a precision die-cast aluminum housing with a tempered glass lens and IP66 enclosure.

  • 104 W LED wallpack delivering approximately 14,159 lumens at 5000 K with CRI 71 and L70 = 100,000 hours
  • Constant-current driver; driver input ~107.5 W (fixture input listed 113 W); 120–277 VAC input; 4 kV surge protection
  • Precision die-cast aluminum housing with tempered glass lens, IP66 enclosure, mounts with die-cast wall bracket and multiple 1/2 inch conduit entries

Product Highlights

Outdoor 104W LED wallpack, ~14,159 lm, 5000 K, IP66, constant-current driver, L70 = 100,000 hours

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: WPLED104
Technical Specifications
Brand
RAB Lighting
Manufacturer Part Number
WPLED104
Model
WPLED
Product Type
Wallpack
Lamp Wattage
104 W
Input Power
107.5 W (driver); 113 W (fixture listed)
Input Voltage
120–277 VAC
Input Current
0.95 A at 120 V; 0.59 A at 208 V; 0.51 A at 240 V; 0.44 A at 277 V
Luminous Flux
14,159 lumens (catalog)
Efficacy
131.7 lm/W
Color Temperature
5000 K
Color Rendering Index (CRI)
71
L70 Life
100,000 hours
Driver Type
Constant current
Surge Protection
4 kV
Enclosure Rating
IP66
Certifications
UL Listed; DLC
Housing Material
Precision die-cast aluminum
Lens Type
Tempered glass
Reflector Material
Specular vacuum metalized polycarbonate
Gasket Material
High temperature silicone
Mounting Type
Die-cast aluminum wall bracket with five 1/2 inch conduit entries

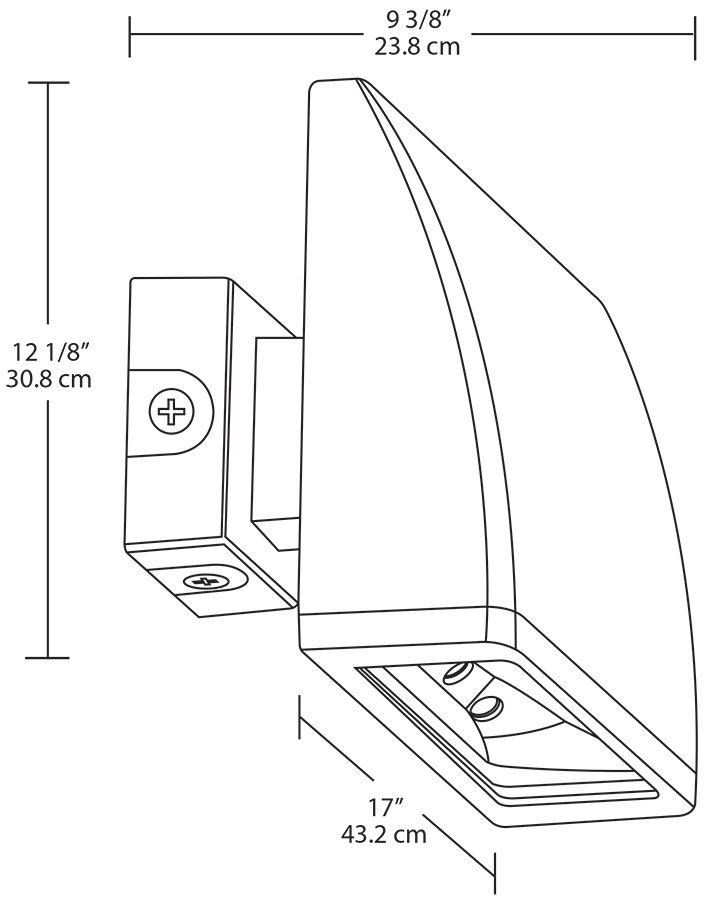

Dimensions
17 in L x 9.375 in W x 12.125 in H
Operating Temperature
Starting to -40 °F (-40 °C); operating up to 104 °F (40 °C)
LEDs
Four multi-chip high-output LEDs
Power Factor
99.6% at 120 V; 92.4% at 277 V
Total Harmonic Distortion
5.22% at 120 V; 7.4% at 277 V
Dimming
0-10V dimming capable (dims to 10%)
Standards
ANSI C78.377; IESNA LM-79/80; LEED
Replacement Part Number
WPLEDL
Sub-Category
Outdoor Wall Light
